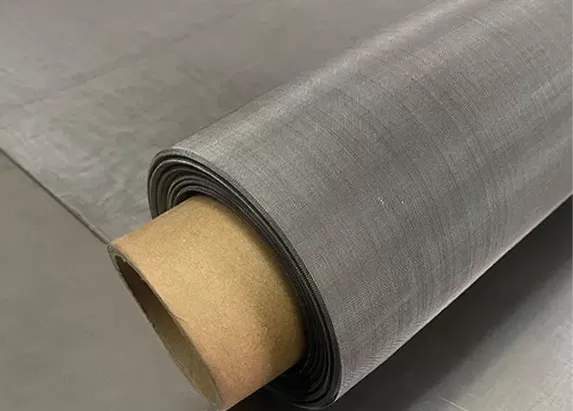

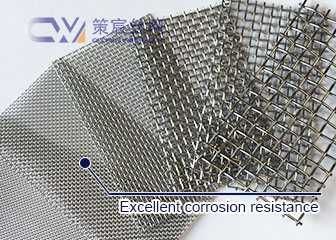

Inconel Wire Mesh
Inconel alloy wire mesh is highly suitable for extreme environments, including conditions involving high temperatures and corrosive media. In high-temperature settings, these alloys exhibit a combination of high strength, good ductility, and excellent resistance to creep and oxidation.
Consequently, they hold immense value in industries such as aerospace, chemical processing, and marine engineering. For instance, nuclear reactors and gas turbines represent typical application areas for these alloys.

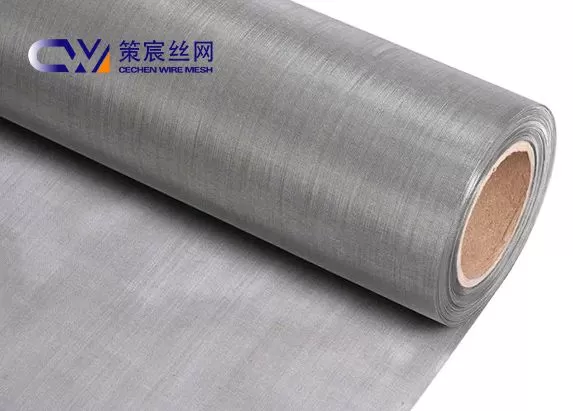

Inconel wire mesh, also known as inconel woven wire mesh, is manufactured from nickel-chromium alloy wire. Inconel mesh is a high-performance nickel-based alloy woven mesh designed for extreme temperature and corrosive environments. Compared with ordinary stainless steel mesh, Inconel mesh offers superior oxidation resistance, heat resistance, and mechanical strength.
● Material Grades: Inconel 600 Wire Mesh, Inconel 601 Wire Mesh, Inconel 625 Wire Mesh, Inconel 718 Wire Mesh
● Mesh Count: 1 Mesh – 600 Mesh
● Wire Diameter: 0.025 mm – 8.0 mm
● Type: Woven, Knitting, Punching, Mesh Sheet/Roll, Crimped, Expanded or Customized
● Width: 0.5 m – 3 m
● Roll Length: 30 m Standard or Customized
● Surface: Bright Annealed
● Custom Service: Available
 |  |  |

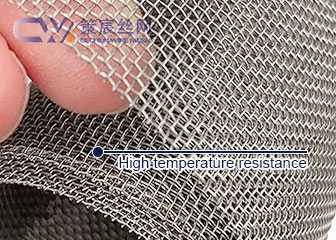

● Temperature resistance: up to 1093°C (2000°F)
● Excellent resistance to oxidation and carburization
● Superior performance in chloride-rich seawater environments
● High resistance to stress corrosion cracking (SCC)
● Stable mechanical strength under long-term heat exposure
 |  |  |  |

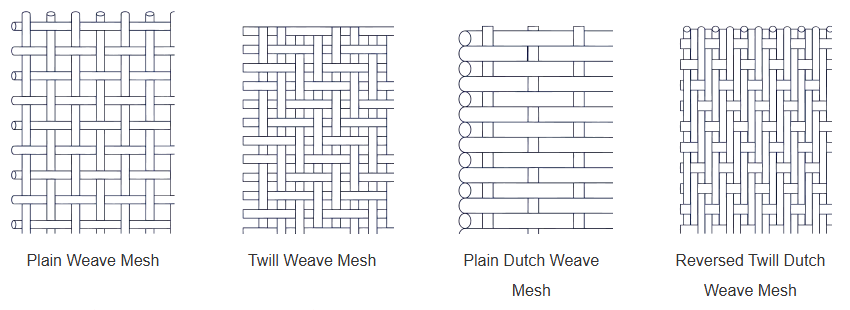

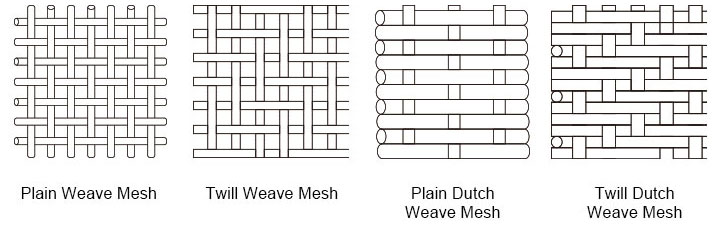

| Plain Weave Mesh | Twill Weave Mesh | Plain Dutch Weave Mesh | Twill Dutch Mesh Weave Mesh |
 |  |  |

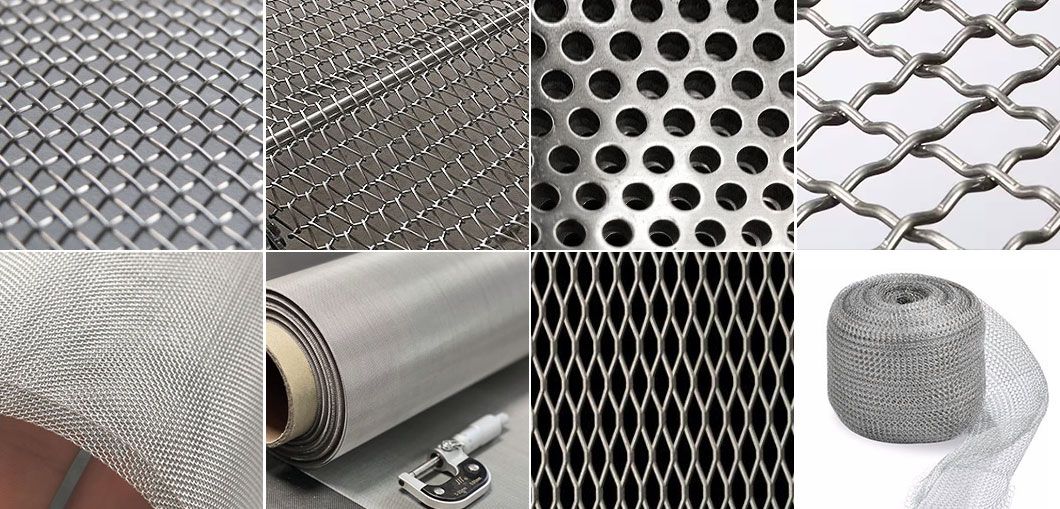

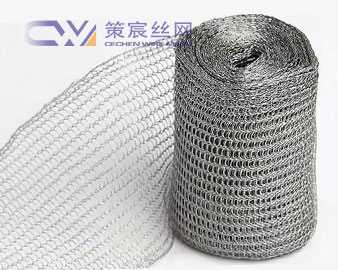

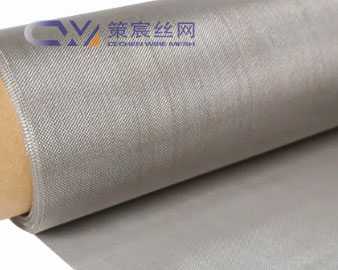

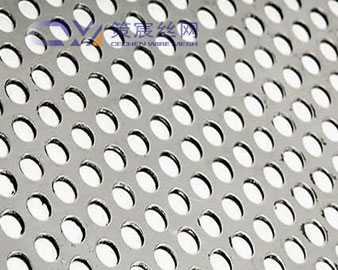

| Inconel Woven Wire Mesh | Inconel Knitted Wire Mesh | Inconel Perforated Metal |
 |  |  |

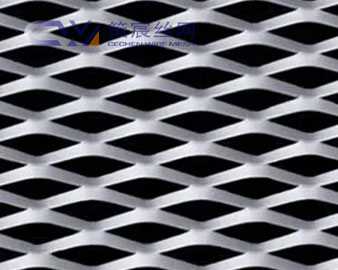

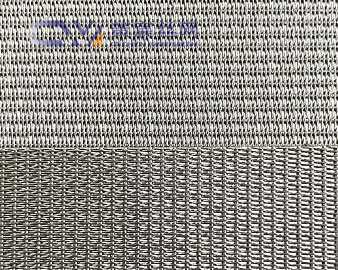

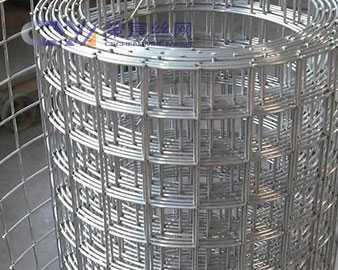

| Inconel Expanded Metal | Inconel Welded Wire Mesh | Inconel Sintered Wire Mesh |
| Inconel Alloy Wire Mesh Supplier | ||||
| Grade | Nickel (Ni) | Chromium (Cr) | Iron (Fe) | Key Element |
| Inconel 600 Wire Mesh | ≥72% | 14–17% | 6–10% | Excellent oxidation resistance |
| Inconel 601 Wire Mesh | 58–63% | 21–25% | Balance | High heat resistance |
| Inconel 625 Wire Mesh | ≥58% | 20–23% | <5% | Excellent corrosion resistance |
| Inconel 718 Wire Mesh | 50–55% | 17–21% | Balance | High strength alloy |
● Aerospace: used for high temperature gas filtration and engine components.
● Petrochemical: used for filtration, reactor support and heat exchange in highly corrosive environments.
● Nuclear energy industry: used as filtering, cooling and shielding materials in nuclear reactors.
● Metallurgical industry: used for filtration in high temperature furnaces and metal extraction processes.
● High temperature gas/liquid filtration: used for filtration in industrial waste gas and chemical processes.
● Chemical reactors: used as support and filtration materials.
● Marine environment: suitable for equipment such as offshore oil and gas platforms and submarine pipelines.
When purchasing Inconel wire mesh, consider:
● Alloy grade selection
● Mesh size and filtration accuracy
● Wire diameter strength requirements
● Operating environment conditions
● Required service life
● Custom fabrication needs
| Selecting the Appropriate Inconel Wire Mesh | |
| Application Condition | Recommended Grade |
| High heat oxidation | Inconel 600 / 601 |
| Marine corrosion | Inconel 625 |
| High stress/aerospace | Inconel 718 |
We provide OEM/ODM customization, small batch production, and large-scale industrial supply.
Hebei Cechen New Materials Co., Ltd. is a professional metal wire mesh manufacturer and supplier with 40 years of industry experience. We are equipped with advanced production facilities and maintain extensive stock inventory. We offer a wide range of models—including Inconel 600 wire mesh, Inconel 601 wire mesh, Inconel 625 wire mesh, and Inconel 718 wire mesh — and are capable of providing customized production tailored to specific client requirements regarding chromium-nickel content, wire diameter, mesh aperture size, and overall specifications.
● Over 40 years of wire mesh manufacturing experience
● Strict quality inspection before shipment
● Stable mesh opening and precise weaving
● Support for custom sizes and alloy grades
● Fast delivery and global export service
● OEM & ODM service available

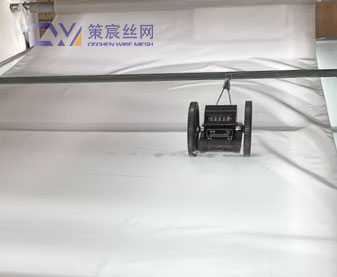

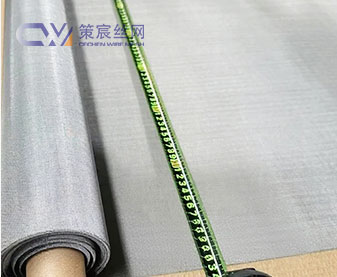

We implement a strict quality management system throughout the entire production process of Inconel Wire Mesh, from raw material selection to final inspection and packaging. Each batch is traceable to ensure consistent performance, dimensional accuracy, and compliance with international industrial requirements.
 |  |  |
● Raw Material Verification

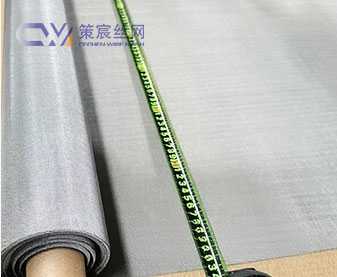

● Wire Diameter & Mesh Accuracy Testing
● Mechanical Property Testing

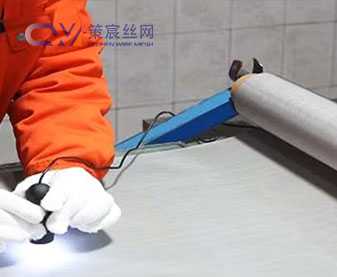

● Surface Quality Inspection
● High-Temperature Performance Testing
● Quality Assurance System
● Final inspection before packaging (FQC)
● Third-party inspection support (SGS, BV, TÜV, etc.)
Inconel wire mesh is manufactured under internationally recognized standards. Each production batch can be supplied with material test reports (MTR), chemical composition reports, and third-party inspection certificates (SGS/BV).
● ASTM B166 / ASTM B168 – Nickel-Chromium alloy material standards
● ISO 9001:2015 – Quality Management System certification
● ASTM E2016 – Wire mesh specification and testing standards
● DIN EN 10095 – Heat-resistant nickel alloys standard
● RoHS Compliance – Restriction of hazardous substances (upon request)
We strictly implement quality control from raw materials to finished products, and as a direct manufacturer, we can provide you with more competitive prices and more flexible supply methods. In addition, we provide a full range of after-sales services to ensure that you can get reliable support and guarantee after receiving the product, and solve any problems during use. If you are looking for a high-quality Inconel mesh supplier, please feel free to contact us. We will wholeheartedly provide you with high-quality, high-performance products and satisfactory services!
1. What is Inconel wire mesh used for?
It is used for high-temperature filtration and corrosion-resistant applications in aerospace, chemical, and marine industries.
2. What is the temperature limit of Inconel mesh?
It can withstand temperatures up to approximately 1093°C (2000°F).
3. What is the difference between Inconel 600 and 625 mesh?
Inconel 600 is better for heat resistance, while 625 offers superior corrosion resistance in seawater environments.
4. Can Inconel wire mesh be customized?
Yes, it can be customized in mesh size, wire diameter, width, and alloy grade.
5. Is Inconel mesh better than stainless steel mesh?
Yes, Inconel performs significantly better in high-temperature and corrosive environments compared to stainless steel.
