Material: 304/304L stainless steel wire mesh
Diameter: 0.016-5mm or customized
Size: 1-2800 mesh or customized
Type: Woven/Welded
Standard: AISI, ASTM, JIS, DIN, EN, BS
Weaving method: Plain Weave, Twill Weave, Dutch Weave, Reverse Dutch Weave, 5 Heddle Weave, Crimped.
Lead Time: Stock or 3-10 days or according to quantity
Our Advantage:
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

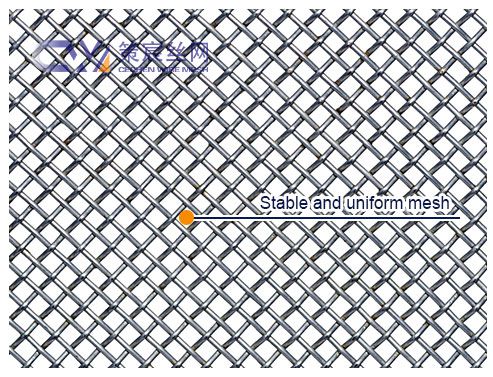

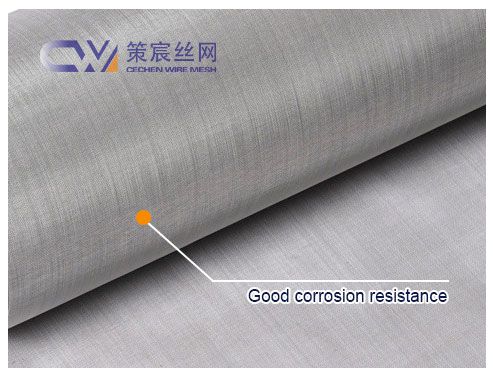

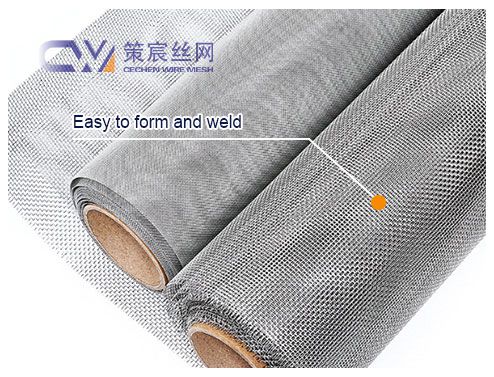

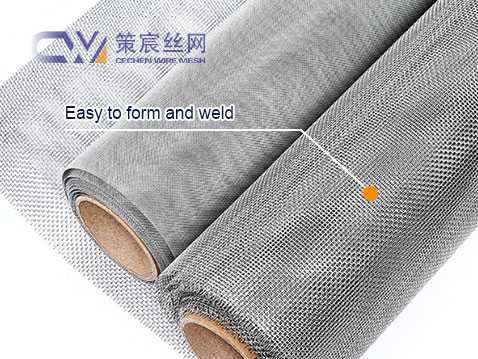

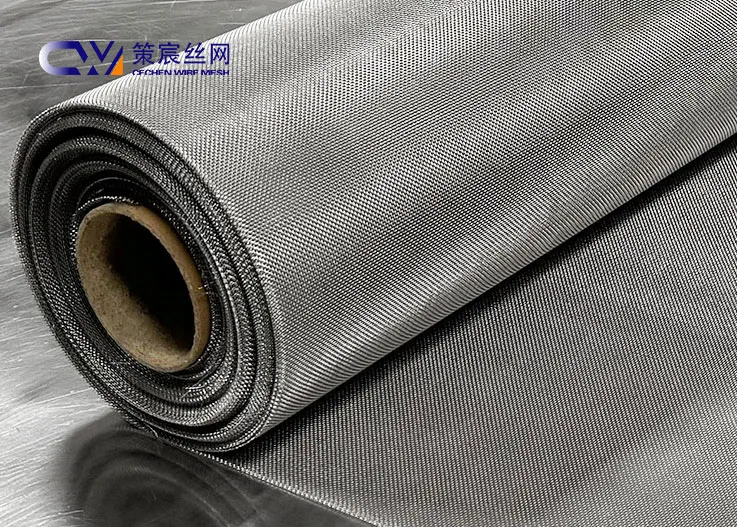

304/304L Stainless steel mesh is a commonly used material in industrial and construction applications, offering excellent corrosion resistance, strength, and good processing properties. As a professional stainless steel wire mesh manufacturer, we specialize in producing high-quality 304 and 304L stainless steel wire mesh. With advanced production equipment and a rigorous quality control system, we ensure that every piece of wire mesh has stable performance and an excellent service life. Our wire mesh uses premium stainless steel wire with uniform mesh size and precise wire diameter, combining corrosion resistance, high-temperature resistance, and excellent mechanical strength to meet the high standards required for various industrial and engineering applications.
| Steel Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18~20 | - | 8~10.5 |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18~20 | - | 9.0~13 |
Grade 304L (L= low carbon) is the same as the 304 except it has an extra-low-carbon analysis, the advantage of which is that it precludes any harmful precipitation in the 800º F to 1500º F range, such as might otherwise occur in welding heavier sections.

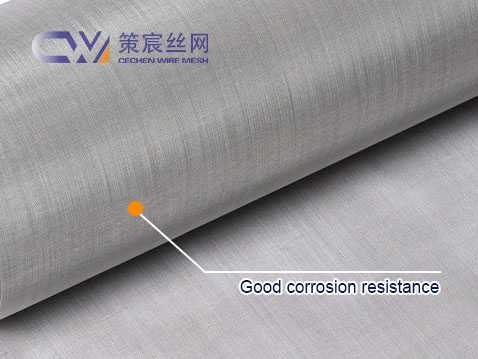

● High-Quality Material – Made from premium 304/304L stainless steel, offering excellent corrosion and oxidation resistance.

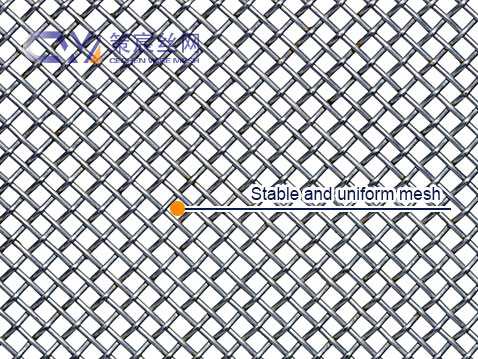

● Precise Weaving – Uniform wire diameter and consistent mesh openings ensure reliable filtration, separation, and mechanical stability.
● Optimized Structure – Strong, flexible mesh maintains shape under vibration, impact, or long-term load conditions.
● Enhanced Weldability (304L) – Low-carbon 304L reduces carbide precipitation, enabling stable welding and secondary processing.
● Durable in Harsh Environments – Retains strength and performance under high temperatures, chemical exposure, or humid conditions.
Our 304 and 304L stainless steel wire mesh boasts superior corrosion resistance, high-temperature resistance, and tensile strength, maintaining its performance even in harsh environments. We provide customers with stable and reliable stainless steel wire mesh, reducing replacement and maintenance costs and improving production and engineering efficiency. Our factory-direct supply model ensures consistent specifications for every batch of wire mesh, and we can customize to meet customer needs, helping them quickly obtain suitable solutions while reducing procurement and usage risks.
We offer a variety of high-precision weaving methods, including plain weave, twill weave, Dutch weave, reverse Dutch weave, five-harness weave, and crimped weave. Each weaving method undergoes strict process control to ensure uniform wire diameter, stable mesh size, and imparts different performance characteristics to the wire mesh:

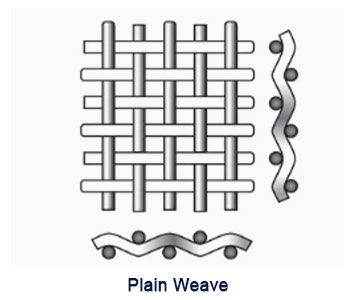

● Plain weave: Balanced structure, suitable for general screening and filtration, with stable and reliable performance.

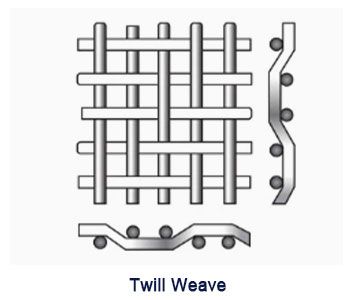

● Twill weave: Enhances wire mesh strength and abrasion resistance, suitable for high-load environments.

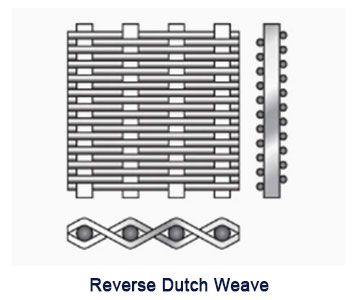

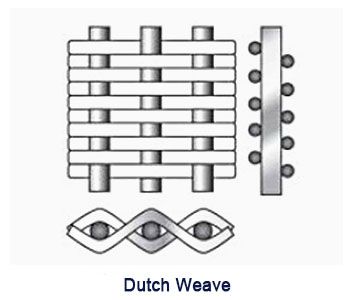

● Dutch weave/reverse Dutch weave: Improves wire mesh precision and filtration efficiency, suitable for fine separation.
● Five-harness weave: Provides higher pressure resistance and structural stability, suitable for special industrial applications.
● Crimped weave: Enhances surface friction and overall rigidity, meeting special protective or decorative needs.
Through optimized weaving processes, our wire mesh not only possesses excellent corrosion resistance, high-temperature resistance, and tensile strength, but also maintains stable shape and performance over long periods under complex or high-load environments. Customers can flexibly choose the most suitable weaving method according to different application needs, thereby improving screening, filtering or protection effects and reducing maintenance costs.
Common Specifications
| Mesh (inches) | Wire Diameter (mm) | Opening Size (mm) |
| 4 | 2.0 – 5.0 | 5 – 50 |
| 5 | 1.8 – 4.5 | 4.5 – 40 |
| 6 | 1.5 – 3.0 | 3 – 15 |
| 8 | 1.2 – 2.5 | 2 – 10 |
| 10 | 1.0 – 2.0 | 1 – 8 |
| 12 | 0.8 – 1.5 | 0.7 – 5 |
| 15 | 0.7 – 1.2 | 0.5 – 4 |
| 20 | 0.5 – 1.0 | 0.4 – 2 |
| 25 | 0.4 – 0.8 | 0.3 – 2 |
| 30 | 0.3 – 0.7 | 0.25 – 1.5 |
| 35 | 0.3 – 0.6 | 0.25 – 1.5 |
| 40 | 0.3 – 0.6 | 0.2 – 1.2 |
| 50 | 0.25 – 0.5 | 0.2 – 1.0 |
| 60 | 0.2 – 0.45 | 0.15 – 1.0 |
| 70 | 0.2 – 0.4 | 0.12 – 0.8 |
| 80 | 0.2 – 0.35 | 0.12 – 0.6 |
| 90 | 0.15 – 0.3 | 0.1 – 0.5 |
| 100 | 0.15 – 0.28 | 0.08 – 0.45 |
| 120 | 0.12 – 0.25 | 0.07 – 0.4 |
| 150 | 0.10 – 0.20 | 0.06 – 0.3 |
| 180 | 0.08 – 0.18 | 0.05 – 0.25 |
| 200 | 0.08 – 0.15 | 0.05 – 0.2 |
| 250 | 0.07 – 0.12 | 0.04 – 0.15 |
| 300 | 0.05 – 0.10 | 0.03 – 0.12 |
| 350 | 0.05 – 0.08 | 0.02 – 0.10 |
| 400 | 0.05 – 0.07 | 0.02 – 0.08 |
Notes:
● Mesh refers to the number of openings per inch. Higher mesh requires finer wire diameter.
● Opening size is a reference range; exact dimensions can be customized according to customer requirements.
● All specifications are available with custom width, length, and surface treatment.

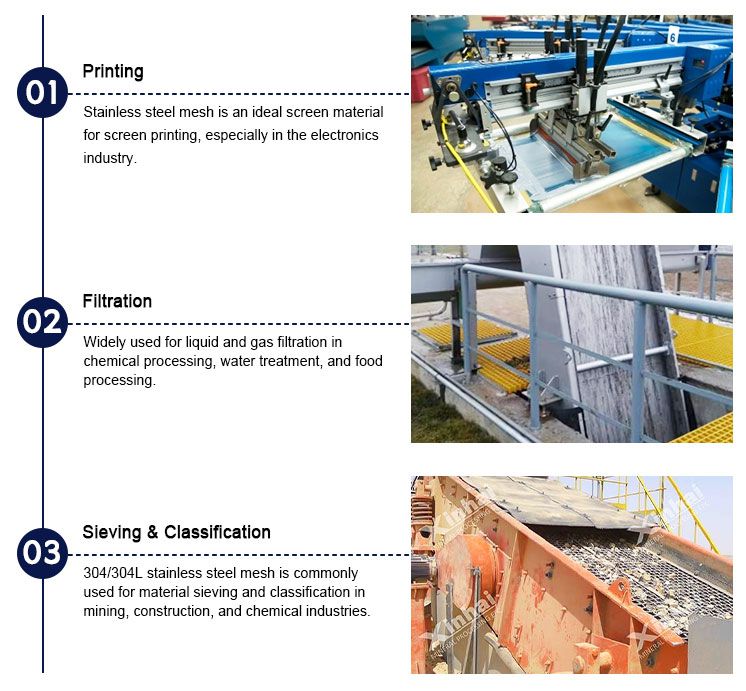

Industries and Applications
● Printing: Stainless steel screen printing has become the most ideal screen material for the screen printing industry, especially the electronics industry.
● Filtration: Stainless steel mesh is widely used for liquid filtration and gas filtration in industries such as chemical processing, water treatment, and food processing.
● Sieving: In mining, construction, and chemical industries, 304/304L stainless steel mesh is often used for material sieving and classification.
● Construction and Decoration: Stainless steel mesh is used in building facades, window screens, ceilings, partitions, etc., offering both aesthetic appeal and durability.
● Protection and Isolation: Stainless steel mesh is used for protection and isolation, such as animal fences, machinery protection, and electrical shielding.
● Aerospace and Military: Due to its excellent mechanical properties and corrosion resistance, 304/304L stainless steel mesh is also used in military and aerospace applications, such as structural components, filters, and shielding.

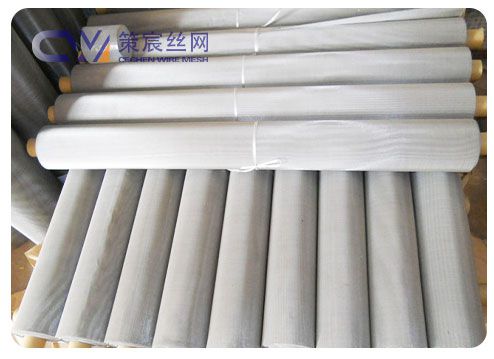

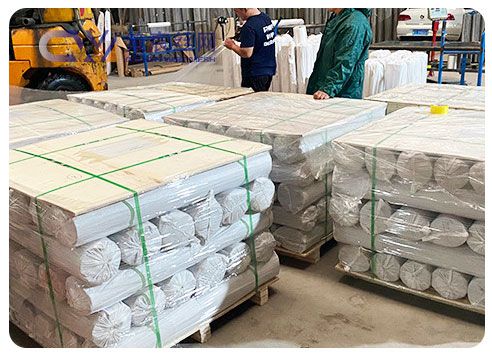

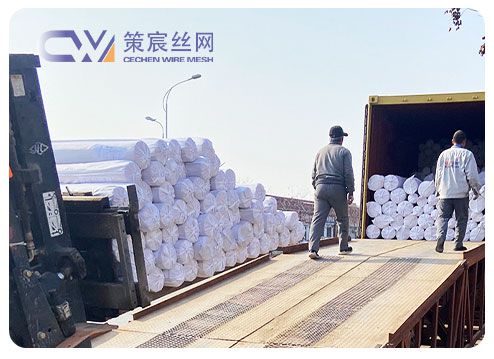

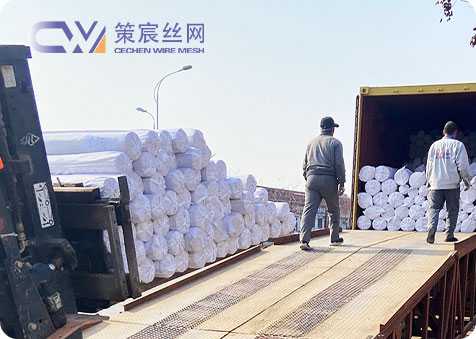

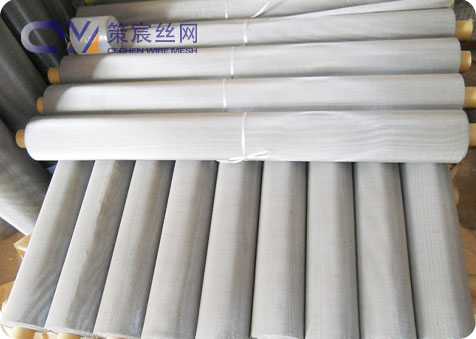

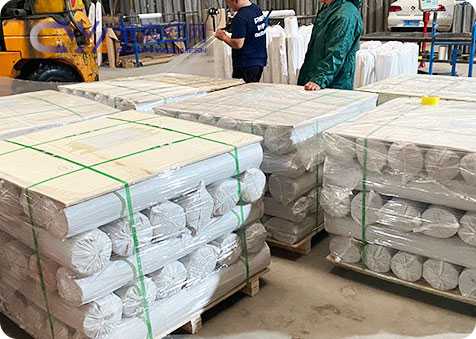

Packaging
● The inner layer uses moisture-proof paper to effectively prevent moisture intrusion, while the outer plastic film provides dustproof, waterproof, and scratch-resistant protection.
● The screen mesh roll is supported by paper tubes and packed into a sturdy wooden crate to ensure safe transportation and prevent deformation or damage.
● We can provide customized packaging solutions according to customer needs, including size, materials, and special protection requirements, to meet various transportation and storage environments.
Why Choose Cechen Wire Mesh Manufacturer
Factory Direct Supply
● As a professional manufacturer, Cechen Wire Mesh produces all products in-house, ensuring consistent quality and reliable supply without intermediaries.
Advanced Weaving Technology
● Equipped with high-precision weaving machines supporting plain weave, twill weave, Dutch weave, reverse Dutch weave, five-harness satin weave, and embossing, we provide uniform, stable wire mesh with precise mesh counts.
Wide Product Range & Customization
● We offer 304 & 304L stainless steel wire mesh in a full range of mesh counts (4–2800 mesh), wire diameters, and sizes, and support customized specifications to meet unique industrial requirements.
High Production Capacity & Timely Delivery
● We have over 80 advanced looms, enabling us to efficiently handle large-volume and customized orders and ensure on-time delivery.
Strict Quality Control & Certifications
● Our production follows ISO 9001 quality management system standards. Each batch is thoroughly inspected to ensure consistent dimensions, strength, and performance. We also support customer and third-party factory audits.
Reliable After-Sales Service
● Our team provides professional support for technical consultation, order tracking, and post-sale assistance, ensuring a smooth and worry-free experience for every client.

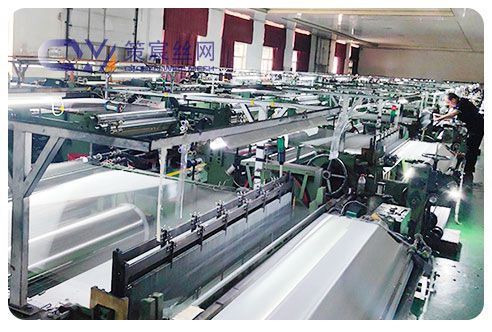

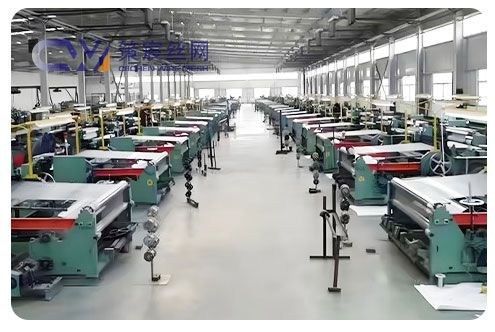

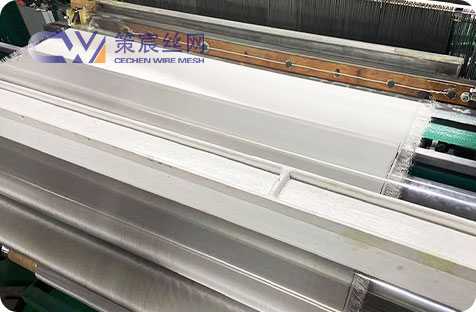

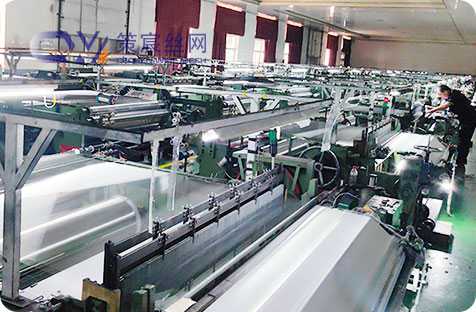

Factory Workshop

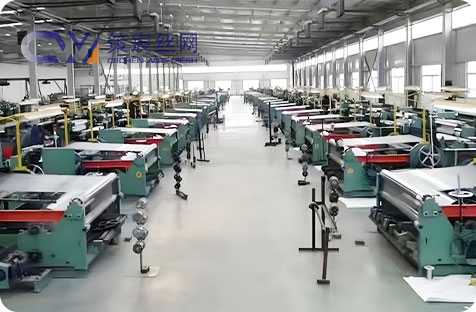

We are a professional factory of 304 and 304L stainless steel wire mesh, boasting a modern, standard workshop covering over 10,000 square meters. Our workshop is equipped with 80 high-precision weaving machines, encompassing plain weave, twill weave, Dutch weave, reverse Dutch weave, five-harness weave, and crimping processes. This allows us to meet various production needs from low mesh count to high precision mesh count, ensuring efficient delivery of large-volume orders.

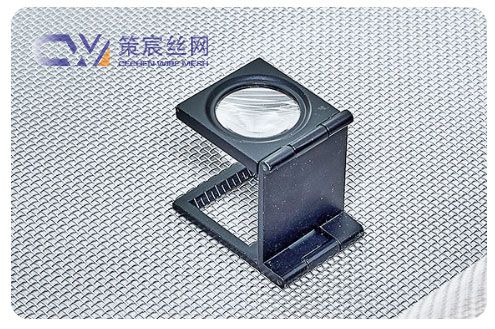

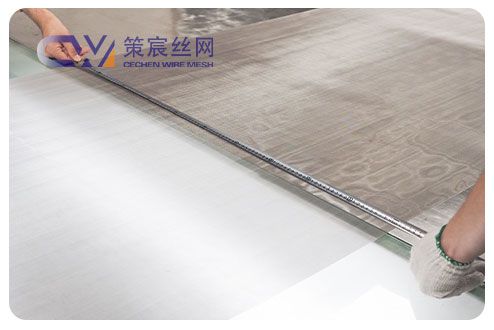

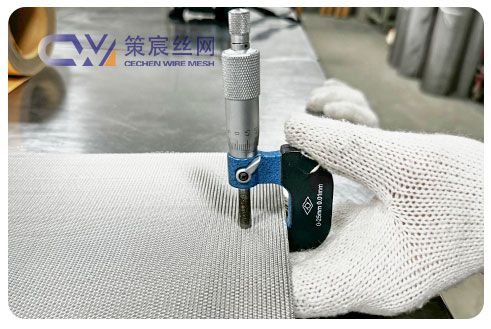

Quality inspection items

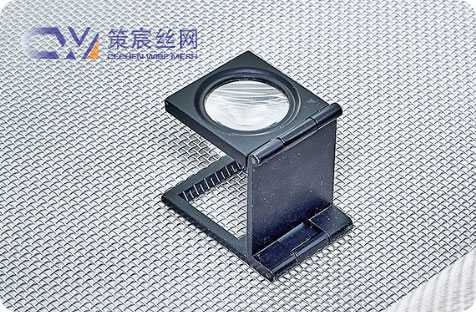

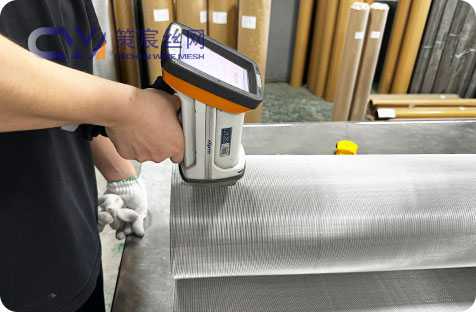

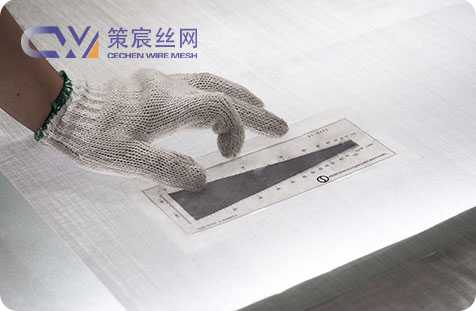

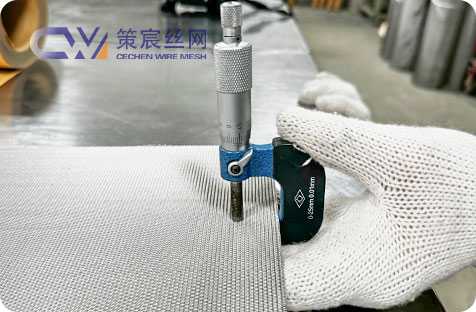

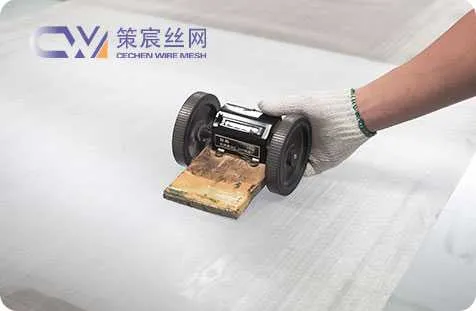

At CeChen Wire Mesh, we implement comprehensive quality control across the entire production process. Each batch undergoes inspection for wire diameter, mesh size, weaving structure, surface quality, and strength to ensure precise specifications, stable structure, and reliable performance. Flatness, roll condition, and packaging are also checked to guarantee safe delivery, providing customers with high-quality, dependable wire mesh products.
CE & SGS Certification
Strictly adhering to international quality standards, our products have passed CE, SGS, and multiple third-party testing and certifications, and meet the requirements of international standards such as ISO 9001, ASTM, EN, and JIS. We guarantee precise wire mesh specifications and stable performance, and support customer factory visits and third-party audits to ensure the high quality and reliability of every batch of products.
