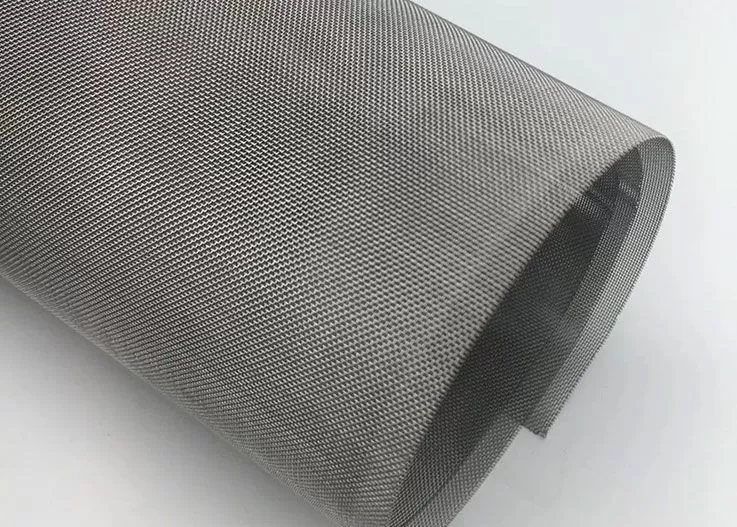

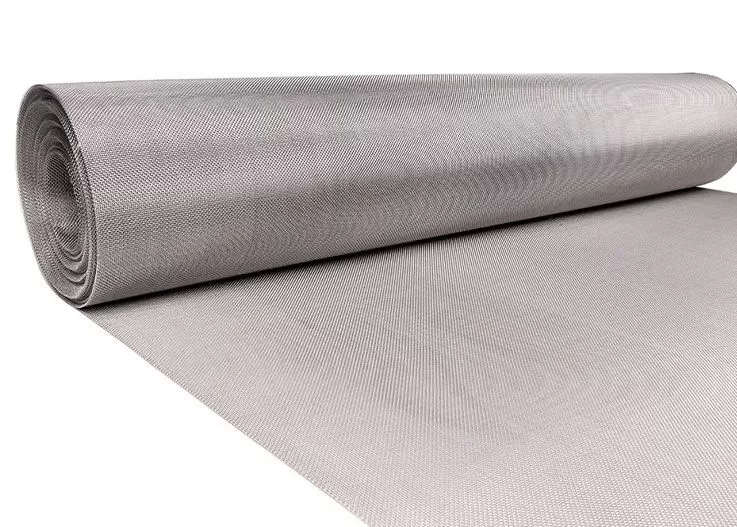

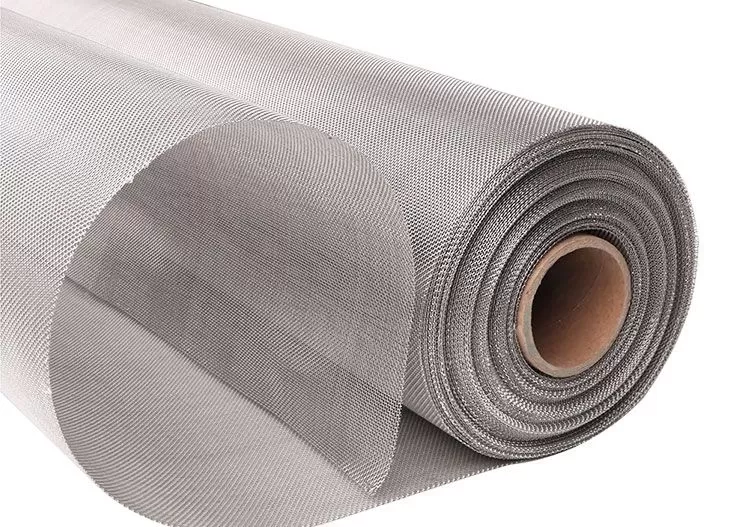

Product Name: 310S Stainless Steel Wire Mesh
Material: AISI 310S Stainless Steel
Weaving Method: Plain Weave / Twill Weave / Close Weave / Reverse Close Weave
Wire Diameter Range: 0.02 – 5.0 mm
Mesh Count Range: 1 – 400 Mesh
Temperature Resistance: ≤ 1000℃ (Long-term)
Supply Form: Rolls, Sheets, Cut to Length
Customisation Available: Yes (Supports size/mesh count/wire diameter/weaving method)
Our Advantage:
Support Customization
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

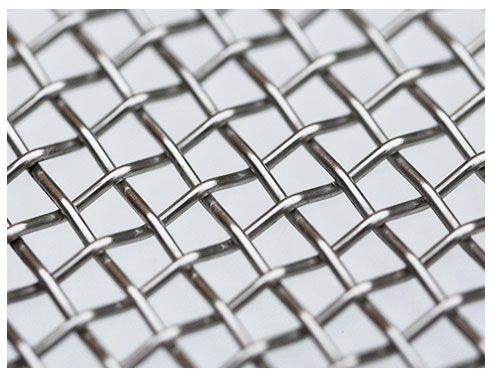

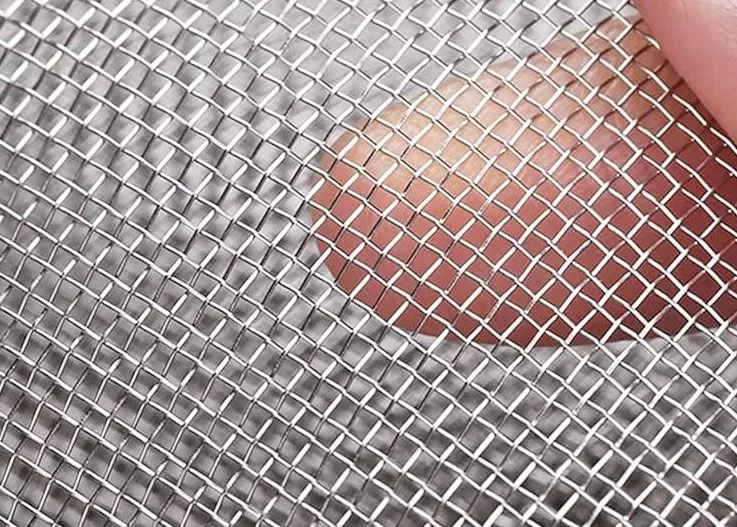

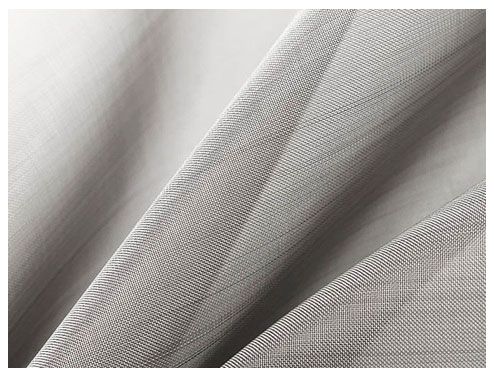

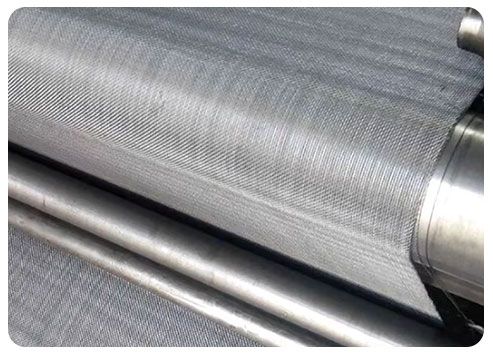

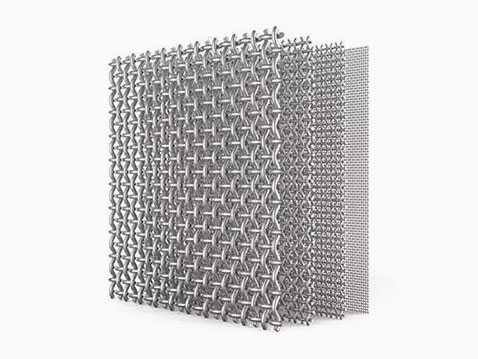

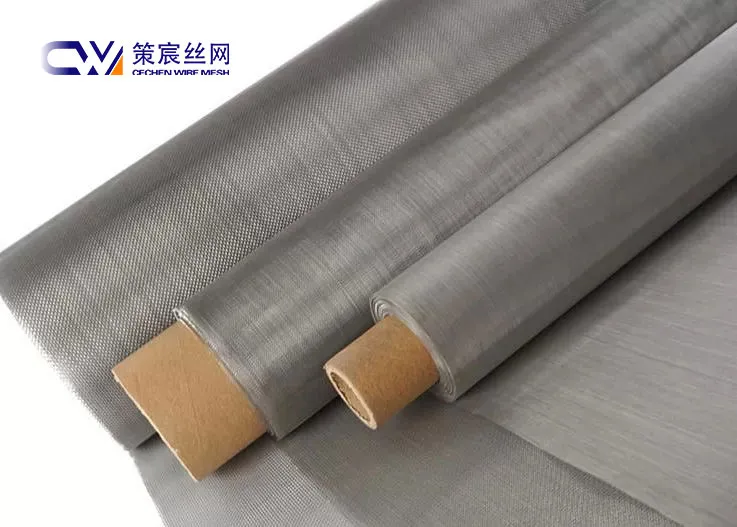

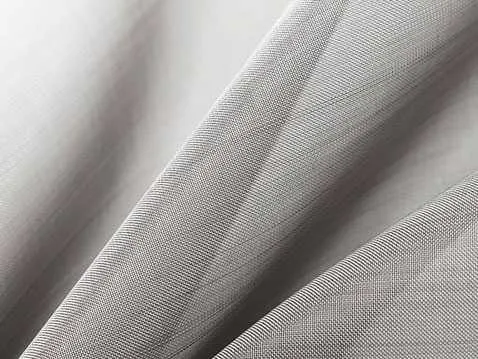

310S stainless steel wire mesh is a high-alloy austenitic stainless steel woven mesh. Due to its excellent high-temperature resistance, oxidation resistance, and structural stability, it is widely used in long-term high-temperature and harsh working environments. 310S stainless steel contains a high proportion of chromium (Cr) and nickel (Ni), maintaining excellent mechanical strength and corrosion resistance even at high temperatures. It is a high-end heat-resistant material choice that is difficult to replace with ordinary 304 and 316 stainless steel wire mesh.
310S Stainless Steel Wire Mesh Chemical Composition | |||||||
| C | Cr | Ni | Mn | Si | P | S | Fe |
| ≤0.08% | 24–26% | 19–22% | ≤2% | ≤1.5% | ≤0.045% | ≤0.03% | Balance |
As a professional stainless steel wire mesh manufacturer, we can reliably supply high-quality 310S stainless steel wire mesh, ensuring precise wire diameter, uniform mesh size, and stable weaving structure, suitable for industrial systems operating at continuous high temperatures.
310S Stainless Steel Wire Mesh Specification | |
| Property | Specification |
| Material | 310S Stainless Steel |
| Wire Diameter | 0.02 – 5.0 mm |
| Mesh Count | 1 – 400 Mesh |
| Aperture | Customizable |
| Weaving Type | Plain, Twill, Dutch, Reverse Dutch |
| Width | Standard or Customized |
| Length | Customized |
| Surface Finish | Bright / Natural |

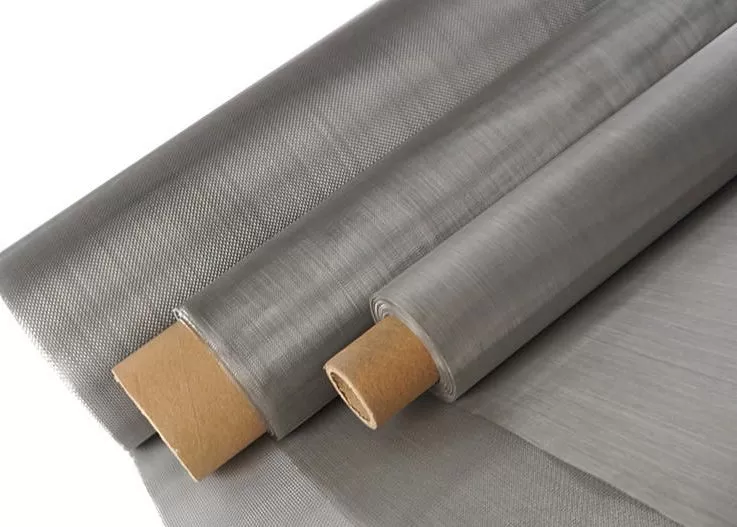

| Supply Form | Roll, Sheet, Cut Pieces |
| Temperature Resistance | ≤1000°C (Continuous) |

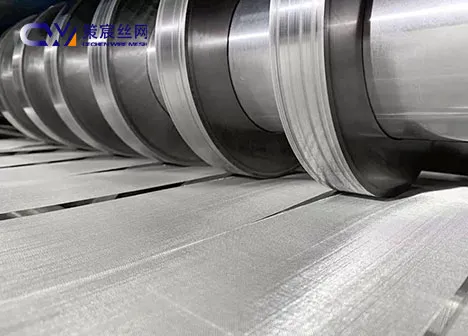

| Processing Service | Cutting, Bending, Welding, Punching |

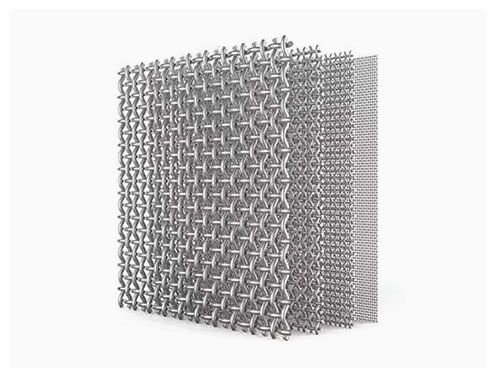

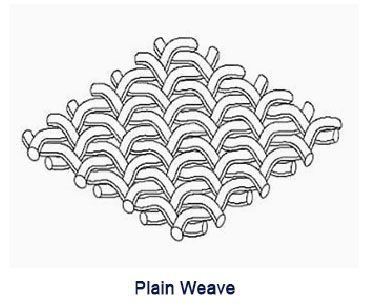

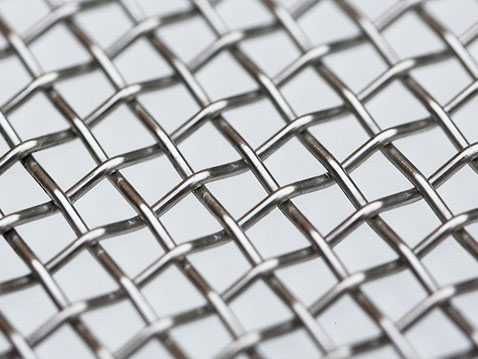

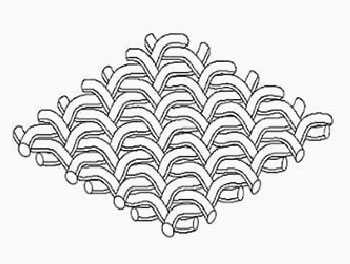

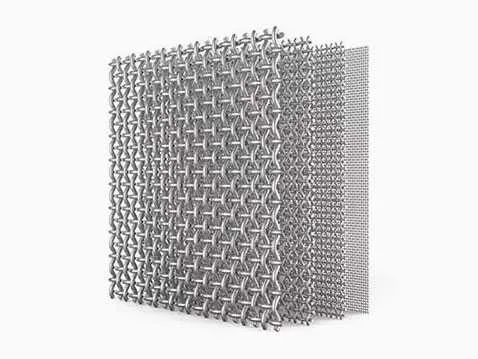

● Plain Weave: Stable structure, suitable for general filtration and protection.

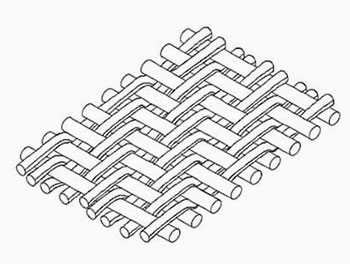

● Twill Weave: Suitable for finer filament diameters and high mesh counts.

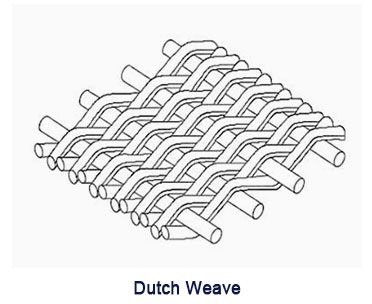

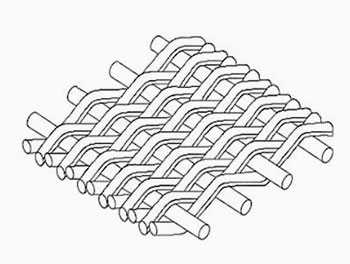

● Dutch Weave: High filtration accuracy.

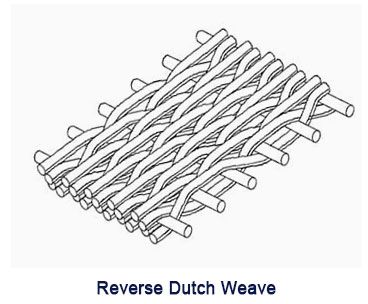

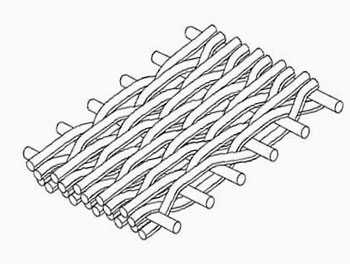

● Reverse Dutch Weave: High-strength, high-flow filtration applications.
● High Temperature Resistance – can withstand continuous service up to 1000°C
● Excellent Oxidation Resistance – high chromium and nickel content maintains stability in high-temperature air and mildly corrosive gases
● Stable Mesh Structure – uniform wire diameter, strong and durable
● Low Carbon Design – reduces intergranular corrosion for long-term high-temperature use
● Good Workability – supports cutting, bending, welding, and custom specifications
310S Stainless Steel Woven Mesh is the ideal choice for high-temperature and corrosive scenarios including:

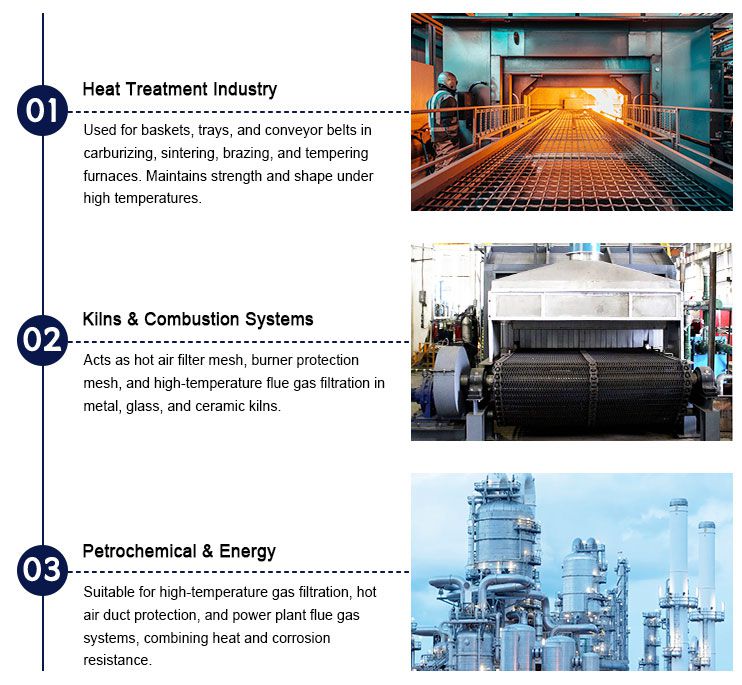

● Heat Treatment Industry: Used for baskets, trays, and conveyor belts inside carburizing furnaces, sintering furnaces, brazing furnaces, and tempering furnaces. Withstands high-temperature workpieces and atmospheres without deforming or embrittling.
● Kilns & Combustion Systems: Serves as hot air filter mesh, burner nozzle protection mesh, and primary filter media for high-temperature flue gas in smelting furnaces, glass kilns, and ceramic kilns.
● Petrochemical & Energy: Applied in systems for high-temperature gas filtration (e.g., catalytic cracking units), hot air duct protection, and power plant flue gas treatment, offering dual protection against corrosion and heat.
● Automotive & Aerospace: Used for high-temperature exhaust filtration on engine test stands, heat treatment fixtures, and other critical components.
● Other High-Temp Environments: Such as high-temperature solid particle screening, pyrolysis equipment protection, and industrial boiler-related components.
310S stainless steel wire mesh, with its superior high-temperature resistance, oxidation resistance, and stability, provides reliable solutions for industrial high-temperature filtration, support, and protection.
We support the following customizations:
● Mesh count / filament diameter
● Weaving method
● Wire width / length
● Special cuts or shapes
● Application-specific matching
Please provide the operating temperature, media type, and filtration requirements, and we will recommend suitable specifications for you.
Standards: ASTM / ISO
Strict control over wire diameter tolerance and mesh consistency
Dimensional and appearance inspections before shipment

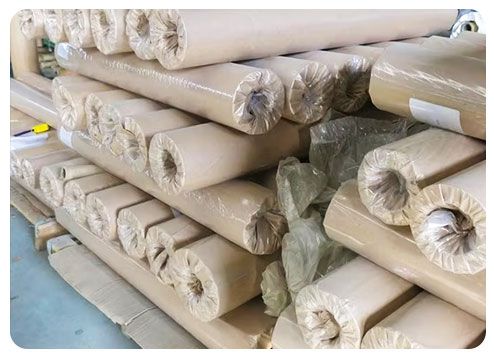

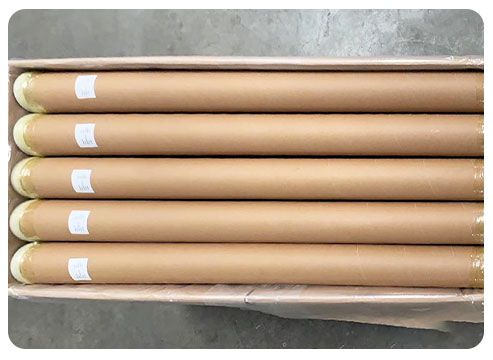

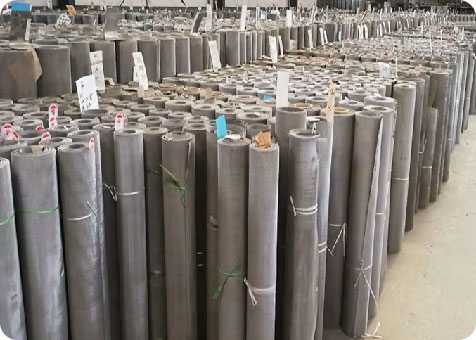

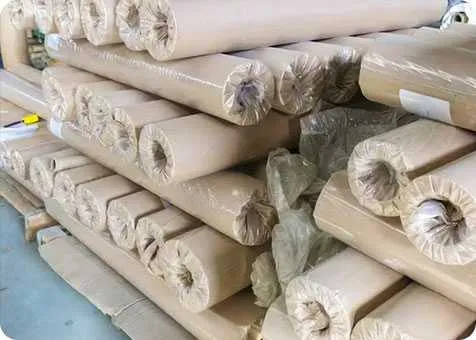

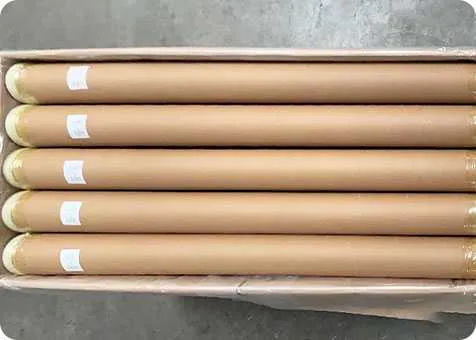

● Packaging Method: Moisture-proof paper + wooden crate / woven bag

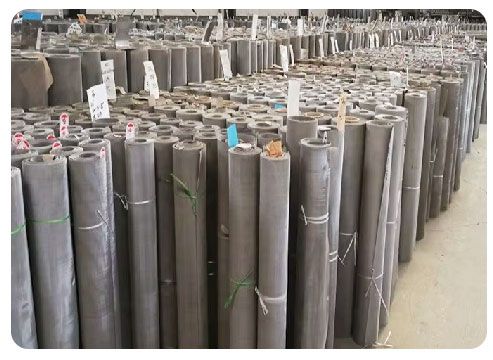

● Delivery Time: Standard sizes in stock, custom sizes made to order
● Export Packaging: Meets international shipping requirements

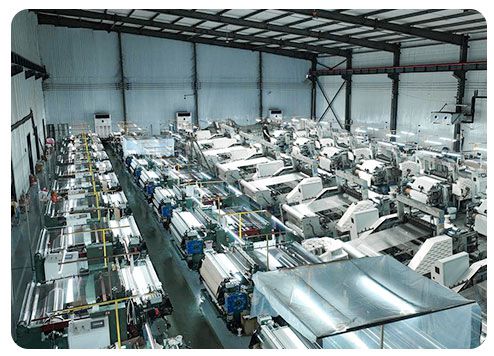

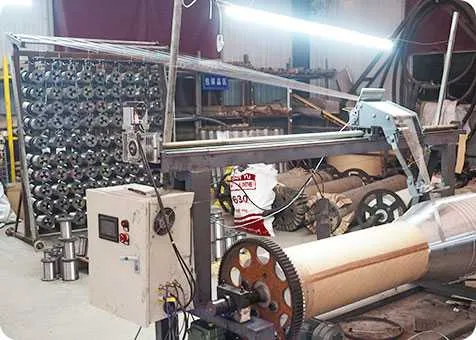

As a reliable stainless steel wire mesh manufacturer, we provide global industrial clients with custom sizing, rapid prototyping, and stable production.
● Professional Technical Support: Our engineering team recommends the most suitable wire diameter, mesh count, and weave based on your specific operating conditions.
● Reliable Customization Capability: We offer value-added services like cutting, welded edges, filter cylinder fabrication, or custom components, delivering products ready for installation.

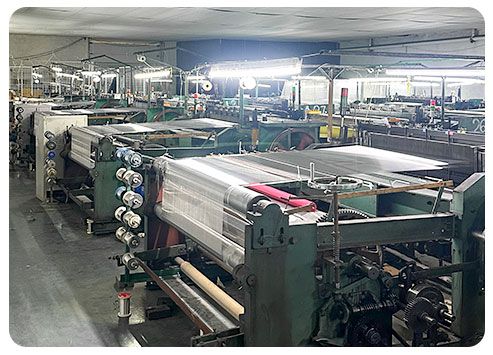

● Short Lead Times & Stable Long-Term Supply: Rigorous raw material supply chain management and mature production processes ensure consistent product performance and support quick delivery.
Contact Us Now to request detailed technical specifications and samples for 310S Stainless Steel Woven Wire Mesh. Let our expertise in materials science and manufacturing build a solid, durable line of defense for your high-temperature projects. Please inform us of your material requirements, mesh count, dimensions, quantity, and intended application. We will respond with a detailed quotation within 12 hours.
