Material: S32750 (AISI/SAF2507), S31803 (AISI/SAF2205)
Mesh counts: 2-500 mesh
Width: 0.1m - 5m
Length: 10m - 100m etc.
Weave method: plain weave, twill weave, Dutch weave, reverse Dutch weave

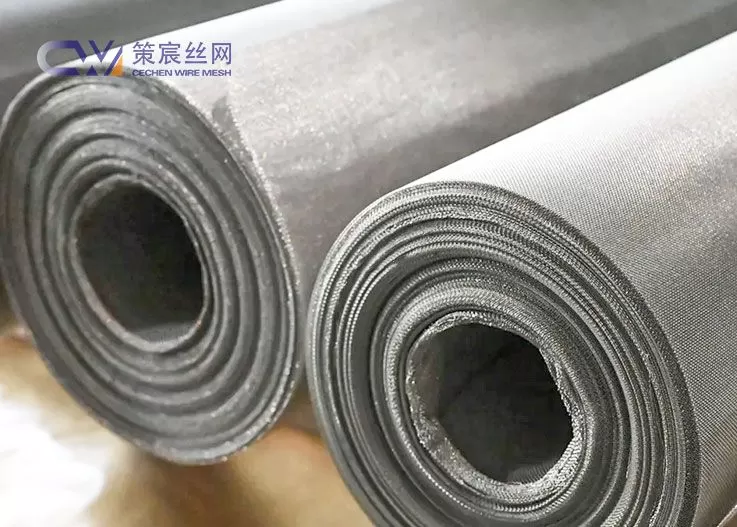

Supply Form: Rolls, Sheets, Cut to Length
Standard: AISI, ASTM, JIS, DIN, EN, BS
Customisation Available: Yes (Supports size/mesh count/wire diameter/weaving method)
Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
Leading time: Stock or 5-10 days or according to quantity
Our Advantage:
Support Customization
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

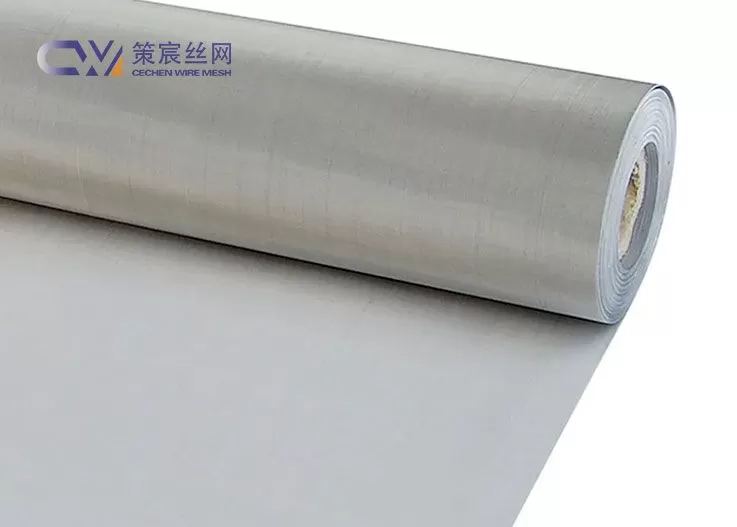

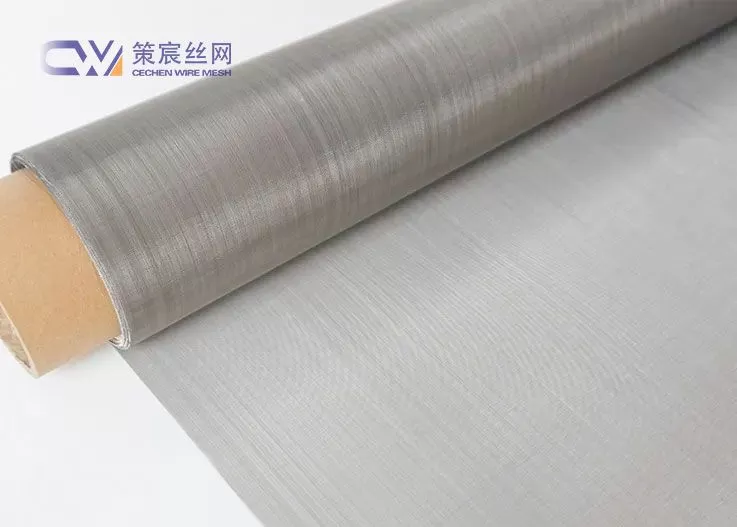

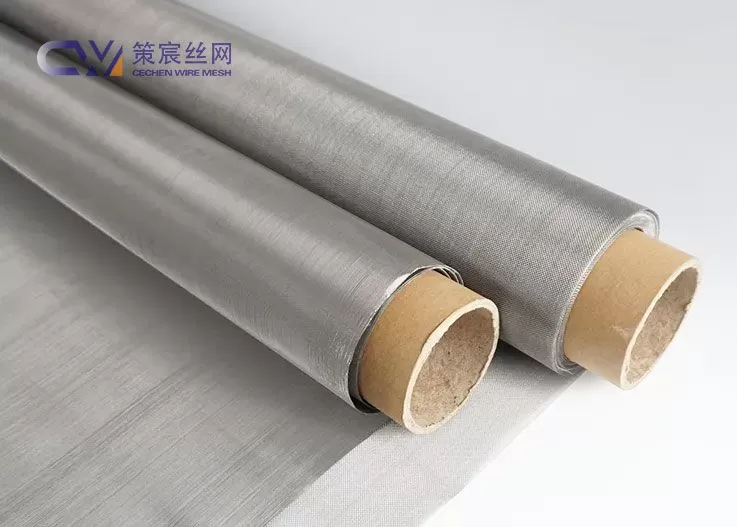

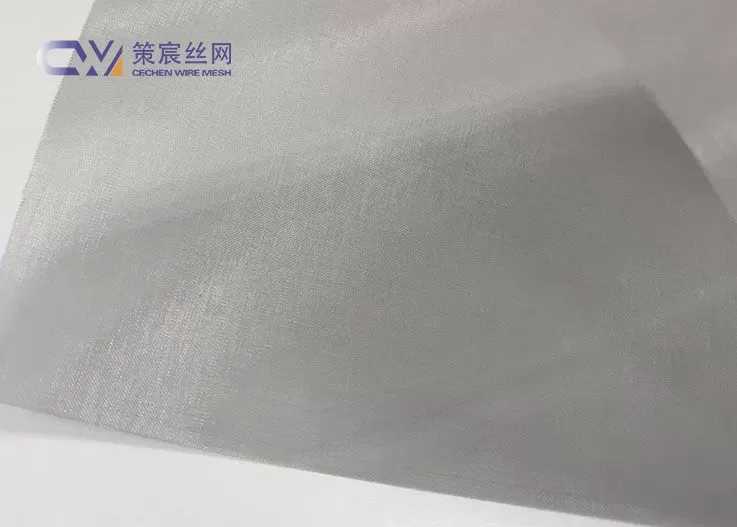

Super duplex stainless steel wire mesh is a high-performance metal mesh. It combines the stainless and corrosion resistance of austenitic stainless steel with the high strength of ferritic stainless steel, featuring a unique austenitic-ferritic duplex structure. It possesses characteristics such as corrosion resistance, high temperature resistance, wear resistance, and high strength. Its strength is almost twice that of traditional 304/316 stainless steel. Common grades include 2205 (UNS S32205/S31803) and 2507 (UNS S32750).
| AISI/SAE Steel Grades | C | Mn | Si | S | P | Cr | Ni | Mo | Cu | N |
| 2507 | 0.03 | 1.20 | 0.8 | 0.020 | 0.035 | 24-26 | 6-8 | 3-5 | 0.5 | 0.24-0.32 |
| 2205 | 0.03 | 2.00 | 1.0 | 0.020 | 0.030 | 21-23 | 4.5-5.5 | 2.5-3.5 | 0.08-0.20 |
Super Duplex Stainless Steel Wire Mesh is enriched with high levels of chromium, molybdenum, and nitrogen, providing outstanding resistance to pitting and crevice corrosion, even in neutral chloride solutions above 60°C. Compared with standard austenitic stainless steel (e.g., AISI 316L), high-chromium duplex grades—especially those containing nitrogen—offer significantly better corrosion resistance. In addition, duplex stainless steel exhibits high strength and fatigue resistance, with a yield strength roughly twice that of 18-8 austenitic stainless steel, and maintains excellent performance across a wide temperature range.

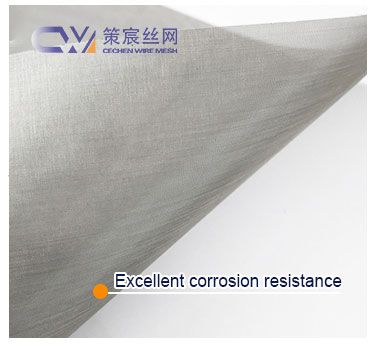

● Excellent corrosion resistance

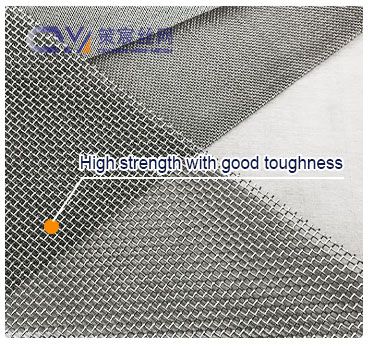

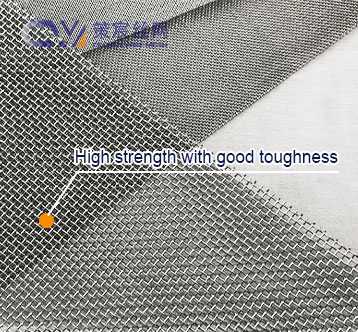

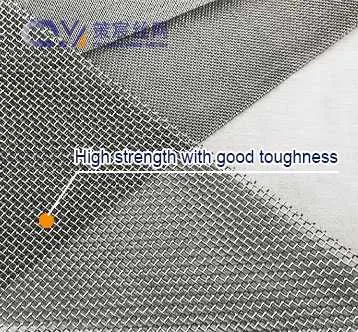

● Combines high strength and toughness

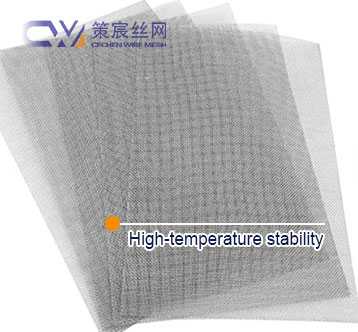

● High temperature resistance and dimensional stability

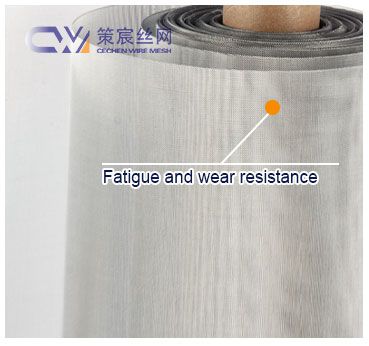

● Strong fatigue resistance and wear resistance
| Weave Type | Mesh Size | Structure | Advantages |

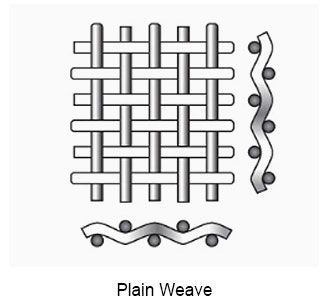

| Plain Weave | 10–200 mesh | Warp and weft wires alternate over and under, forming a simple square pattern | Uniform openings, stable structure, cost-effective |

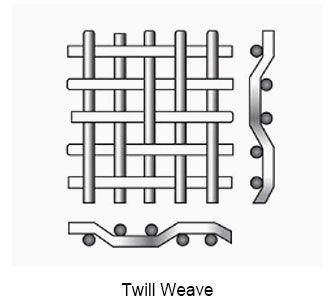

| Twill Weave | 20–300 mesh | Each warp or weft wire crosses over two or more wires | Denser structure, more wear-resistant, increased flexibility |

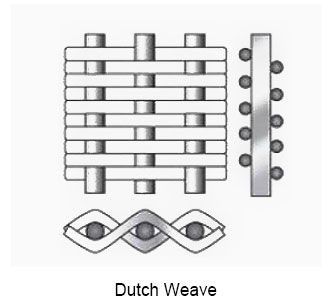

| Dutch Weave | 100–400 mesh | Weft wires outnumber warp wires and are tightly arranged | Fine openings, stable structure, high filtration precision |

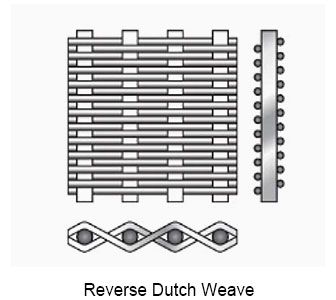

| Reverse Dutch Weave | 200–500 mesh | Warp wires outnumber weft wires, forming a reverse Dutch structure | Smaller openings, extremely high filtration accuracy, handles fine particles |
Related Tips:
● Plain Weave: Simple structure, suitable for most general applications, but with moderate abrasion and impact resistance.
● Twill Weave: Tighter weave, increased mesh flexibility, suitable for environments requiring mechanical loads or high vibration.
● Dutch Weave: Suitable for high-precision filtration, allowing for very small mesh openings while maintaining high flow rates.
● Reverse Dutch Weave: Extremely small pore size, designed specifically for high-precision filtration, suitable for harsh industrial or chemical processes.
CE & SGS Certified Duplex Stainless Steel Mesh
CE & SGS Certified Duplex Stainless Steel Mesh is manufactured under a rigorously controlled quality management system and complies with internationally recognized product and testing standards. Our duplex stainless steel mesh has obtained CE marking and SGS test reports, and is produced in facilities certified to ISO 9001 quality management requirements. Product design, manufacturing tolerances, and inspection procedures strictly follow ISO 9044 (woven wire cloth specifications) and ISO 4783 (wire mesh tolerances and designation), as well as ASTM E2016 and ASTM E11 standards for industrial metal wire mesh.
In addition, materials and surface treatment processes meet RoHS and REACH directives for environmental compliance. These comprehensive certifications and multi-standard conformity ensure stable performance, traceable quality, and reliable use in demanding filtration, separation, and structural applications.
| Mesh | Wire Diameter (mm) | S.W.G | Aperture (mm) | Effective (%) | Weight (Kg/m²) |
| 3 Mesh | 2.2 | 14 | 6.27 | 62 | 7.0 |
| 3 Mesh | 1.219 | 18 | 7.25 | 70 | 2.5 |
| 3.5 Mesh | 0.914 | 20 | 6.34 | 66 | 1.8 |
| 4 Mesh | 1.63 | 16 | 4.72 | 58 | 5.0 |
| 4 Mesh | 0.914 | 20 | 5.45 | 76 | 2.1 |
| 4.5 Mesh | 0.711 | 22 | 4.93 | 71 | 1.2 |
| 5 Mesh | 1.22 | 18 | 3.86 | 57 | 3.6 |
| 5 Mesh | 0.711 | 22 | 4.36 | 76 | 1.3 |
| 6 Mesh | 1.22 | 18 | 3.04 | 50 | 4.3 |
| 6 Mesh | 0.711 | 22 | 3.52 | 63 | 1.6 |
| 8 Mesh | 0.91 | 20 | 2.26 | 43 | 3.2 |
| 8 Mesh | 0.559 | 24 | 2.5 | 67 | 1.5 |
| 10 Mesh | 0.91 | 20 | 1.63 | 41 | 4.0 |
| 10 Mesh | 0.46 | 26 | 2.08 | 67 | 1.1 |
| 12 Mesh | 0.71 | 22 | 1.41 | 43 | 2.9 |
| 12 Mesh | 0.457 | 26 | 1.74 | 68 | 1.4 |
| 14 Mesh | 0.46 | 26 | 1.36 | 57 | 1.4 |
| 16 Mesh | 0.376 | 28 | 1.21 | 55 | 1.2 |
| 18 Mesh | 0.315 | 30 | 1.10 | 60 | 0.85 |
| 20 Mesh | 0.315 | 30 | 0.95 | 58 | 0.95 |
| 22 Mesh | 0.274 | 32 | 0.88 | 57 | 0.8 |
| 24 Mesh | 0.274 | 32 | 0.78 | 55 | 0.85 |
| 26 Mesh | 0.274 | 32 | 0.74 | 51 | 0.7 |
| 28 Mesh | 0.234 | 34 | 0.67 | 50 | 0.75 |
| 30 Mesh | 0.234 | 34 | 0.61 | 48 | 0.8 |
| 32 Mesh | 0.234 | 34 | 0.56 | 50 | 0.84 |
| 36 Mesh | 0.234 | 34 | 0.47 | 45 | 0.95 |
| 38 Mesh | 0.193 | 36 | 0.48 | 46 | 0.7 |
| 40 Mesh | 0.193 | 36 | 0.44 | 50 | 0.8 |
| 50 Mesh | 0.152 | 38 | 0.36 | 46 | 0.58 |
| 60 Mesh | 0.122 | 40 | 0.30 | 50 | 0.45 |
| 80 Mesh | 0.12 | 40 | 0.198 | 44 | 0.58 |
| 100 Mesh | 0.10 | 42 | 0.154 | 37 | 0.50 |
| 120 Mesh | 0.081 | 44 | 0.13 | 40 | 0.39 |
| 130 Mesh | 0.07 | 45 | 0.125 | 41 | 0.325 |
| 140 Mesh | 0.07 | 45 | 0.111 | 38 | 0.35 |
| 150 Mesh | 0.055 | 46.5 | 0.115 | 48 | 0.206 |
| 160 Mesh | 0.061 | 46 | 0.097 | 32 | 0.3 |
| 170 Mesh | 0.05 | 47 | 0.09 | 41 | 0.213 |
| 180 Mesh | 0.051 | 47 | 0.09 | 410 | 0.24 |
| 190 Mesh | 0.051 | 47 | 0.083 | 40 | 0.24 |
| 200 Mesh | 0.041 | 48 | 0.086 | 46 | 0.17 |
| 220 Mesh | 0.041 | 48 | 0.074 | 41 | 0.19 |
| 240 Mesh | 0.041 | 48 | 0.065 | 39 | 0.2 |
| 250 Mesh | 0.041 | 48 | 0.061 | 38 | 0.22 |
| 260 Mesh | 0.041 | 48 | 0.057 | 34 | 0.22 |
| 280 Mesh | 0.031 | 49 | 0.06 | 31 | 0.14 |
| 300 Mesh | 0.031 | 49 | 0.054 | 40 | 0.15 |
| 320 Mesh | 0.031 | 49 | 0.048 | 39 | 0.16 |
| 350 Mesh | 0.031 | 49 | 0.042 | 36 | 0.16 |
| 400 Mesh | 0.025 | 50 | 0.0385 | 39 | 0.13 |
| 450 Mesh | 0.025 | 50 | 0.0314 | 37 | 0.14 |
| 500 Mesh | 0.025 | 50 | 0.0258 | 35 | 0.156 |
Duplex Stainless Steel Wire Mesh Plain or Twill Specifications | |||||
| Mesh | Wire Diameter (inch) | Wire Diameter (mm) | Aperture/Opening (inch) | Aperture/Opening (mm) | %Open Area |
| 1x1 | 0.080 | 2.03 | 0.920 | 23.37 | 84.6 |
| 2x2 | 0.063 | 1.60 | 0.437 | 11.10 | 76.4 |
| 3x3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 |
| 4x4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 |
| 4x4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 |
| 5x5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 |
| 6x6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 |
| 8x8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 |
| 10x10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 |
| 10x10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0 |
| 12x12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 |
| 12x12 | 0.020 | 0.508 | 0.063 | 1.60 | 57.2 |
| 14x14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 14x14 | 0.020 | 0.508 | 0.051 | 1.30 | 51.0 |
| 16x16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18x18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20x20 | 0.020 | 0.508 | 0.0300 | 0.76 | 36.0 |
| 20x20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2 |
| 24x24 | 0.014 | 0.356 | 0.0277 | 0.70 | 44.2 |
| 30x30 | 0.013 | 0.330 | 0.0203 | 0.52 | 37.1 |
| 30x30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 30x30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 |
| 35x35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40x40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0 |
| 50x50 | 0.009 | 0.229 | 0.0110 | 0.28 | 30.3 |
| 50x50 | 0.008 | 0.203 | 0.0120 | 0.31 | 36.0 |
| 60x60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 60x60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 |
| 70x70 | 0.0065 | 0.165 | 0.0078 | 0.20 | 29.8 |
| 80x80 | 0.0065 | 0.165 | 0.0060 | 0.15 | 23.0 |
| 80x80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4 |
| 90x90 | 0.0050 | 0.127 | 0.0061 | 0.16 | 30.1 |
| 100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 100x100 | 0.0040 | 0.102 | 0.0060 | 0.15 | 36.0 |
| 100x100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 |
| 110x110 | 0.0040 | 0.1016 | 0.0051 | 0.13 | 30.7 |
| 120x120 | 0.0037 | 0.0940 | 0.0046 | 0.12 | 30.7 |
| 150x150 | 0.0026 | 0.0660 | 0.0041 | 0.10 | 37.4 |
| 160x160 | 0.0025 | 0.0635 | 0.0038 | 0.09 | 36.4 |
| 180x180 | 0.0023 | 0.0584 | 0.0033 | 0.08 | 34.7 |
| 200x200 | 0.0021 | 0.0533 | 0.0029 | 0.073 | 33.6 |
| Duplex 2205 Stainless Steel Mesh | Super Duplex 2507 Stainless Steel Mesh |
12×64 60×340 70×340 80×400 165×800 165×1400 | 30×150 40×200 165×800 165×1400 200×1400 325×2300 |

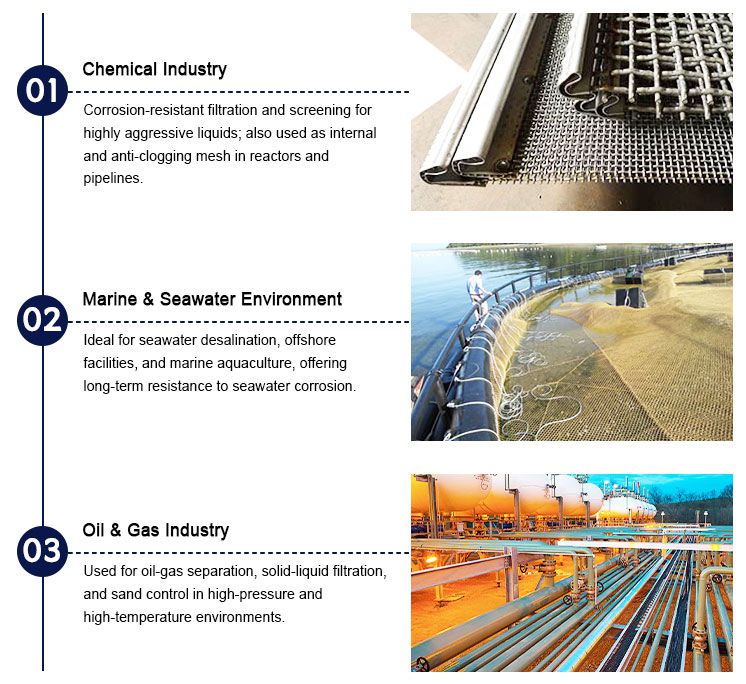

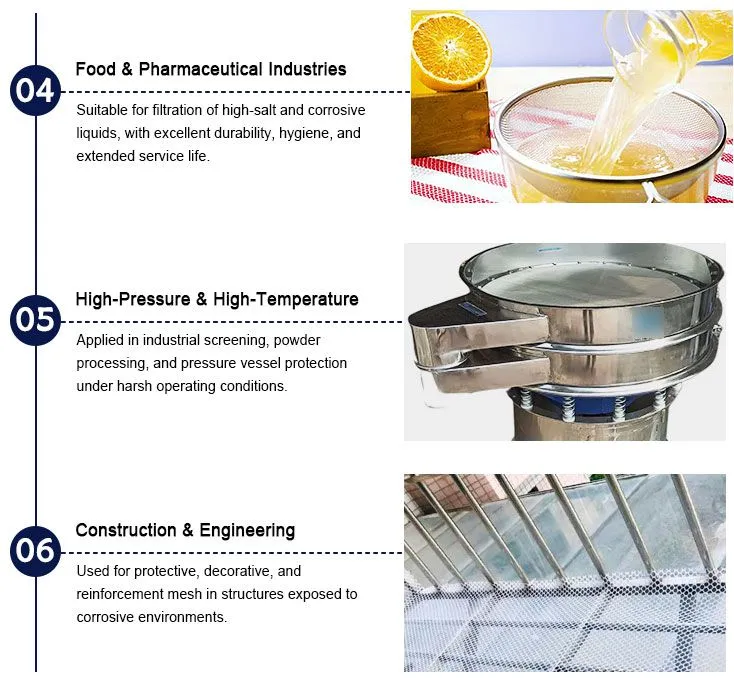

Super duplex stainless steel mesh (2205/2507) is widely used in chemical, petroleum, seawater treatment, food and pharmaceutical, and high-precision industrial screening fields due to its excellent corrosion resistance, high mechanical strength, and high temperature and pressure resistance. It can operate stably for extended periods in harsh environments, serving as a liquid and powder filter, solid-liquid separation agent, protective mesh, and structural reinforcement. Combining high strength and durability, it significantly extends service life and reduces maintenance costs, making it an ideal upgrade option for ordinary 304/316 stainless steel mesh in demanding environments.
Chemical Industry
● Corrosive Liquid Filtration and Screening: 2507/2205 super duplex stainless steel mesh resists highly corrosive liquids such as chlorides, sulfuric acid, and hydrochloric acid, making it ideal for filtration, screening, and liquid purification in chemical plants.
● Reaction Vessel and Pipeline Protection: Can be used as internal mesh, anti-clogging mesh, and liquid disperser in reactors.
Marine and Seawater Environment
● Seawater Desalination and Marine Facilities: Resistant to seawater corrosion, suitable for use as screens, protective nets, and inlet filters in seawater desalination plants and offshore oil platforms.
● Marine Aquaculture Equipment: Can be used as mesh or support structures for marine fish and shellfish farming, and is rust-resistant over long-term use.
Oil and Gas Industry
● Oil-Gas Separation and Solid-Liquid Separation: Used for filtration and particle separation during oilfield water injection and oil extraction processes.
● Sand Filters and Sand Removal Mesh: Super duplex steel mesh is resistant to high pressure and high temperature, suitable for deep well sand filtration and natural gas pipeline filtration.
Food and Pharmaceutical Industries
● Liquid Filtration and Safety Protection: Used in the processing of high-salt, highly corrosive liquids in food, such as seawater salt extraction, fruit juice clarification, and liquid pharmaceutical filtration.
● Washable and Durable Mesh: Compared to ordinary 304/316 stainless steel mesh, it is more corrosion-resistant, has a longer lifespan, and reduces replacement frequency.
High-Pressure and High-Temperature Industrial Environments
● Industrial Screening and Powder Processing: High temperature and chemical corrosion resistant, suitable for screening ceramic powder, metal powder, and catalyst particles.
● Pressure Vessel Protective Mesh: Can withstand high-pressure liquid or gas filtration, ensuring structural stability.
Construction and Engineering
● Protective and Decorative Mesh: Super duplex steel mesh can be used for building curtain walls and balcony protective mesh, combining corrosion resistance and high strength.
● Structural Reinforcement: Used as support mesh or composite material reinforcement mesh in highly corrosive environments.

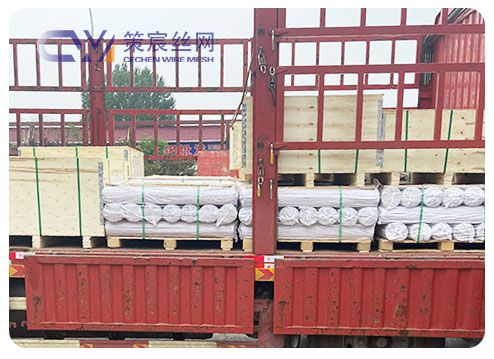

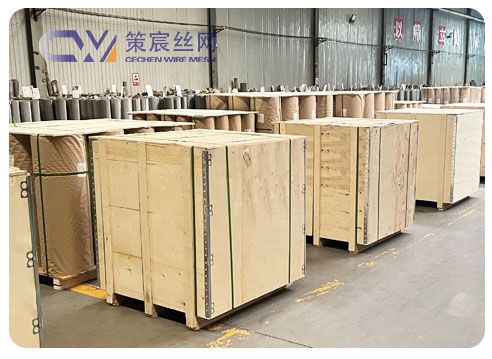

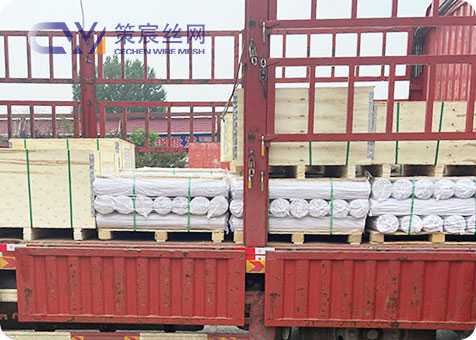

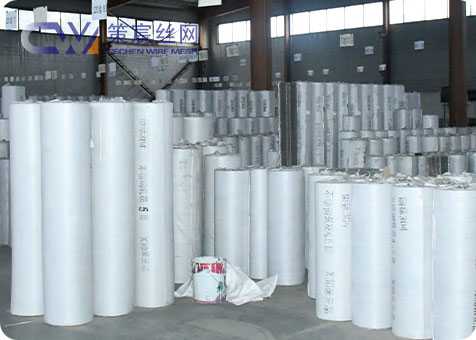

● Depending on mesh type and specification, the mesh can be packed in rolls wrapped with moisture-proof plastic film, then reinforced with woven bags or wooden cases.
● Cut pieces and fabricated discs are typically packed in sealed PE bags and strong cartons with palletization for bulk shipments.

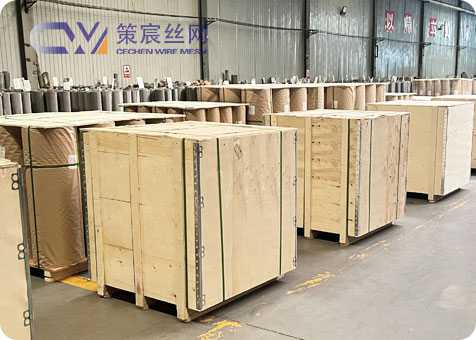

● For heavy-duty specifications, fumigation-free wooden crates are used to prevent deformation and impact damage.
● Each package is clearly labeled with material grade, mesh count, wire diameter, dimensions, heat/lot number, and inspection status to guarantee traceability.
● Inner packaging adopts anti-rust paper and desiccant to control humidity, complying with international shipping and safety standards such as ISPM-15 for wooden packaging.
● Customized packaging, barcode labeling, and pallet stacking plans are available according to customer and application requirements.

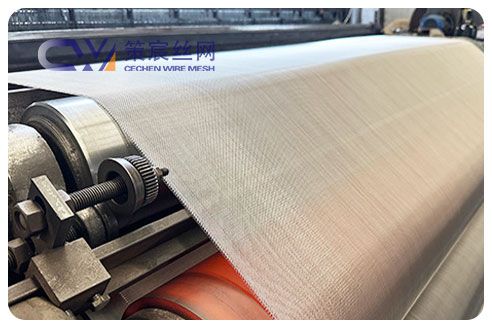

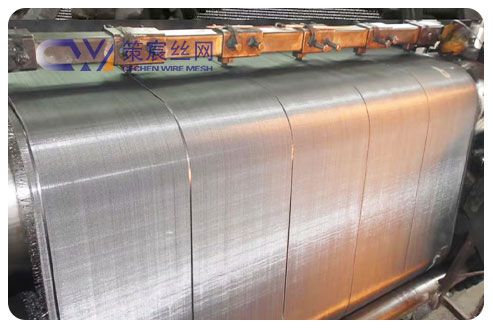

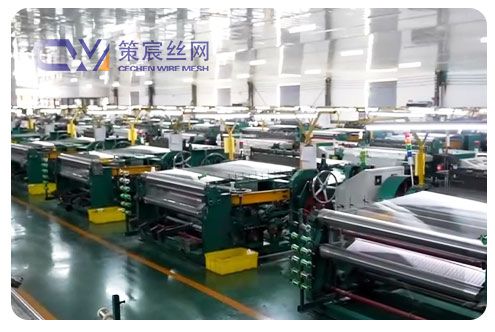

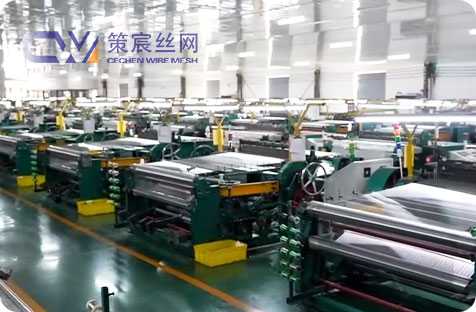

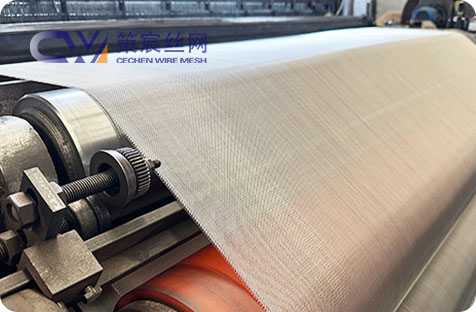

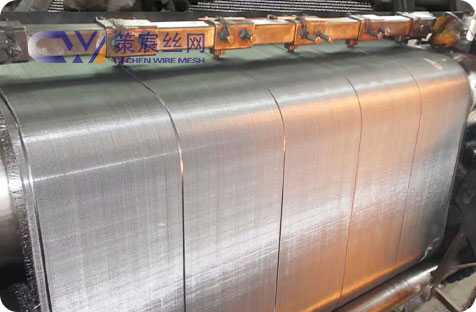

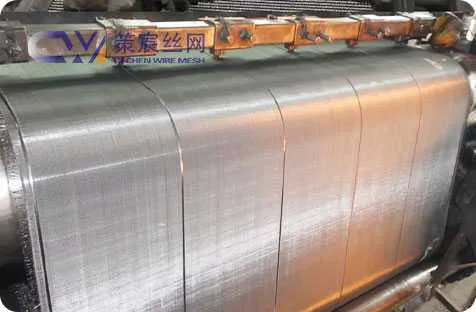

2205/2507 Duplex Stainless Steel Wire Mesh Manufacturing Workshop
Our factory produces directly, without any middlemen. Each roll of wire mesh is meticulously woven, leveled, and re-inspected by experienced operators on automated looms. We strictly control tension, mesh size, and wire diameter to ensure uniform mesh size and consistent strength. As a reputable factory, we welcome customers to visit us at any time to inspect our products, understand our production process, and witness firsthand our product quality and production capacity, giving you greater peace of mind when purchasing.

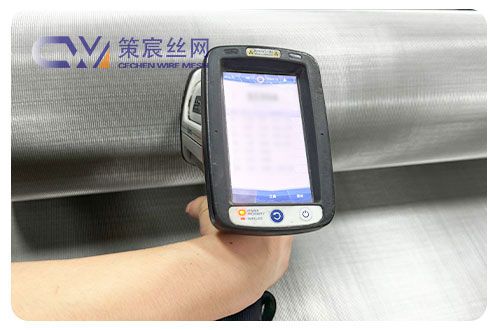

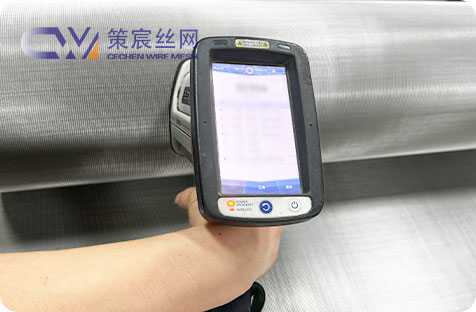

● Raw Material Inspection: Chemical composition and mechanical property tests are conducted on incoming stainless steel wire to ensure material compliance with standards.
● Wire Diameter Inspection: Before drawing and weaving, wire diameter is measured using a laser diameter gauge or micrometer calipers to ensure consistency.

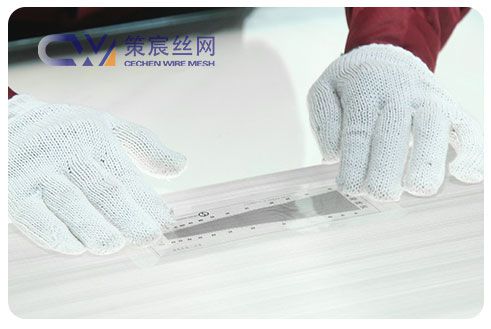

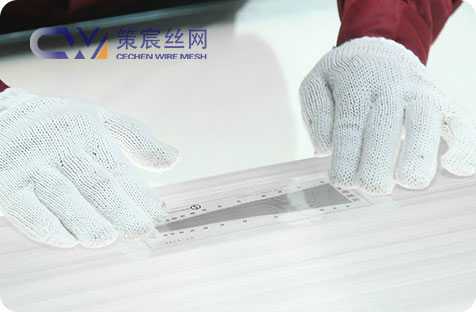

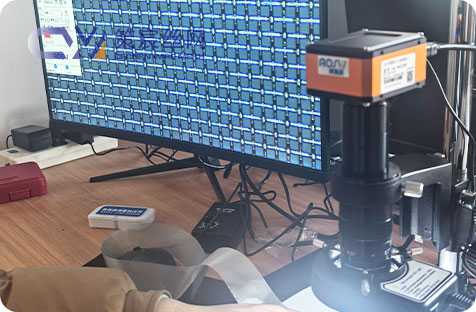

● Mesh Count Inspection: Mesh count, size, and spacing are uniformly inspected using a precision projector or sampling.

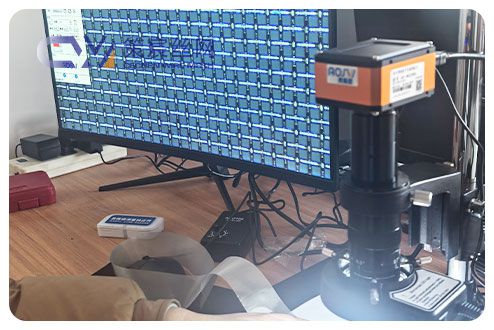

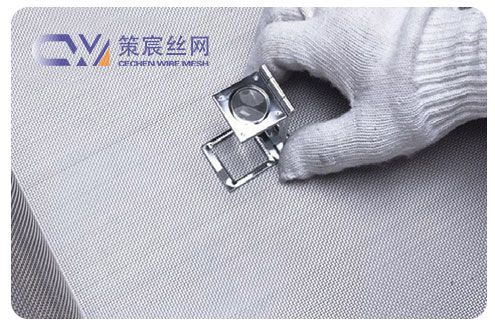

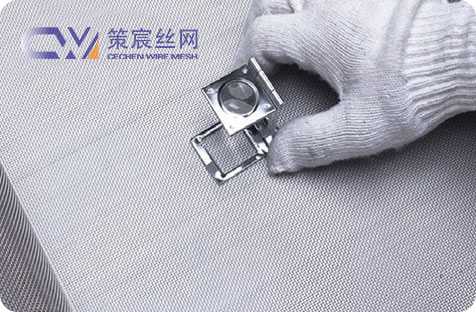

● Hidden Defect Inspection: Microcracks, broken wires, or hidden defects are checked using optical magnification equipment.
● Weaving Tension Inspection: The tension of warp and weft wires is monitored during weaving to ensure a flat, wave-free, and uneven mesh surface.

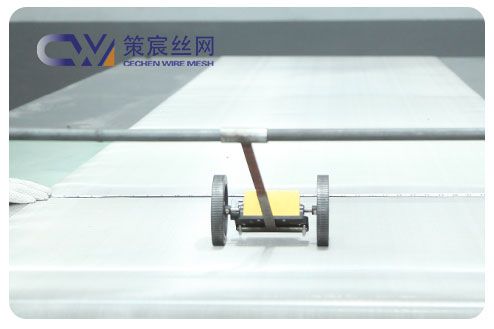

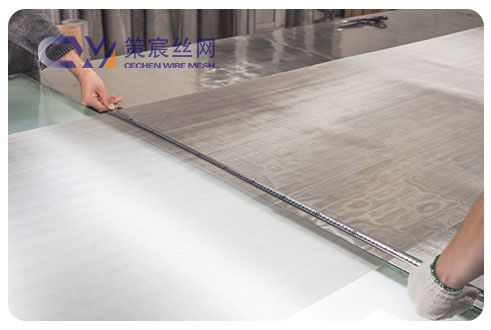

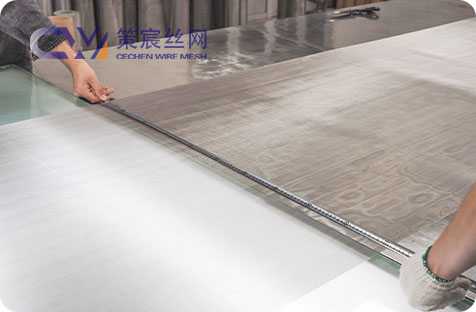

● Dimension and Length Inspection: Roll length, width, and thickness are measured to ensure compliance with customer requirements.
● Flatness Inspection: The mesh is free of wrinkles or deformation through a leveling machine and manual sampling.
● Corrosion Resistance Sampling Test: Sampled mesh is subjected to salt spray or chemical corrosion tests to verify corrosion resistance.
● Appearance Inspection: The mesh surface is manually inspected to remove obvious defects, impurities, or stains.
● Labeling and Batch Number Verification: Each roll of wire mesh is labeled with its production batch number, material, and specifications to ensure full traceability.
● Final Factory Inspection: Before finished products are put into storage, random sampling and verification are conducted to ensure that all testing items meet international standards such as ISO and ASTM.
● Stable Quality – Every batch of products undergoes mesh inspection, hidden defect checks, material verification, and dimensional verification; multiple processes ensure high standards.
● Timely Delivery – Direct factory shipping allows for flexible capacity allocation, guaranteeing on-time order fulfillment.
● Factory Visit Support – Customers are welcome to visit our production lines and quality control processes, showcasing our capabilities transparently.
● Customizable – We can provide wire mesh solutions in different specifications, materials, and sizes according to customer needs.
● Controllable Costs – Direct factory supply eliminates intermediaries, ensuring high cost-effectiveness.
Choose CeChen Wire Mersh, and you'll have a reliable partner, ensuring product performance, stable supply, and worry-free procurement.
