As a professional plain weave stainless steel mesh manufacturer, we specialize in producing high-quality plain weave stainless steel mesh in a wide range of stainless steel grades, including 304, 304L, 316, 316L, and 310S. We offer customized solutions with various mesh counts, wire diameters, aperture sizes, roll widths, and edge treatments to meet the requirements of industrial filtration, screening, protection, and other demanding applications.
Supported by precision weaving technology and a strict quality control system, our plain weave stainless steel mesh features uniform mesh openings, precise dimensions, high mechanical strength, excellent corrosion resistance, and consistent filtration performance, ensuring reliable quality and performance in every production batch.

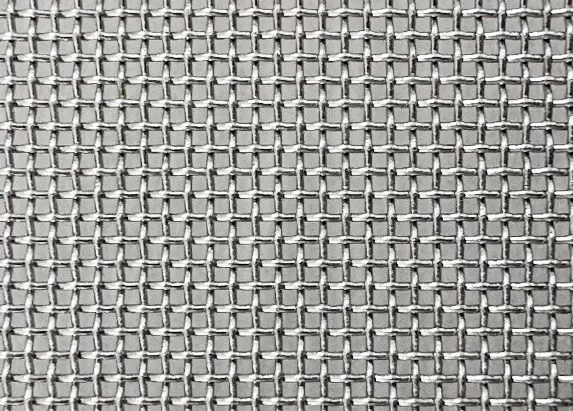

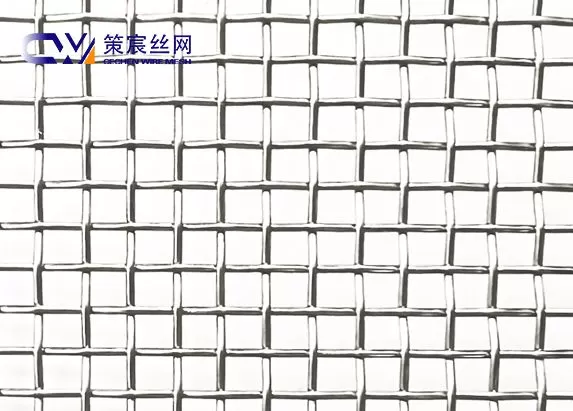

Plain weave stainless steel wire mesh (also known as plain weave wire mesh or square wire mesh) is the most common and widely used weave type in the manufacture of stainless steel woven wire mesh. It utilizes a simple "over-one, under-one" weaving technique, where warp and weft wires interlace regularly to create numerous contact points, resulting in a precise, uniform square-mesh structure.
 |  |

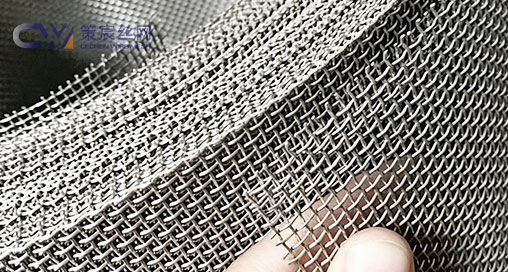

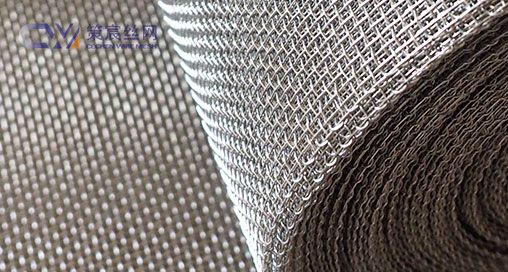

| Plain Weave Stainless Steel Wire Mesh | Edge-Bound Plain Weave Stainless Steel Wire Mesh |
Thanks to its balanced structure, plain weave stainless steel wire mesh offers a combination of strength, filtration precision, and open area. Compared to other weaving methods, it features excellent dimensional accuracy, a flat and smooth surface, and stable filtration performance, making it an ideal choice for applications requiring uniform aperture sizes and reliable screening or filtration results.
Plain Weave Technical Advantages
● High Dimensional Accuracy
● Uniform Wire Diameter
● Excellent Flatness

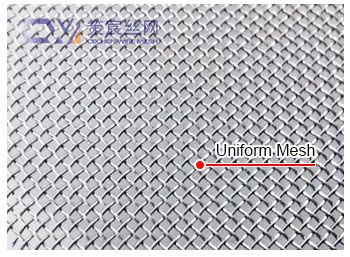

● Stable Aperture
● High Strength
● Corrosion Resistance
● Heat Resistance
● Easy Cleaning
● Reusable
● Food Grade Available

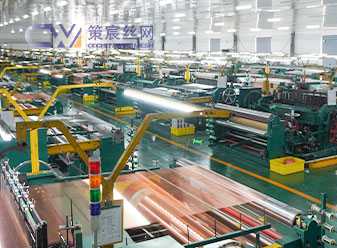

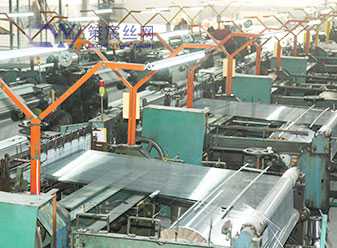

Manufacturing high-performance Plain Weave Stainless Steel Wire Mesh is not simply about weaving stainless steel wires together. It requires a deep understanding of how wire mesh performs in real filtration, separation, and screening applications. With more than 40 years of experience in stainless steel wire mesh manufacturing, we have worked closely with customers across various industries and gained extensive knowledge of what makes a mesh truly reliable. We understand that the performance of wire mesh directly affects filtration efficiency, screening accuracy, equipment stability, and long-term operating costs.
Through years of practical manufacturing experience, we have learned that a high-quality plain weave mesh is not defined only by meeting basic specifications. It must deliver consistent performance under actual working conditions. Factors such as material selection, wire diameter accuracy, mesh opening consistency, weaving stability, and surface quality all play a critical role in determining the final performance of the mesh. This application-driven experience enables us to manufacture Plain Weave Stainless Steel Wire Mesh with precise openings, stable weaving structures, excellent durability, and consistent quality from batch to batch. By carefully controlling every stage of production, from stainless steel wire processing and precision weaving to final inspection, we ensure that our mesh provides reliable performance in demanding industrial environments.
 |  |  |

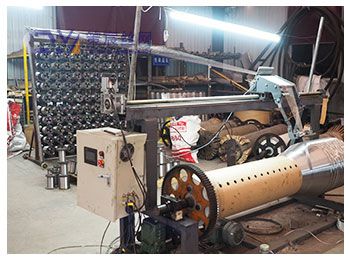

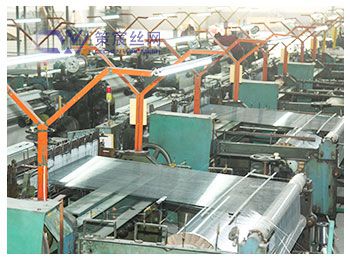

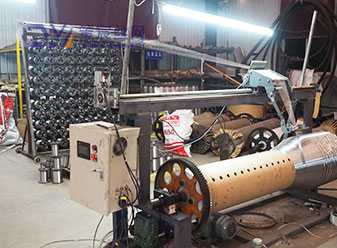

| Plain Weave Wire Mesh Warp Wire Preparation Process | High-Precision Plain Weave Wire Mesh Weaving Machine | Advanced Plain Weave Wire Mesh Production Line In Factory |
Our Advantages
● 40+ Years Manufacturing Expertise
● Direct Factory Production Control
● Application-Focused Filtration Experience
● Precision Weaving & Consistent Mesh Quality

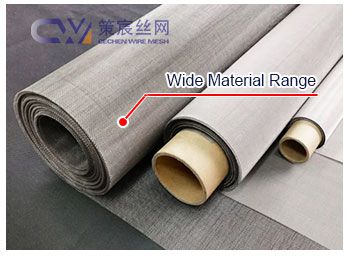

● Wide Material & Specification Options
● Large-Scale Stable Production Capacity
● Strict Quality Control & International Certifications
● Customized Mesh Solutions

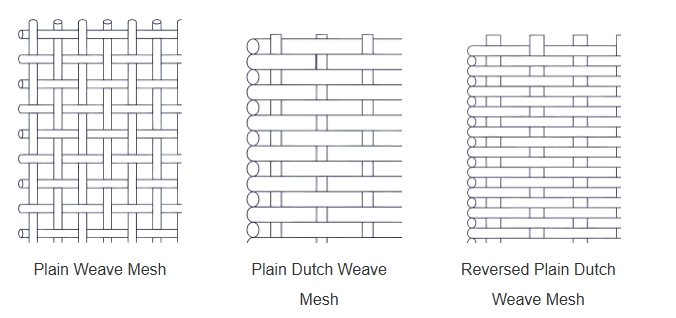

Selecting the appropriate weaving method is crucial for achieving the desired filtration performance and service life. Different applications impose varying requirements regarding filtration precision, strength, pressure resistance, and cost. Each weaving method offers distinct advantages, allowing customers to choose the most suitable wire mesh solution based on specific operating conditions and filtration requirements.
 |  |  |

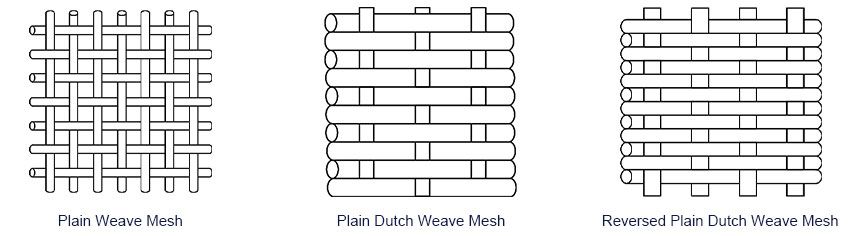

Plain Weave (Square Mesh) | Plain Dutch Weave | Reverse Dutch Weave (Reverse Plain Dutch Weave) |
Plain Weave (Square Mesh)
Plain weave is the simplest and most commonly used weaving method for stainless steel wire mesh. In this structure, each warp wire passes alternately over and under each weft wire, while the weft wires follow the same one-over and one-under pattern. This creates a uniform square opening structure with equal spacing between wires, providing stable dimensions, accurate mesh openings, and consistent filtration performance.
Plain Dutch weave is a modified plain weaving method designed for fine filtration applications. During weaving, thicker warp wires are arranged with thinner and more densely packed weft wires, creating a compact mesh structure with small filtration openings. Unlike standard plain weave mesh, the openings are mainly formed by the spacing between densely arranged weft wires, allowing higher filtration accuracy and better particle retention.
Reverse Dutch weave uses the opposite wire arrangement compared with plain Dutch weave. It is manufactured with fewer but thicker weft wires and more numerous thinner warp wires, creating a strong and tightly woven filtration structure.
Comparison of Plain Weave Stainless Steel Mesh Weaving Types | ||||
| Weaving Type | Filtration Accuracy | Key Features | Typical Applications | Cost Comparison |
| Plain Weave | ★★★☆☆ | Uniform mesh openings, accurate filtration, good balance between strength and open area, widely used and easy to process | General filtration, screening, separation, food processing, chemical filtration | Low Cost |
| Plain Dutch Weave | ★★★★☆ | Higher filtration accuracy, compact structure, better particle retention, stronger than standard plain weave | Fine filtration, hydraulic filters, polymer filtration, plastic extrusion filtration | Medium Cost |
| Reverse Dutch Weave | ★★★★★ | High tensile strength, excellent pressure resistance, strong dirt-holding capacity, suitable for continuous filtration | Melt filtration, extrusion screen packs, petrochemical filtration, high-pressure filtration systems | Higher Cost |
| Specification Item | Available Range |
| Weaving Type | Plain Weave / Plain Dutch Weave and Reverse Dutch Weave are also available. |
| Mesh Count | 1–400 Mesh (Up to 635 Mesh Available) |
| Wire Diameter | 0.025–4.00 mm |
| Opening Size | 0.025–21.40 mm |
| Filtration Rating | Approx. 25–21,400 μm |
| Open Area | 25%–71% |
| Standard Width | 0.5–2.5 m |
| Standard Roll Length | 30 m / 50 m / 100 m |
| Material Grades | 304, 304L, 316, 316L (Other Alloys Available) |
| Supply Form | Rolls, Sheets, Cut-to-Size Panels, Filter Discs, Filter Tubes |
| Applicable Standards | ASTM E11, ASTM E2016, ISO 9044 |
| Customization | Mesh Count, Wire Diameter, Opening Size, Roll Width, Roll Length |
Plain Weave Wire Mesh Specifications | |||||
| Mesh Count (Mesh/Inch) | Wire Diameter (inch) | Wire Diameter (mm) | Opening Size (inch) | Opening Size (mm) | Open Area (%) |
| 1×1 | 0.157 | 4.00 | 0.840 | 21.40 | 71.0 |
| 4×4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 |
| 8×8 | 0.043 | 1.10 | 0.080 | 2.08 | 42.0 |
| 10×10 | 0.039 | 1.00 | 0.060 | 1.54 | 36.0 |
| 12×12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 |
| 14×14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 16×16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18×18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20×20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2 |
| 24×24 | 0.014 | 0.356 | 0.0277 | 0.70 | 44.2 |
| 30×30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 40×40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0 |
| 50×50 | 0.008 | 0.203 | 0.0120 | 0.31 | 36.0 |
| 60×60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 80×80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4 |
| 100×100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 120×120 | 0.0037 | 0.094 | 0.0046 | 0.117 | 30.7 |
| 150×150 | 0.0026 | 0.066 | 0.0041 | 0.104 | 37.4 |
| 200×200 | 0.0021 | 0.053 | 0.0029 | 0.074 | 33.6 |
| 250×250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36.0 |
| 300×300 | 0.0015 | 0.0381 | 0.0018 | 0.046 | 29.7 |
| 325×325 | 0.0014 | 0.0356 | 0.0017 | 0.043 | 30.0 |
| 400×400 | 0.0010 | 0.0254 | 0.0015 | 0.037 | 36.0 |
| 500×500 | 0.0010 | 0.0254 | 0.0010 | 0.025 | 25.0 |
| 635×635 | 0.0008 | 0.0203 | 0.0008 | 0.020 | 25.0 |
Plain Dutch Weave Specifications | |||
| Mesh (Warp × Weft) | Warp Wire Dia. (mm) | Weft Wire Dia. (mm) | Approx. Filtration (μm) |
| 12 × 64 | 0.58 | 0.40 | 280 |
| 14 × 88 | 0.50 | 0.33 | 220 |
| 24 × 110 | 0.36 | 0.25 | 150 |
| 30 × 150 | 0.23 | 0.18 | 105 |
| 40 × 200 | 0.18 | 0.14 | 74 |
| 50 × 250 | 0.14 | 0.11 | 60 |
| 80 × 400 | 0.125 | 0.09 | 45 |
| 100 × 600 | 0.10 | 0.063 | 30 |
| 165 × 800 | 0.071 | 0.050 | 25 |
| 200 × 1400 | 0.050 | 0.040 | 15 |
Reverse Dutch Weave (Reverse Plain Dutch Weave) Specifications | ||||
| Mesh (Warp × Weft) | Warp Wire Dia. (mm) | Weft Wire Dia. (mm) | Approx. Filtration (μm) | Typical Applications |
| 48 × 10 | 0.50 | 0.56 | 270 | Coarse pressure filtration |
| 72 × 15 | 0.45 | 0.50 | 200 | Polymer filtration |
| 132 × 17 | 0.35 | 0.45 | 150 | Plastic extrusion |
| 152 × 24 | 0.28 | 0.40 | 120 | Melt filtration |
| 160 × 17 | 0.27 | 0.45 | 110 | Chemical filtration |
| 200 × 40 | 0.17 | 0.27 | 75 | Hydraulic filtration |
| 260 × 40 | 0.15 | 0.25 | 63 | Fine pressure filtration |
| 325 × 40 | 0.13 | 0.22 | 50 | Polymer melt filtration |
| 400 × 64 | 0.10 | 0.18 | 25 | Precision filtration |
Plain weave wire mesh can be made from a variety of metal materials to meet different application requirements, including corrosion resistance, high temperature resistance, electrical conductivity, mechanical strength, and chemical compatibility. In addition to stainless steel, we also supply plain weave wire mesh made from nickel, titanium, copper, brass, Monel alloy, Incol nickel alloy, and other special alloy materials.
|  |  |  |
| Stainless Steel Plain Weave Mesh | Red Copper Plain Weave Mesh | Brass Plain Weave Wire Mesh | Monel Plain Weave Wire Mesh |
|  |  |  |
| Inconel Plain Weave Wire Mesh | Hastelloy Plain Weave Wire Mesh | Nickel Plain Weave Wire Mesh | Titanium Plain Weave Wire Mesh |
Choosing the Right Material for Plain Weave Wire Mesh | ||
| Material | Main Characteristics | Typical Applications |
| Stainless Steel (304, 304L, 316, 316L, 310S, 321, 904L) | Excellent corrosion resistance, high strength, durability, and wide temperature capability | Filtration, screening, food processing, chemical processing, pharmaceutical, industrial applications |
| Nickel Wire Mesh | Excellent resistance to corrosion, alkalis, and high temperatures with good electrical conductivity | Battery industry, chemical filtration, alkaline environments, electronic applications |
| Titanium Wire Mesh (Grade 1, Grade 2) | Lightweight, high strength-to-weight ratio, outstanding corrosion resistance, especially in seawater and chemical environments | Marine applications, aerospace, chemical processing, desalination, medical applications |
| Copper Wire Mesh | Excellent electrical conductivity, thermal conductivity, and electromagnetic shielding performance | EMI/RFI shielding, electrical applications, decorative mesh, filtration |
| Brass Wire Mesh | Good corrosion resistance, wear resistance, and attractive appearance with better strength than copper | Screening, architectural decoration, filtration, industrial sieving |
| Monel Wire Mesh (Monel 400) | Outstanding resistance to seawater, acids, and alkalis with excellent mechanical strength | Marine filtration, chemical processing, oil and gas applications |
How to Select the Right Material?
Recommendations for Material Selection | |
| Application | Recommended Material |
| General Filtration | 304 / 304L Stainless Steel |
| Corrosive Environment | 316 / 316L, Titanium, Nickel, Monel |
| High Temperature | Inconel, 310S Stainless Steel |

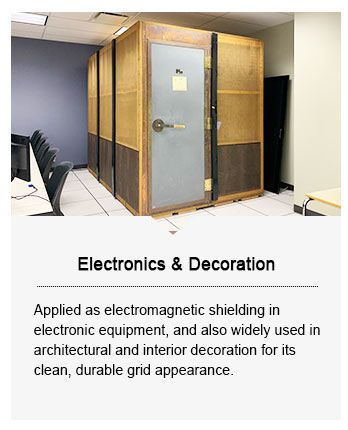

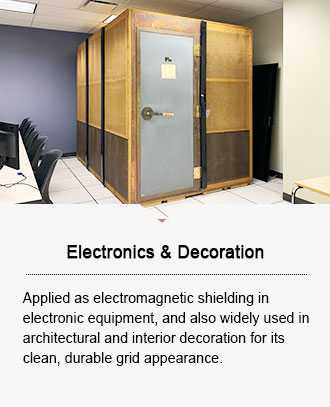

| Electrical & EMI Shielding | Copper, Brass |
| Marine & Chemical Processing | Titanium, Monel, Nickel |

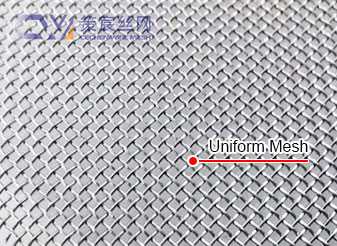

The plain weave pattern features an alternating over-and-under weave, creating a uniform mesh opening and stable structure. This ensures consistent filtration and reliable screening performance.
The balanced weaving structure provides high tensile strength and dimensional stability, allowing the mesh to withstand tension, vibration, and long-term use without deformation.
Manufactured from high-quality stainless steel grades such as 304, 316, and 316L, the mesh offers excellent resistance to moisture, chemicals, acids, alkalis, and oxidation, ensuring a long service life in demanding environments.
Plain weave stainless steel mesh is available in various mesh counts, wire diameters, and opening sizes, making it suitable for both coarse screening and precision filtration applications.

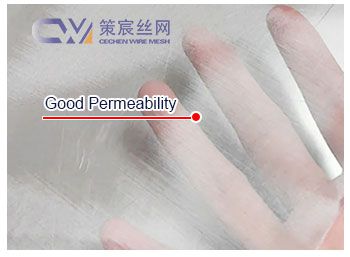

The uniform openings provide excellent permeability while maintaining reliable particle retention, making the mesh ideal for liquid, air, and powder filtration.
The mesh can be easily cut, formed, welded, punched, or fabricated into filter discs, filter cylinders, baskets, and other custom components to meet different industrial requirements.
With high wear resistance and excellent durability, stainless steel mesh requires minimal maintenance and delivers long-term performance, reducing replacement frequency and operating costs.
Plain weave stainless steel mesh is widely used in filtration, food processing, chemical processing, pharmaceuticals, mining, petroleum, water treatment, architecture, and many other industrial applications.
|  |  |
Plain weave stainless steel wire mesh is widely used across various sectors and industries, each with unique requirements regarding mesh size, aperture precision, corrosion resistance, mechanical strength, and operating conditions. As a professional manufacturer, we provide customized plain weave stainless steel wire mesh solutions tailored to diverse industrial applications.
Based on your specific operating conditions and technical parameters, we recommend the optimal material grade, mesh count, wire diameter, aperture size, and manufacturing process to ensure peak performance, extended service life, and reduced maintenance costs.
Customization Capabilities | |
| Custom Item | Available Options |
| Material | 304, 304L, 316, 316L, 310S, 321, 904L, Copper, Titanium, Nickel and other alloys |
| Mesh Count | Standard and custom mesh sizes |
| Wire Diameter | Customized to meet strength and opening requirements |
| Opening Size | Precision aperture control |
| Roll Width & Length | Produced according to customer specifications |
| Sheet Size | Custom-cut panels and sheets |
| Fabrication | Filter discs, cylinders, baskets, cones, welded assemblies |
| Edge Treatment | Cut edge, wrapped edge, welded edge, framed edge |
| Packaging | Export packaging, OEM labels, custom cartons and pallets |
To recommend the most suitable plain weave stainless steel wire mesh and provide an accurate quotation, please provide the following information whenever possible:
Information Required for Customization | |
| Item | Description |
| Application | Filtration, screening, protection, ventilation, separation, or other applications |
| Material Grade | SS304, SS316, SS316L, 310S, 904L, or other specified materials |
| Mesh Count | Required mesh size (e.g., 20 mesh, 100 mesh, 200 mesh) |
| Wire Diameter | Required wire diameter or preferred specification |
| Opening Size | Aperture size, if specified |
| Roll or Sheet Size | Width, length, or cut-to-size dimensions |
| Quantity | Order quantity or annual demand |
| Fabrication Requirements | Filter discs, cylinders, baskets, welded panels, edge treatment, or other fabricated products |
| Working Environment | Operating temperature, corrosive media, pressure, or special working conditions |
| Special Requirements | Surface finish, tolerance, packaging, certifications, or OEM requirements |

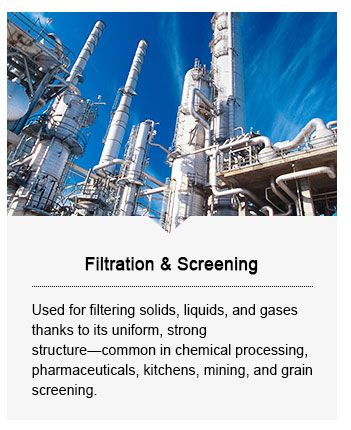

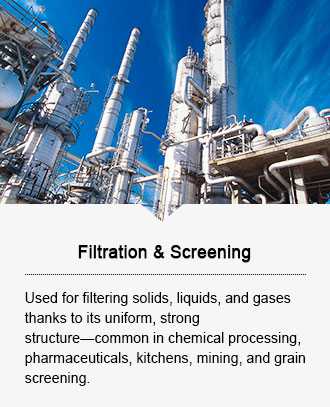

Used for filtering liquids, gases, oils, and chemicals where consistent mesh openings and reliable flow performance are required.
Typical Uses
● Hydraulic filtration
● Lubricating oil filtration
● Chemical filtration
● Industrial process filtration
Provides accurate particle separation for powders, granules, and bulk materials with excellent dimensional stability.
Typical Uses
● Powder screening
● Aggregate classification
● Plastic pellet screening
● Grain processing
Manufactured from food-grade stainless steel, the mesh is suitable for hygienic processing and easy cleaning.
Typical Uses
● Flour sieving
● Food filtration
● Beverage filtration
● Sugar processing
Offers excellent resistance to acids, alkalis, and corrosive chemicals while maintaining filtration accuracy.
Typical Uses
● Chemical filtration
● Catalyst recovery
● Pharmaceutical filtration
● Laboratory equipment
High-strength woven mesh is used for separating ores, minerals, sand, and other abrasive materials.
Typical Uses
● Ore screening
● Sand classification
● Aggregate screening
● Mineral processing
Provides reliable filtration and separation under demanding operating conditions.
Typical Uses
● Mud filtration
● Fuel filtration
● Pipeline strainers
● Wellhead filtration
Suitable for filtration and pretreatment systems requiring corrosion resistance and long service life.
Typical Uses
● Water purification
● Wastewater treatment
● Intake screening
● Industrial water filtration

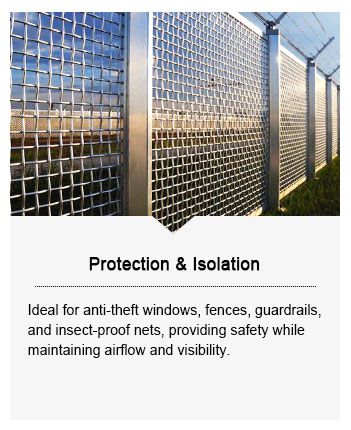

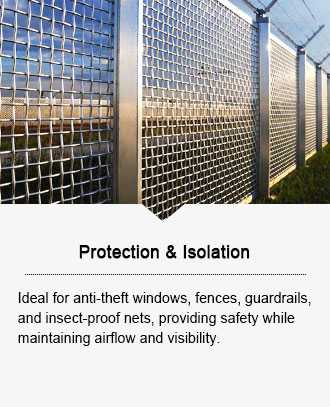

Used as protective barriers where strength, visibility, and ventilation are important.
Typical Uses
● Machine guards
● Equipment enclosures
● Ventilation screens
● Safety barriers
Combines durability with an attractive metallic appearance for interior and exterior projects.
Typical Uses
● Facade panels
● Ceiling systems
● Balustrades
● Decorative partitions
|  |  |

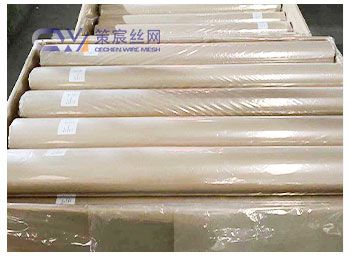

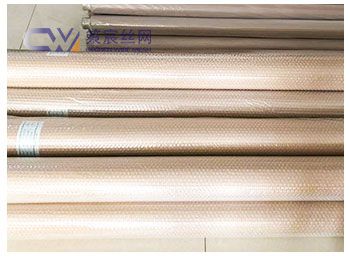

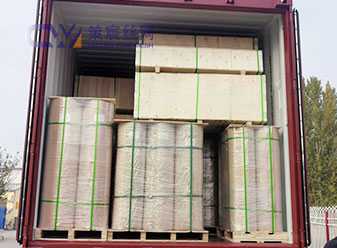

| Moisture-Proof Paper & Plastic Film | Paper Tube or Wooden Core | Export Plywood Cases / Wooden Pallets |
Quality is built into every stage of our manufacturing process. From raw material selection to final inspection, each roll of plain weave stainless steel wire mesh undergoes comprehensive quality control to ensure consistent performance and dimensional accuracy.

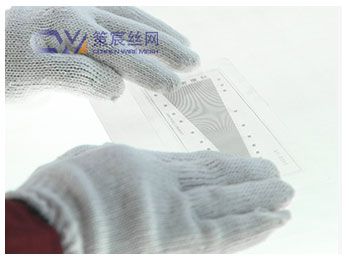

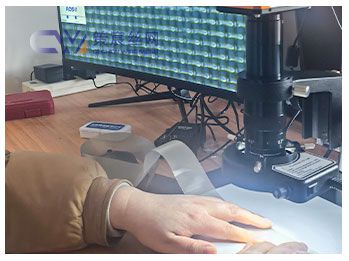

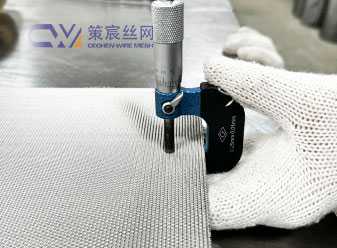

Our inspection process includes mesh count verification, wire diameter measurement, mesh opening inspection, surface quality inspection, and backlight defect detection to identify broken wires, missing wires, uneven openings, and other weaving imperfections. Each product is carefully examined before packaging to ensure it meets customer specifications and international quality standards.
|  |  |

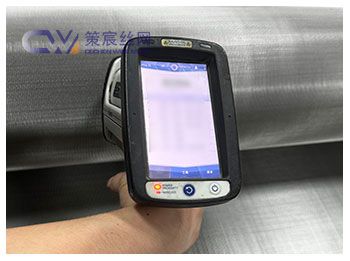

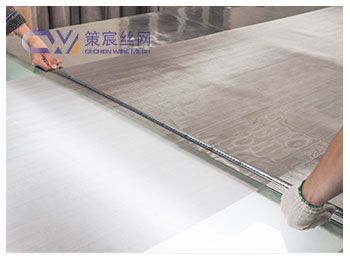

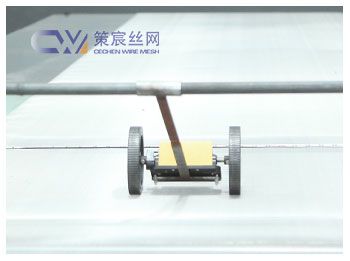

| Composition Analysis Inspection | Length Inspection | Mesh Opening Inspection |
 |  |  |

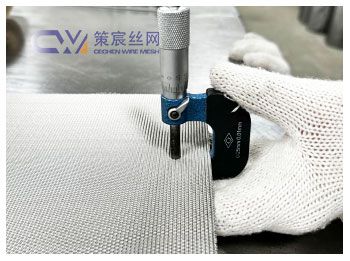

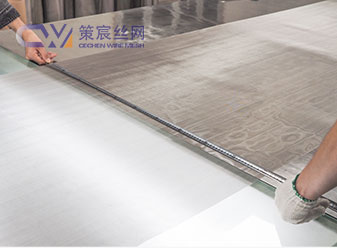

| Width Inspection | Thickness Inspection | Mesh Defect Inspection |
Our plain weave stainless steel wire mesh is manufactured under a strict quality management system to ensure consistent performance and reliable product quality. Depending on the material grade and application requirements, we can provide a range of international certifications and inspection documents to support your procurement and compliance needs.
● ISO 9001 Quality Management System Certification
● SGS Material & Product Inspection Report
● RoHS Compliance Certificate
● REACH Compliance Declaration
● FDA Food Contact Compliance (for applicable materials and applications)
● Mill Test Certificate (EN 10204 3.1)
● Certificate of Origin (CO)
● Commercial Invoice & Packing List
● Material Composition Test Report (available upon request)
With 40 years of experience in stainless steel wire mesh production, we have accumulated extensive expertise to meet a wide range of application needs.

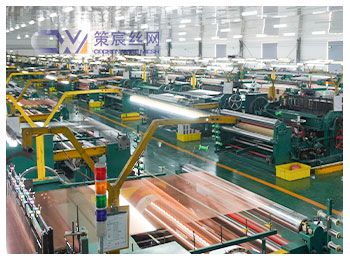

Our strong production capabilities enable us to handle large-volume orders and custom requirements, ensuring a stable supply and consistent quality for our customers.
Strict quality inspection and ISO9001 certification ensure minimal defects, low return rates, and high customer satisfaction.
Our pre-sales and after-sales services are perfect, ensuring you are provided with professional technical support, making the purchase process more assured.
What is plain weave stainless steel wire mesh?
Plain weave stainless steel wire mesh is the most common type of stainless steel woven mesh. It is manufactured by interweaving warp and weft wires in a simple one-over and one-under pattern, creating uniform square openings. This structure provides good strength, stable dimensions, and reliable filtration performance.
What materials are available for plain weave stainless steel mesh?
We mainly produce plain weave stainless steel mesh in 304, 304L, 316, and 316L stainless steel. Other materials such as 310S, 321, and duplex stainless steel can also be customized according to application requirements.
What specifications are available for plain weave stainless steel wire mesh?
Plain weave stainless steel mesh is available in a wide range of mesh counts, wire diameters, opening sizes, and roll widths. Common mesh ranges include 1 mesh to 500 mesh, with customized specifications available based on filtration and screening requirements.
What is the difference between plain weave and Dutch weave stainless steel mesh?
Plain weave mesh features square openings and balanced strength, making it suitable for general filtration and screening. Dutch weave mesh uses a denser wire arrangement and is mainly designed for fine filtration with higher filtration accuracy and particle retention capability.
Can plain weave stainless steel mesh be customized?
Yes. As a professional manufacturer, we provide customized solutions including mesh count, wire diameter, opening size, material grade, width, length, edge treatment, and further processing according to customer requirements.
What certifications can you provide for plain weave stainless steel mesh?
We can provide relevant quality documents and certifications, including ISO 9001 quality management certification, material test reports (MTR), SGS reports, and other documents required for specific applications.
How do you ensure the quality of plain weave stainless steel mesh?
We conduct strict quality inspections during production, including checks for wire diameter, mesh count, opening size, surface quality, and mechanical performance to ensure every batch meets customer requirements.
What is the minimum order quantity for plain weave stainless steel mesh?
The minimum order quantity (MOQ) for plain weave stainless steel mesh depends on the mesh specification, material grade, and order requirements. For standard specifications, we can support flexible quantities, including small trial orders and sample requests. For customized mesh, the MOQ may vary according to production requirements.
Get In Touch
Whether you have a question about our products or services, or simply want to learn more about what we do,we are always here to help.
Products Categories
Contact Us
Hello, welcome to submit any questions and suggestions. We will reply to you as soon as possible. Thank you for your support and help.
Need A Custom Solution?
Our team is filled with seasoned experts who can't wait to help you find the right solution for your business.
Get In Touch
Whether you have a question about our products or services, or simply want to learn more about what we do,we are always here to help.
