Type: 316/316L Welded Mesh & Roll & Sheet
Wire diameter: 0.5 - 6mm
Opening: 20-100mm
Width: 0.4 - 5m
Length: 5m,10m,20m,30m,50m etc.
Our Advantage:
Support Customization
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

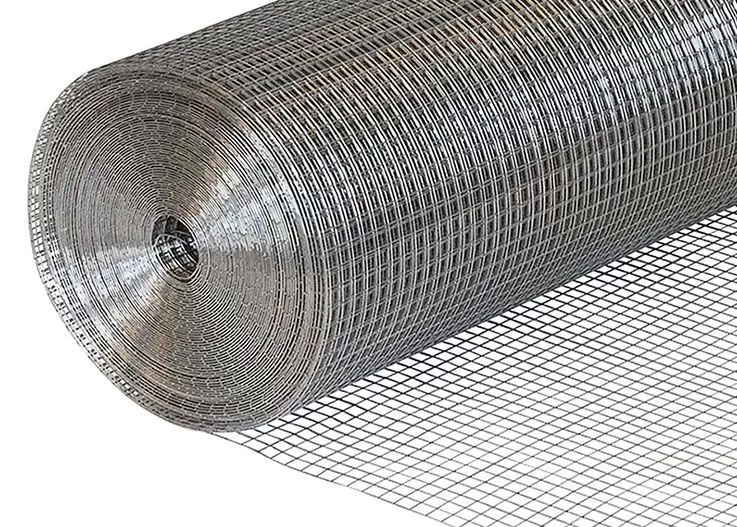

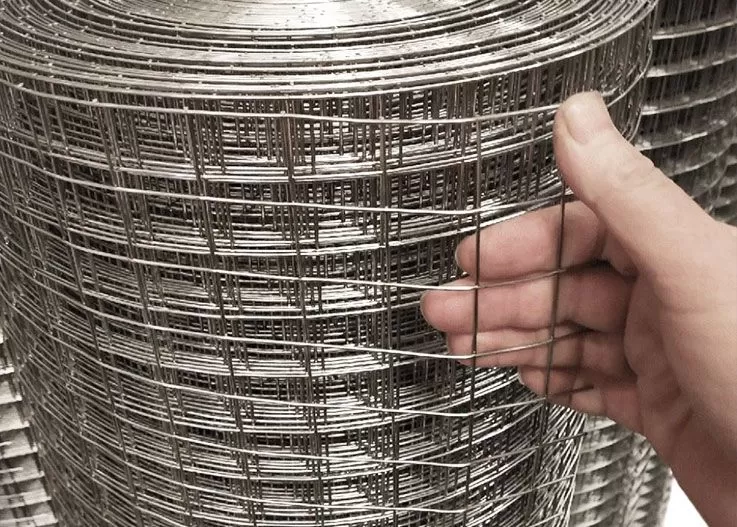

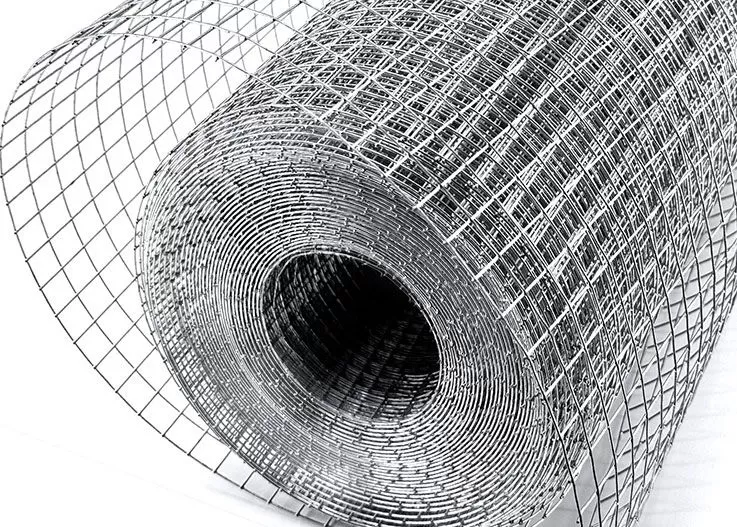

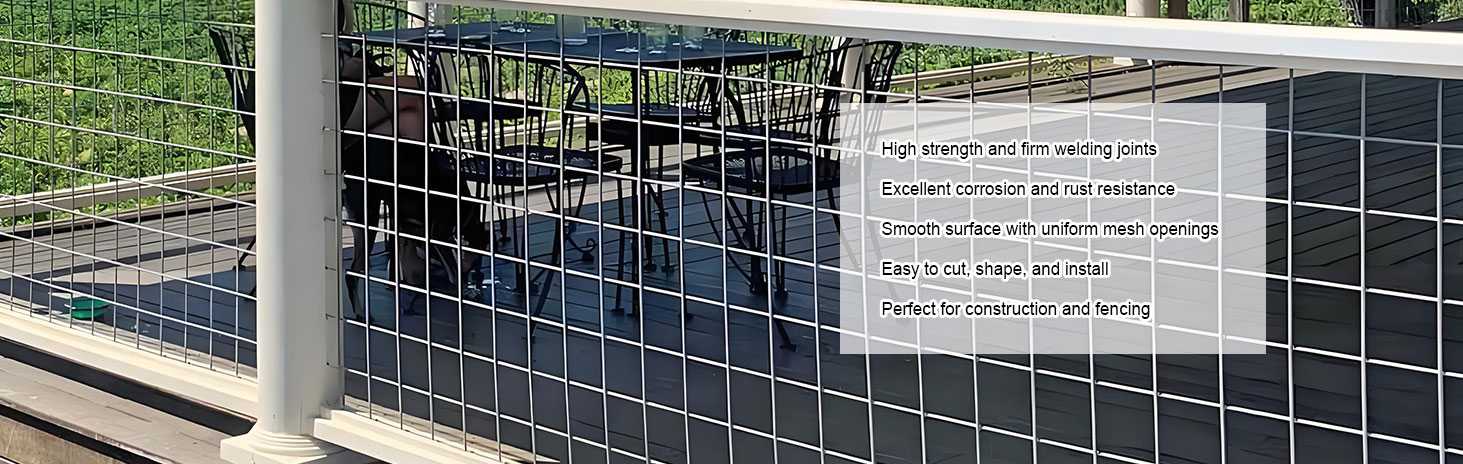

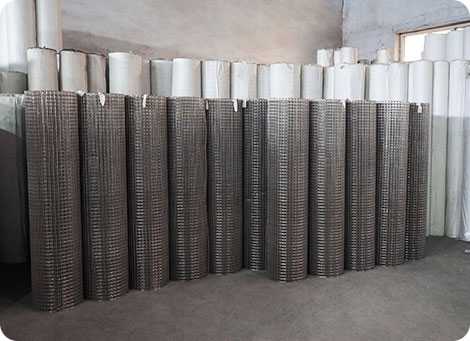

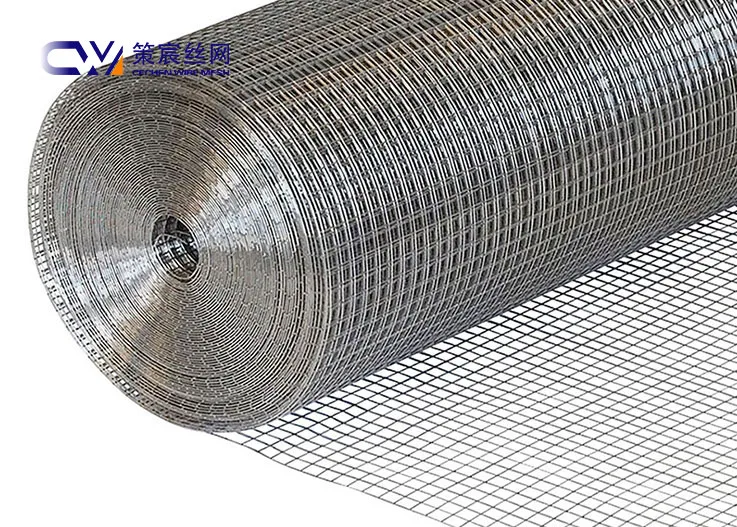

316/316L Stainless Steel Welded Wire Mesh Manufacturer & Supplier
316/316L stainless steel welded wire mesh has excellent corrosion resistance, oxidation resistance and structural stability. It is particularly suitable for highly corrosive environments such as ocean, water treatment, chemical, pharmaceutical and food industries. Therefore, it is often used to make welded mesh for industrial filtration and building fences, etc.
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Comparison of chemical composition of 316/316L
| Steel Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16~18 | 4~3 | 10~14 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16~18 | 2~3 | 12~15 |
316L stainless steel welded mesh is the same as 316 stainless steel welded mesh, but with a very low carbon content and better welding performance. Specifically, the low carbon content helps to minimize the precipitation of carbides during welding, and even in corrosive environments, 316L stainless steel welded mesh can be used without subsequent annealing of the welded joints.
Therefore, for use in welded structures or long-term high temperature environments, Cechen recommends that you choose 316L stainless steel welded mesh, but if it is used under conditions with high mechanical strength requirements and infrequent welding, we recommend that you choose 316 stainless steel welded mesh with a more advantageous price.
1. Super corrosion resistance
2. High strength and stable structure
3. Strong welding, not easy to open welding
4. Excellent high temperature resistance
5. Clean and non-toxic, in line with food/pharmaceutical industry standards
6. A variety of specifications are available, support customization
1. Marine engineering and shipbuilding: used for internal protective mesh, ventilation mesh, walkway guardrail, offshore platform fence, etc.

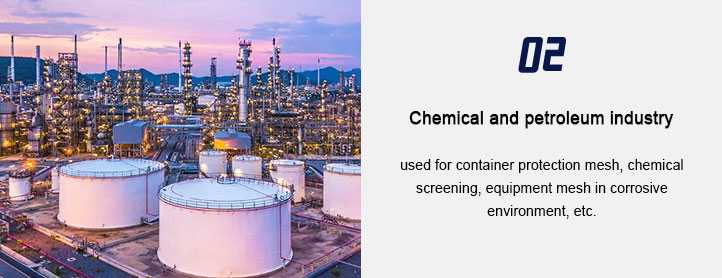

2. Chemical and petroleum industry: used for container protection mesh, chemical screening, equipment mesh in corrosive environment, etc.
3. Food and pharmaceutical industry: suitable for baking tray mesh, meat/aquatic processing support mesh, pharmaceutical purification workshop protection mesh, etc.

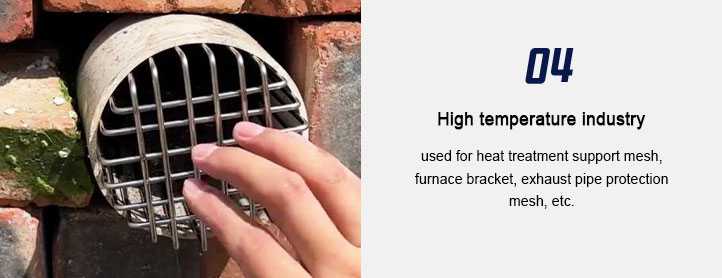

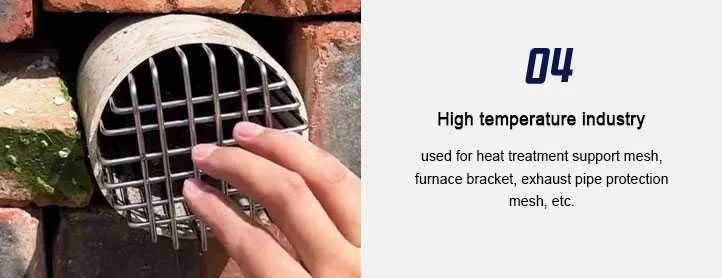

4. High temperature industry: used for heat treatment support mesh, furnace bracket, exhaust pipe protection mesh, etc.

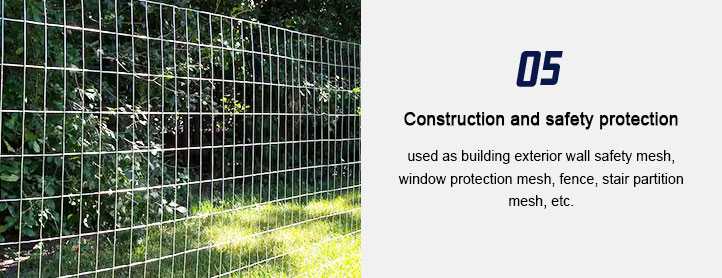

5. Construction and safety protection: used as building exterior wall safety mesh, window protection mesh, fence, stair partition mesh, etc.
6. Agriculture and breeding industry: used for pet cages, bird cages, rabbit cages, breeding fences, etc.
|  |
 |  |
 |  |

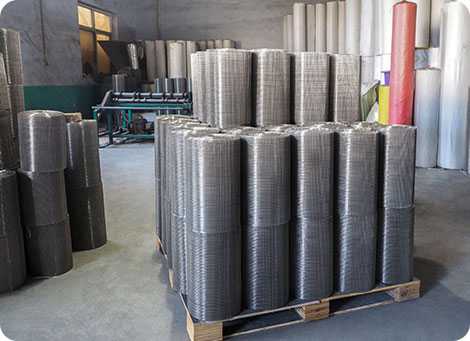

Packaging for 316/316L Stainless Steel Welded Mesh
|  |  |

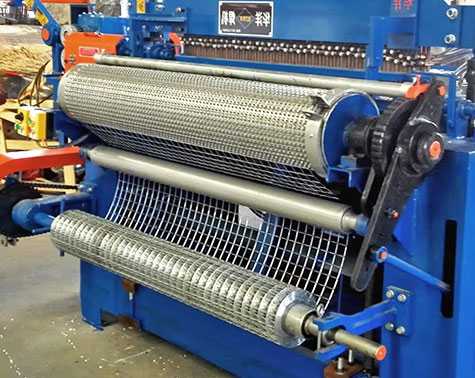

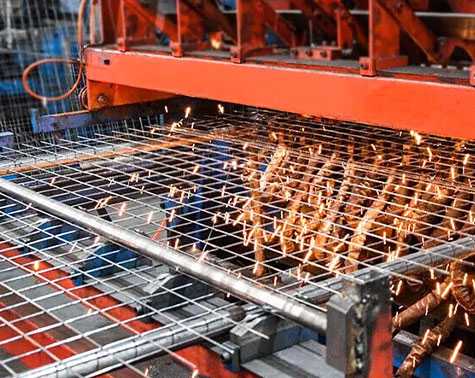

1. We have more than 38 years of production experience, rich production experience and complete production process.

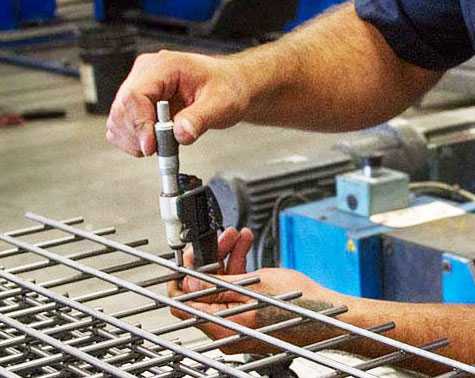

2. We have professional technicians to provide you with product selection support before purchase and provide after-sales guarantee after receiving the goods.
3. Our products comply with ISO9001 international certification, you can buy with confidence.
4. We support sending you free samples for your testing, you only need to pay the shipping fee
5. Our products are exported to more than 30 countries and regions around the world, with rich export experience and complete certificates.
|  |  |
Get In Touch
Whether you have a question about our products or services, or simply want to learn more about what we do,we are always here to help.
Related Products
Stainless steel binding wire, also known as stainless steel tying wire, is a type of metal wire made of stainless steel. It features corrosion resistance, high strength, and durability. We offer a variety of specifications and conditions, including soft annealed tying wire, hard stainless steel tying wire, and available in coils, spools, or cut to length.
Copper Mesh is made from pure copper or high-copper alloys. Copper mesh has a variety of specifications and weaving methods, the most common ones are plain weave, twill weave, etc. In addition, copper mesh is also divided into brass mesh, copper mesh, and phosphor bronze mesh.

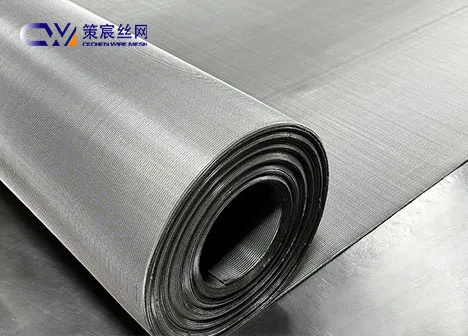

316/316L Stainless Steel Mesh is a metal mesh made of 316 or 316L stainless steel wire. It is widely used in many industries such as chemical industry, food processing, marine environment, etc. due to its excellent corrosion resistance, strength and durability.
