How to Choose a Extruder Screen Mesh?

The preferred choice is a multi-layered extruder screen pack made of 316L stainless steel mesh, employing a gradient combination structure of 20–120 mesh, and ensuring manufacturing precision in accordance with ASTM/ISO standards. This configuration not only guarantees efficient filtration while achieving stable pressure but also significantly extends service life. Furthermore, the high temperature resistance, corrosion resistance, and high strength of 316L material ensure reliability in high-volume, complex operating conditions, or extrusion of materials containing impurities, thereby reducing equipment maintenance frequency, improving production efficiency, and guaranteeing the quality and consistency of the final product.

Catalogue

1. What is an Extruder Screen Mesh?

2. What types Extruder Screen Cechen have?

    ● 2.1 Layer

    ● 2.2 Material

    ● 2.3 Shape

    ● 2.4 Types

3. How to Choose the Wire Mesh for Plastic Recycling？

    ● 3.1 Mesh size and opening dimensions

    ● 3.2 material strength and durability

    ● 3.3 Cost considerations

    ● 3.4 Compatibility with other equipment

4. How to Produce the Extruder Screen Mesh?

    ● 4.1 Wire selection

    ● 4.2 Weaving

    ● 4.3 Cutting and shaping

    ● 4.4 Cleaning and inspection

5. How to Choose an Extruder Screen Mesh Manufacturer?

    ● 5.1 Experience and expertise

    ● 5.2 Quality and consistency

    ● 5.3 Customization options

    ● 5.4 Lead time and delivery

    ● 5.5 Customer service and support

    ● 5.6 Price

6. Conclusion

1. What is an Extruder Screen Mesh?

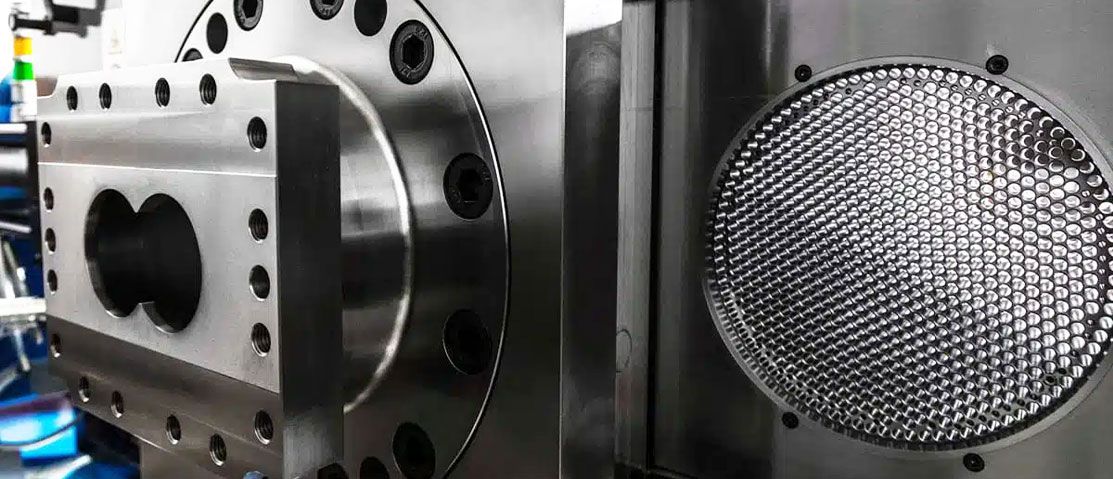

Extruder screens are essential filtration components used in the plastic extrusion process. These precision-engineered mesh screens serve as critical filtering devices that remove contaminants, impurities, and unmelted polymer particles from molten plastic as it passes through an extruder. By providing consistent filtration, extruder screens ensure the final extruded product maintains high quality, superior finish, and structural integrity.

Extruder screens provide a clean and clear extrusion for the melt filtration and plastic extrusion processing machinery. Also called polymer filter screen or melt filter screen. Extruder Screen Mesh are mainly made from high quality SS304, SS316, SS304L, SS316L meshes ranging from 4 mesh to 500 mesh, and used for plastic and rubber industry.

2. What types Extruder Screen Cechen have?

2.1 Layer: single layer or multilayer.

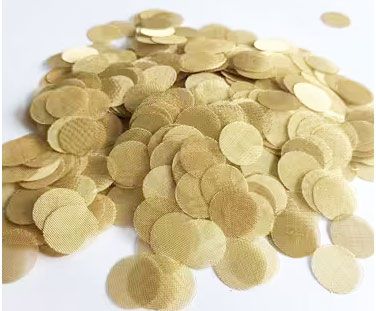

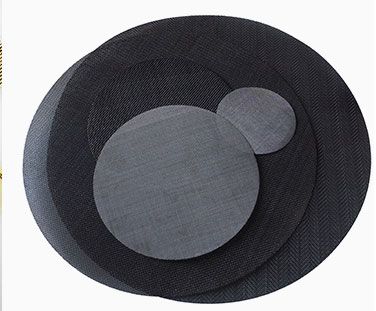

2.2 Material: stainless steel wire mesh, galvanized steel, black wire cloth, nickel alloy, brass wire.

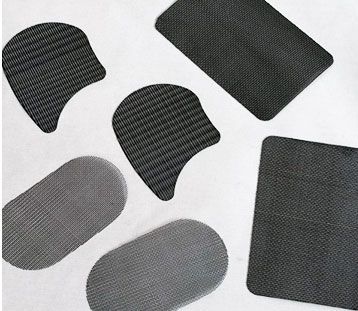

2.3 Shape: circle, disc, square, oval, rectangular, kidney, cones and other special shape.

2.4 Types:

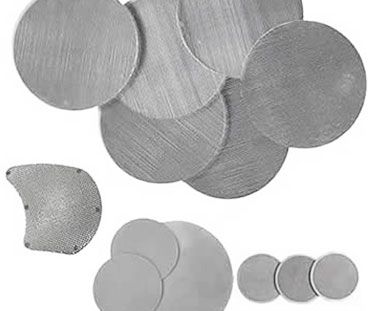

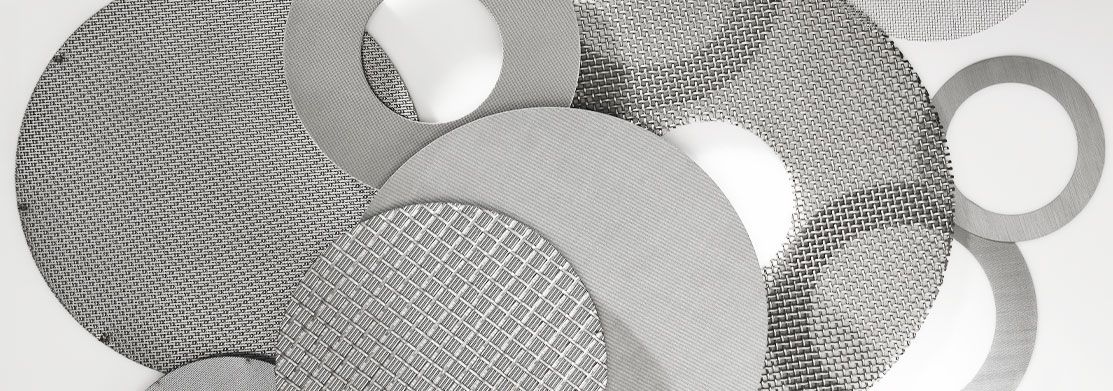

      ● Extruder screen filter disc.

      ● Cylindrical extruder screen.

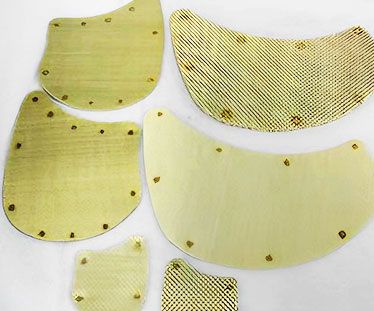

      ● Multilayer extruder screen packs with spot welded and with or without metal frame.

      ● Single layer extruder screen with or without frame.

      ● Woven, perforated, pleated, sintered, expanded metal, etc.

      ● Multilayer and shaped extruder screen packs

3. How to Choose the Wire Mesh for Plastic Recycling？

3.1 Mesh Size and Opening Dimensions

The first and most obvious factor to consider when choosing wire mesh for plastic recycling is the size of the mesh and the opening dimensions. For example, if you are processing plastic flakes, you’ll need a wire mesh with smaller openings to effectively filter out any contaminants or smaller particles that could interfere with the recycling process. On the other hand, if you are dealing with larger pieces of plastic, a mesh with larger openings may be more appropriate to allow for smoother flow.

The size of the mesh and the opening dimensions will also affect the speed and capacity of your recycling system. A fine mesh will provide a higher level of filtration, but it may slow down the process due to its smaller openings. Larger openings, while allowing for higher throughput, may miss smaller contaminants, impacting the final product’s purity.

3.2 Material Strength and Durability

The durability and strength of the wire mesh are critical considerations in choosing the right product for plastic recycling. The wire mesh will need to endure continuous exposure to heavy materials, sharp edges, chemical substances, and even extreme temperatures depending on the nature of the recycling process.

Materials like stainless steel are commonly used for wire mesh in plastic recycling because of their superior resistance to corrosion, rust, and physical wear. Stainless steel is especially suited for environments where the recycling process involves frequent contact with water or other liquids. Additionally, stainless steel meshes are known for their high tensile strength, which means they can withstand mechanical stress without breaking or deforming.

Choosing a material that aligns with the expected operational conditions will ensure that the wire mesh performs optimally over a longer period, reducing maintenance costs and downtime.

3.3 Cost Considerations

While it’s tempting to choose the most durable and efficient mesh, cost remains an important factor when selecting wire mesh for plastic recycling. Wire meshes can vary greatly in price depending on the material, mesh size, and durability. While stainless steel meshes are typically more expensive, they offer longer lifespans and better performance in demanding conditions. For operations on a tight budget, a more economical option such as galvanized steel or carbon steel may be considered, though these may require more frequent replacements and repairs.

It’s also important to factor in the long-term costs of operating a mesh with higher filtration capabilities, such as potential slowdowns in processing time or additional cleaning efforts. Choosing a wire mesh based on your budget should involve considering both upfront costs and long-term operational expenses.

3.4 Compatibility with Other Equipment

The wire mesh you choose must be compatible with other equipment in your plastic recycling system. This includes ensuring that the mesh fits properly within the machines and can handle the materials moving through the system. For instance, the mesh must be able to integrate with conveyor belts, shredders, or washing tanks, depending on your setup.

Compatibility also extends to the wire mesh’s ability to handle vibrations, pressure, and other mechanical forces present in the recycling equipment. It’s essential to select a wire mesh that works harmoniously with the rest of the system to prevent bottlenecks or breakdowns.

4. How to Produce the Extruder Screen Mesh?

The extruder screen is cut from the wire mesh roll by punching with an appropriate mold. While manufacturing the extruder screens, the wire mesh roll is thoroughly checked and passed through vigilant quality control measures. The manufacturing process for an extruder screen involves several steps. The specific process can vary depending on the manufacturer and the type of screen being produced, but some of the common steps include:

4.1 Wire selection: The first step is to select the best quality woven wire mesh for the screen. The wire can be made from various materials, such as stainless steel wire, nickel wire, or copper, and comes in different gauges and diameters.

4.2 Weaving: The selected wire is then woven into a mesh screen which are available in different weave patterns and mesh count. The wire mesh selection must be of the exact specification, the mesh count, the wire diameter, and the weaving pattern should completely match the customer’s specifications.

4.3 Cutting and shaping: Apart from making a single-layer extruder screen filter, we have mastered the art of making multi-layered spot-welded filters and spin pack filters. We have a welding facility where all spot welding works are done with great care and efficiency. Once the woven mesh screen is complete, it is cut and shaped to the desired size and shape. The screen can be circular, rectangular, or any other shape depending on the specific application and requirements.

4.4 Cleaning and inspection: The extruder mesh screen is then cleaned and inspected to ensure that it is free from defects and meets the required specifications.

Cechen wire mesh has the most extensive stock of various types of molds to meet any customized requirement. It helps us to produce the desired screens faster than others, and we don’t even levy the mold cost from the clients unless it is a particular requirement.

5. How to Choose an Extruder Screen Mesh Manufacturer?

5.1 Experience and expertise:

Cechen places great emphasis on research and development. Cechen R & D team is constantly working on improving the design and functionality of their extruder screens. We keep up with the latest industry trends and customer demands, and are able to customize products according to specific requirements.We currently have stable cooperative partners from Europe, Turkey, Southeast Asia, etc.

5.2 Quality and consistency:

Look for a quality wire mesh manufacturer with a robust quality control process and a commitment to producing high-quality screens .Cechen produce extruder screens with extremely precise mesh sizes,uniform and durability mesh structure and High-Temperature Resistance.

5.3 Customization options:

Cechen is concentrate on customizing extruder screens. We can work closely with customers to understand their specific needs, such as the shape, size, and mesh configuration of the screens. This ability to provide customized solutions gives them an edge over many competitors.

5.4 Lead time and delivery:

Look for a manufacturer with a reasonable lead time and a reliable delivery process. Cechen keep you updated on the progress of your order, including any potential delays or issues. You can also reach out to us at any time to get an update. We believe in being transparent with our customers, so you'll always know what's going on with your order.

5.5 Customer service and support:

Look for a manufacturer with a strong commitment to customer service and support. When we met a after-sales issue, our first response is not to shirk responsibility or evade the problem. Instead, Cechen will prioritize the interests of the customers and strive to obtain more detailed product information. We will conduct internal analysis and research to identify the causes and propose solutions. Sales is just the beginning; service is endless.

5.6 Price:

Price is always a factor when making purchasing decisions. Look for a manufacturer that offers competitive pricing without sacrificing quality or service.In order to establish a long-term and stable cooperative relationship, Cechen usually also considered for our clients whether they can sell their products quickly smoothly in their market ? A reasonable price& Stable quality is the foundation for a long-term cooperation.

6. Conclusion

Choosing the right wire mesh for plastic recycling is not a decision to be taken lightly. From the mesh size and material strength to the type of plastic being processed and the overall cost, each factor plays a significant role in the efficiency and success of the recycling process. By understanding these key considerations, you can make a well-informed choice that optimizes your recycling system’s performance, ensures the quality of the recycled materials, and ultimately supports your company’s bottom line.
