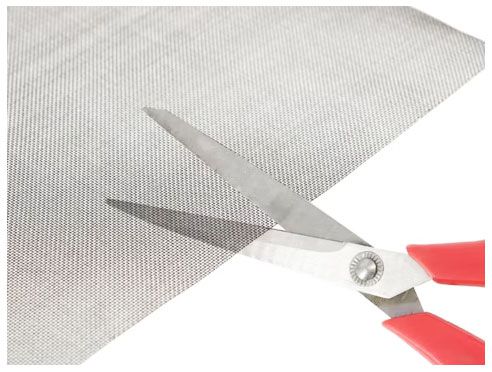

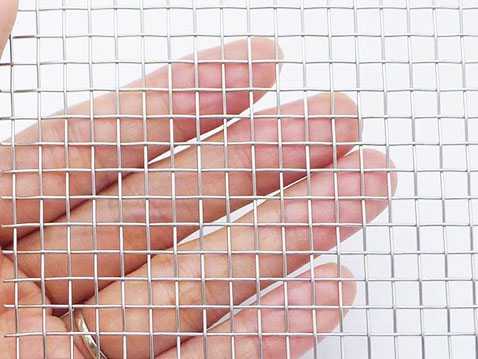

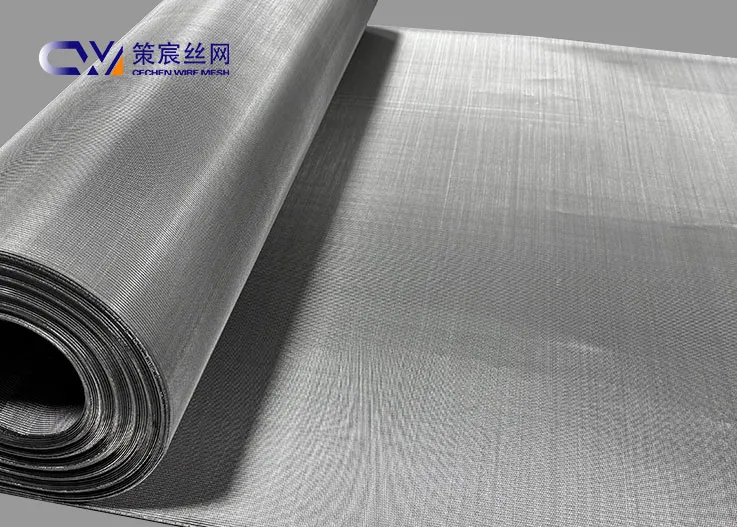

Material: 316/316L stainless steel wire mesh
Diameter: 0.016-5mm or customized
Size: 1-2800mesh Or customized
Type: Woven/Welded
Standard: AISI, ASTM, JIS, DIN, EN, BS
Lead Time: Stock or 3-10 days or according to quantity
Weaving method: Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave,5 Heddle Weave, Reverse Plain Dutch Weave, Reverse Twill Dutch Weave, Crimped.
Our Advantage:
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

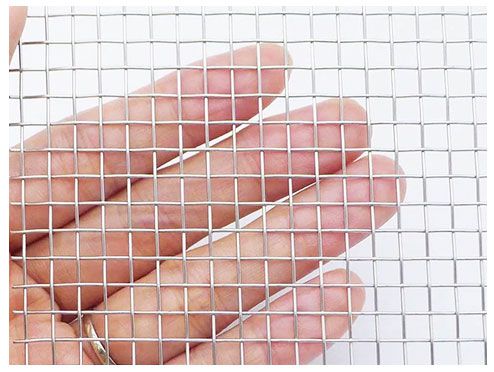

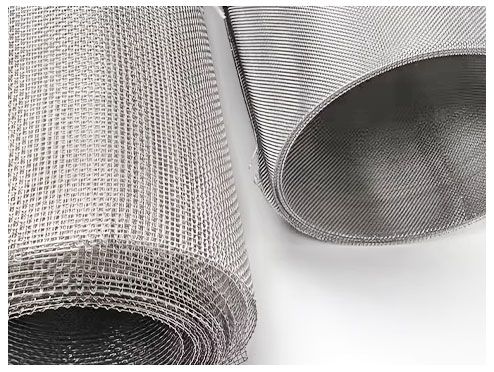

We are a professional manufacturer of 316/316L stainless steel wire mesh, possessing a complete production system for wire drawing, weaving, and deep processing, enabling us to provide high-quality, customized wire mesh solutions. Our 316/316L stainless steel wire mesh is made of molybdenum-containing austenitic stainless steel, exhibiting excellent corrosion resistance, particularly suitable for seawater, chlorine-containing, or chemical media environments.
It is more resistant to pitting and crevice corrosion than 304 stainless steel mesh, while the low carbon content of 316L ensures minimal intergranular corrosion during welding and high-temperature processing. Our stainless steel wire mesh is available in various weaves, including plain weave and twill weave, with precise aperture and consistent wire diameter, suitable for various filtration, screening, and separation applications. Products can be supplied in rolls, sheets, filter cartridges, and other deep-processed components according to customer requirements, and OEM/ODM customization is supported, including mesh count, wire diameter, aperture ratio, and strength parameters.
316/316L stainless steel wire mesh is widely used in chemical, petrochemical, pharmaceutical, food and beverage, seawater desalination, water treatment and environmental protection industries. It can work stably for a long time in high temperature, high humidity and corrosive environments. We also provide material certification and technical support to ensure that every batch of products meets strict industry standards and customer requirements.
| Steel Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16~18 | 4~3 | 10~14 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16~18 | 2~3 | 12~15 |
● Exceptional Corrosion Resistance: Made from molybdenum-bearing austenitic stainless steel, our mesh withstands seawater, chlorides, and harsh chemical environments, offering superior resistance to pitting and crevice corrosion compared to 304 stainless steel.
● High-Precision Apertures: Advanced tension-controlled weaving ensures uniform mesh openings and consistent open area, delivering efficient filtration and screening while minimizing clogging and dead zones.
● High mechanical strength: can withstand high pressure and strength requirements.
● Good high temperature performance: suitable for filtering and screening work in high temperature environment.
● Strong processability: can be processed into roll net, sheet net or welded products according to needs.
● Sanitary safety: meets food grade and medical grade standards, non-toxic and harmless.
● Various weaving types: such as plain weave, twill weave, Dutch weave, etc., to meet the filtering needs of different precisions.
● Strength and Durability: Each wire undergoes stress-regulated drawing for consistent diameter and excellent fatigue resistance, enabling stable performance in high-temperature, high-humidity, or long-term operating conditions.
● Customizable Production: Wire diameter, mesh count, aperture, weave type, and mesh structure can be tailored to meet specific industrial applications and unique operational requirements.
● Low Maintenance, Long Service Life: Corrosion- and wear-resistant properties reduce maintenance frequency, extend equipment life, and lower overall operational costs.
● Manufacturer Advantage: As a direct manufacturer, we provide material certifications, technical support, and full traceability, ensuring every batch meets strict quality standards and customer specifications.

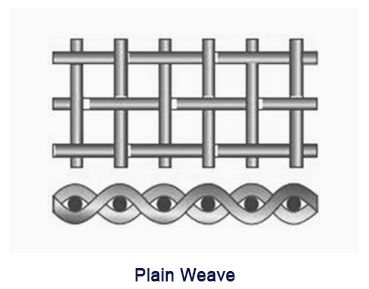

● Plain Weave: Each warp wire alternates over and under each weft wire, creating a simple and sturdy structure with uniform openings. Ideal for general filtration, screening, and separation applications.

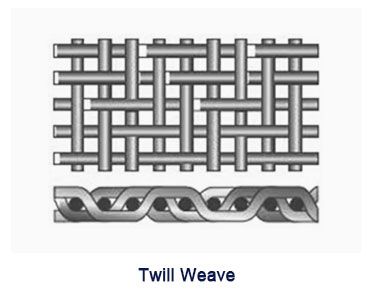

● Twill Weave: Warp and weft wires cross over multiple strands in a diagonal pattern, producing a stronger mesh with more stable apertures. Suitable for high-strength filtration or demanding operating conditions.

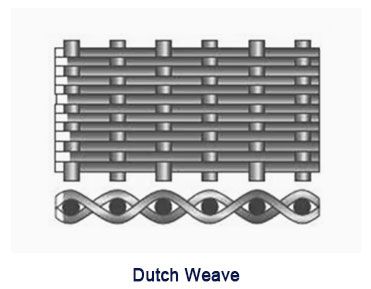

● Dutch Weave: Features thicker warp wires and finer weft wires, forming a dense mesh with precise micro-apertures. Commonly used for liquid and gas filtration or fine particle separation.

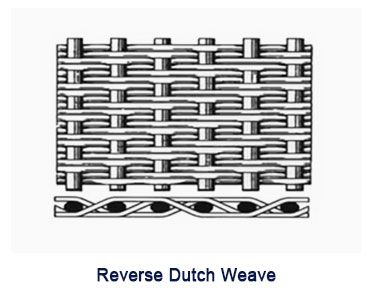

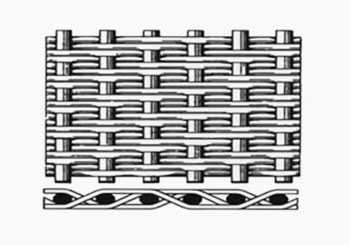

● Reverse Dutch Weave: Finer warp wires and thicker weft wires create a tight, pressure-resistant mesh, designed for specialized micro-filtration applications in industrial processes.
We provide fully customizable weave types, wire diameters, and mesh counts to meet specific filtration requirements and industrial applications.
316/316L Stainless Steel Mesh Specifications | ||
| Mesh | Wire Diameter (mm) | Aperture (mm) |
| 2 mesh | 1.50 | 7.0 |
| 4 mesh | 1.20 | 5.0 |
| 10 mesh | 0.80 | 2.0 |
| 20 mesh | 0.60 | 0.8 |
| 40 mesh | 0.40 | 0.35 |
| 60 mesh | 0.30 | 0.20 |
| 80 mesh | 0.25 | 0.15 |
| 100 mesh | 0.20 | 0.12 |
| 120 mesh | 0.18 | 0.10 |
| 200 mesh | 0.10 | 0.07 |
| 300 mesh | 0.08 | 0.05 |
| 400 mesh | 0.06 | 0.04 |
| 500 mesh | 0.05 | 0.03 |
Notes:
● The above parameters are standard references and can be customized based on customer requirements for wire diameter, mesh count, aperture, and weave type.
● Open area may vary slightly depending on wire diameter and weave structure.

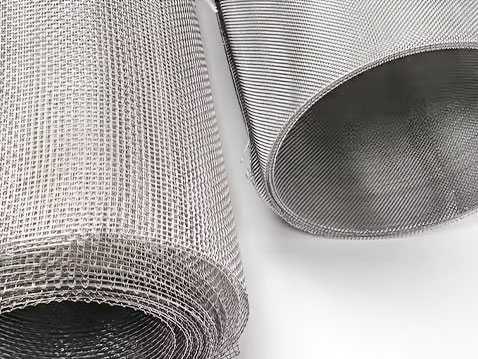

● We provide rolls, sheets, discs, and custom fabricated mesh products to meet various industrial filtration and screening needs.

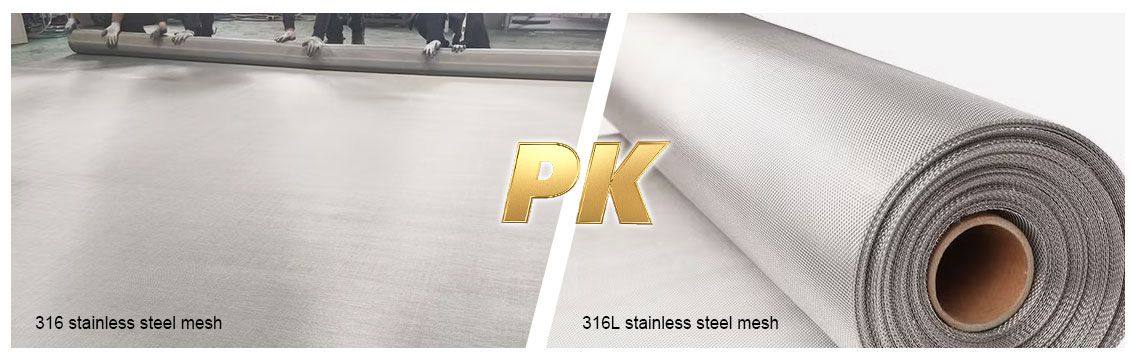

Comparison – 316 vs 316L Stainless Steel Mesh | |||
| Item | 316 Stainless Steel Mesh | 316L Stainless Steel Mesh | Difference & Application |
| Carbon Content | Max 0.08% | Max 0.03% | 316L’s low carbon reduces the risk of intergranular corrosion during welding or heat treatment |
| Corrosion Resistance | Good | Superior | Both resist acids and alkalis, but 316L performs better in welded areas and highly corrosive environments |
| Weldability | Standard | Excellent | Low-carbon 316L minimizes corrosion in weld zones, ideal for welded mesh products |
| Mechanical Strength | High | Slightly lower | 316 offers slightly higher strength; 316L is sufficient for most filtration and screening applications |
| Operating Temperature | -200℃ to 400℃ | -200℃ to 400℃ | Both suitable for similar temperature ranges |
| Typical Applications | General chemical, food, pharmaceutical, seawater equipment | Precision filtration, high-corrosion environments, welded mesh products | 316L is preferred for long-term corrosion resistance and welded applications |
| Cost | Relatively lower | Relatively higher | 316L costs slightly more due to low-carbon advantage but offers longer durability |
Summary:
● 316 Stainless Steel Mesh: High strength and cost-effective, suitable for most industrial filtration, screening, and separation applications.
● 316L Stainless Steel Mesh: Low carbon, superior weldability, ideal for harsh corrosive environments or precision applications requiring welded components.
As a manufacturer, we provide both 316 and 316L stainless steel mesh and can customize wire diameter, mesh count, aperture, and weave type to meet specific industrial requirements.

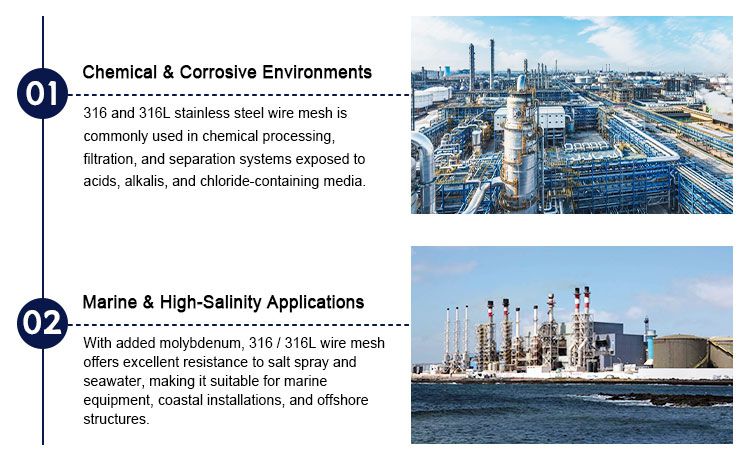

316 and 316L stainless steel wire mesh, with their excellent corrosion resistance, high-temperature resistance, and structural stability, are widely used in industries such as chemical, oil and gas, food and pharmaceutical, water treatment, electronics, marine engineering, building protection, environmental protection equipment, and powder screening.
Chemical and Petrochemical Industries
● Filtration and screening in acidic and alkaline environments: used for solid-liquid separation and impurity filtration in sulfuric acid, hydrochloric acid, acetic acid, and chloride media.
● Tower internal components: used as packing support mesh, demister mesh, and separation mesh.
● Catalytic reactors: used as catalyst carrier support mesh, resistant to chloride pitting and crevice corrosion.
Marine and Salt Spray Environments
● Seawater desalination pre-filtration and fine filtration.
● Offshore platform protective netting, bird netting, and fall protection netting.
● Ship drainage system filtration and ventilation insect control netting.
Oil and Gas Industry
● Sand control screen pipes and screen cylinder liners.
● Oil sludge and drilling fluid filtration.
● Fine solid-liquid separation components.
Environmental Protection and Water Treatment Industry
● Reverse osmosis system pretreatment filtration.
● Wastewater treatment aeration device protection mesh.
● Membrane module protective screens and support meshes.

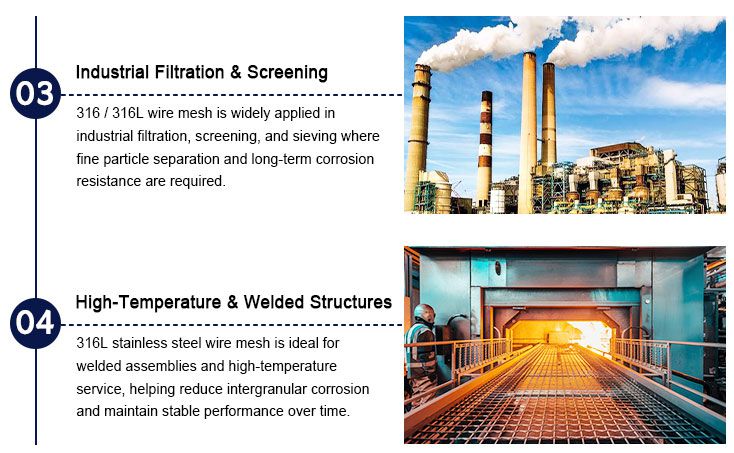

High Temperature and Heat Treatment Industry
● Heat treatment trays and sintering support meshes.
● Kiln conveyor belt meshes.
● Heat-resistant screening structures.
Whether used for fine filtration, solid-liquid separation, powder classification, equipment protection, or as structural support mesh, 316/316L stainless steel wire mesh maintains stable aperture accuracy and mechanical strength under complex working conditions, thereby improving system operational safety and service life, and meeting the comprehensive needs of different industries for corrosion-resistant, high-cleanliness, and high-strength screen materials.

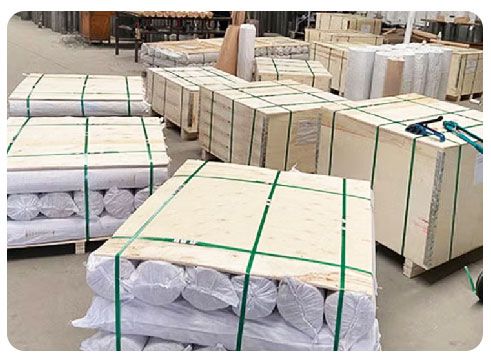

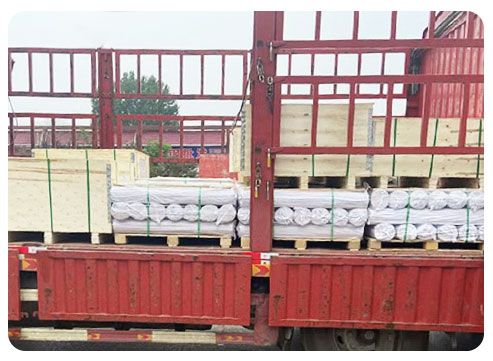

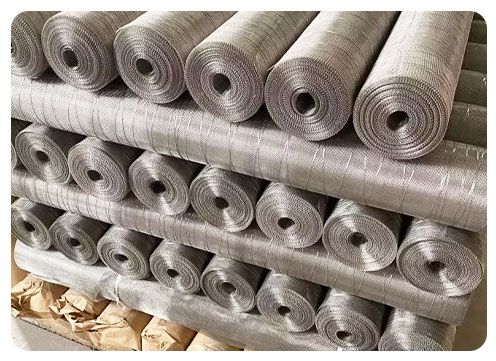

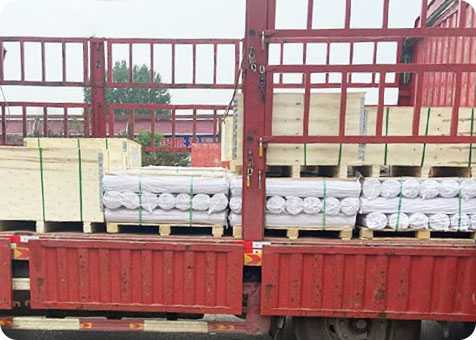

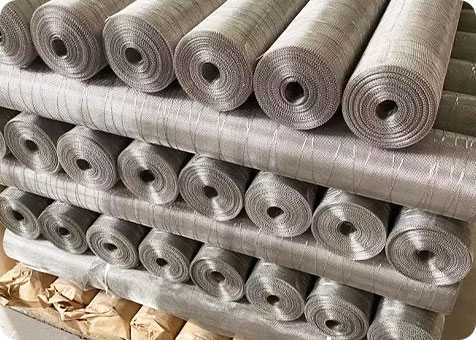

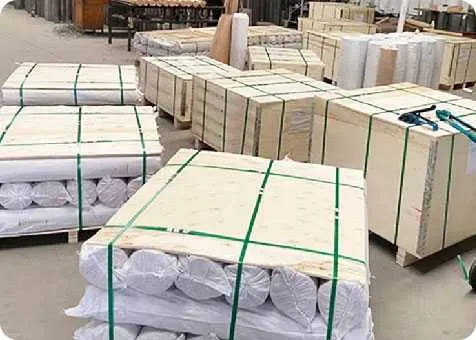

Rolled wire mesh products are typically wrapped in waterproof kraft paper or plastic film, reinforced with woven bags or wooden crates to prevent deformation during transport. Sheet wire mesh and cut wire mesh are mostly packaged with cardboard dividers and wooden pallets to protect edges and corners from damage. For high-precision screens or cleanroom applications, we offer individually sealed roll packaging and anti-static, dustproof packaging solutions.
We also support customized packaging services, including customer labeling, barcode marking, customized pallet sizes, fumigation-free wooden crates, and export standard packaging for easy warehousing and distribution. Each batch of products undergoes visual and dimensional inspection before leaving the factory, and the packaging includes complete specification labels, material identification, and batch number traceability information to ensure traceability in logistics and quality management.
We are a professional stainless steel wire mesh manufacturer with our own factory and complete production equipment. Every batch of wire mesh is produced and tested in our factory, eliminating any middlemen. This means you receive products with more reliable quality and more stable performance.
Our team is familiar with every wire and every mesh opening, combining mature weaving techniques with advanced equipment to ensure high precision and long service life. Direct shipping from the factory not only ensures faster delivery but also allows you to enjoy our comprehensive technical support and customized services. Choosing us means choosing a trustworthy, professional, and considerate partner.
Our 316/316L stainless steel wire mesh undergoes rigorous domestic and international testing and certification to ensure that every batch meets high industrial standards. As a professional manufacturer, our products are ISO 9001 quality management system certified, guaranteeing standardization and traceability in production processes, raw materials, and outgoing inspections. They are also CE certified, complying with EU safety and industrial equipment standards and suitable for the European market. Each batch of wire mesh also undergoes SGS international third-party testing, including tensile strength, aperture accuracy, open area ratio, corrosion resistance, and high-temperature resistance tests, ensuring long-term reliability in various industrial applications.
Furthermore, our wire mesh conforms to multiple international metal wire mesh and material standards, such as ASTM E11, ASTM E2016, EN 10204 material certification, JIS G 3552, and DIN 4181/2401 standards, meeting the high requirements of industries such as chemical, pharmaceutical, food, marine, environmental protection, and precision filtration. With a comprehensive testing system and strict quality control, we can provide customers with high-precision, high-stability, and traceable wire mesh products, providing reliable assurance for industrial applications under complex conditions.

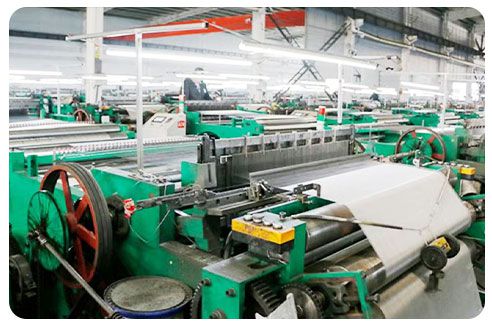

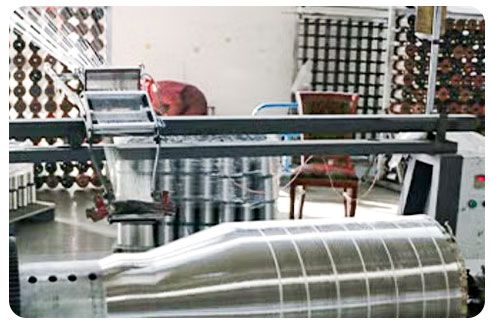

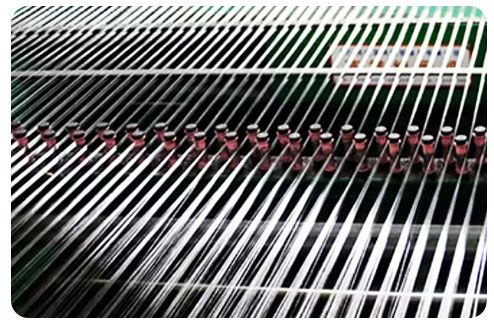

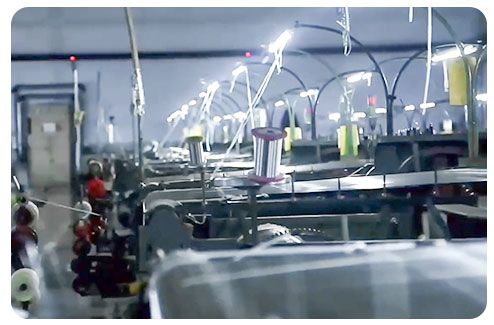

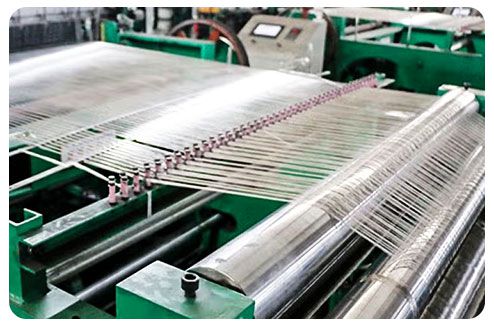

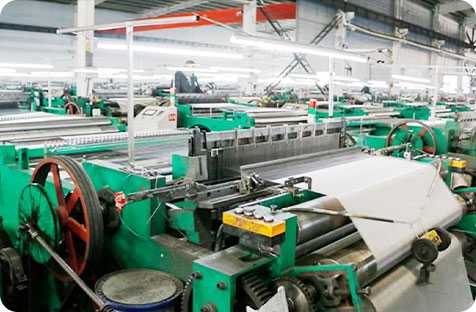

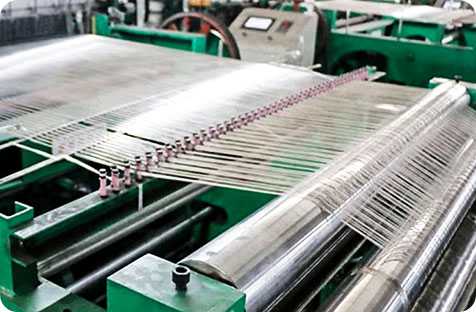

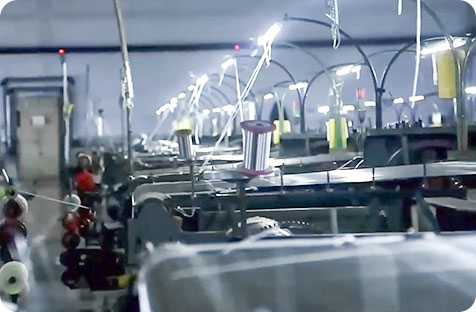

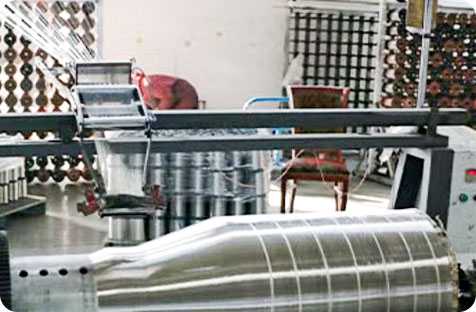

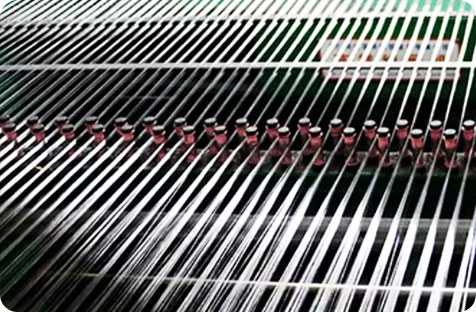

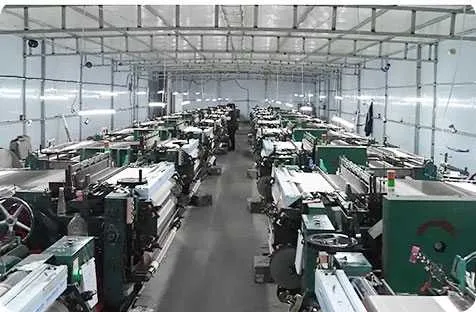

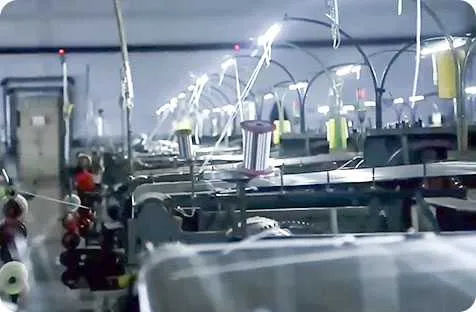

Our production workshop is equipped with advanced wire drawing machines, automatic tension control looms, and a high-precision aperture detection system, ensuring that the diameter of each wire, each mesh opening, and the open area ratio meet stringent consistency requirements. This not only guarantees the filtration accuracy and screening stability of the wire mesh but also ensures long-term reliable use of the product in complex environments such as high temperature, high pressure, acid and alkali conditions, and marine environments.
In terms of process technology, we have accumulated years of experience in weaving optimization. Whether it's plain weave, twill weave, Dutch weave, or reverse Dutch weave, we can precisely adjust the weaving tension, wire diameter combination, and aperture structure according to customer needs, achieving customized wire mesh with high precision, high strength, and high durability. Our process not only ensures uniform aperture and a flat mesh surface but also enhances the performance of the wire mesh in welding or deep processing applications.
