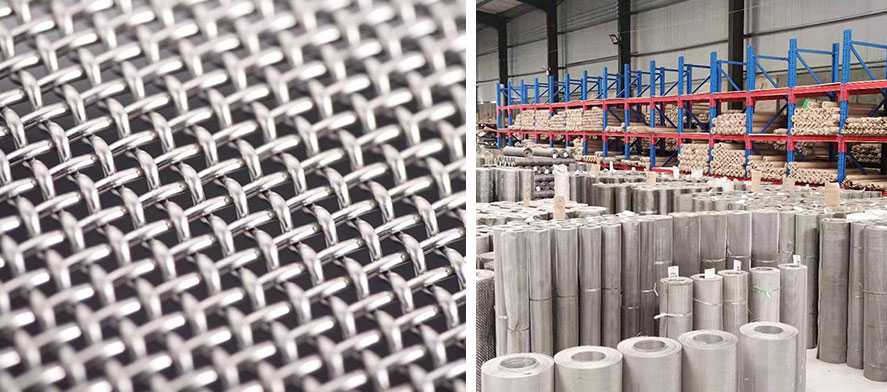

Choosing the right Plain Weave Stainless Steel Mesh is not simply about selecting a mesh count. The ideal mesh depends on your application, filtration accuracy, operating environment, mechanical strength, and material grade. When selecting woven stainless steel mesh, buyers should first determine the required filtration opening or particle size, then consider the appropriate wire diameter, mesh count, stainless steel grade (such as 304, 316, or 316L), and overall durability requirements. Factors including corrosion resistance, temperature exposure, airflow, pressure drop, and mechanical strength also play an important role in ensuring long-term performance. A mesh that performs well in industrial filtration may not be suitable for insect screening, architectural applications, or high-temperature processing.
This guide explains the key specifications, selection criteria, and common application scenarios to help engineers, distributors, and industrial buyers quickly identify the most suitable Plain Weave Stainless Steel Wire Mesh for their projects while avoiding unnecessary costs or over-specification.
The working principle of Plain Weave Stainless Steel Wire Mesh is based on its uniform and precisely woven mesh structure. During the weaving process, the warp wires and weft wires are interlaced in an alternating over-and-under pattern, creating evenly distributed openings of consistent size. These mesh openings allow the wire mesh to separate, filter, and isolate particles, liquids, or gases according to the required opening size, making it suitable for a wide range of industrial processing and filtration applications.
Because the plain weave structure provides evenly distributed interlacing points, mechanical stress is balanced across the entire mesh. This gives the wire mesh excellent dimensional stability and reliable filtration accuracy, allowing it to maintain consistent performance even during continuous operation or under demanding working conditions.
Plain weave is the most fundamental and widely used weaving technique for stainless steel wire mesh.
During the weaving process, warp and weft wires interlace in an alternating over-and-under pattern; specifically, each weft wire passes alternately over one warp wire and then under the next, a sequence that repeats across the entire width of the mesh. Adjacent weft wires follow the opposite pattern—if one weft wire begins by passing over a warp wire, the next passes under it.
Plain weave stainless steel wire mesh is highly valued for its excellent balance of strength, precision, and versatility. Its simple "over-one, under-one" weave pattern creates a structurally stable mesh with uniform, square-shaped openings, ensuring consistent filtration and screening performance. Compared to more complex weave patterns, plain weave mesh offers superior dimensional stability, a high open area, and reliable mechanical properties. Combining high precision with a long service life, it has become one of the most widely used woven wire mesh products globally.
● Uniform & Accurate Mesh Openings
● Excellent Mechanical Strength
● Superior Corrosion Resistance
● Wide Range of Filtration Precision
● Smooth Surface & Easy Maintenance
● High Temperature & Wear Resistance
● Excellent Airflow & Open Area
● Versatile Industrial Applications
● Long Service Life
● Available in Custom Specifications
Plain weave is the most basic and widely used weaving method for stainless steel wire mesh. In this structure, the warp wires and weft wires are interwoven in a simple over-and-under alternating pattern, forming a uniform, stable, and evenly distributed mesh structure.
● Compared with Twill Weave Stainless Steel Mesh, plain weave has more interlacing points, as each warp wire and weft wire intersects and locks at every crossing. This creates a flatter mesh surface with excellent dimensional stability.
● Twill weave, on the other hand, follows a pattern such as over two, under two (or similar variations), resulting in a denser wire arrangement. This structure is better suited for higher mesh counts and high-precision filtration applications.
● Compared with Dutch Weave Stainless Steel Mesh, plain weave typically uses warp and weft wires of the same or similar diameters, producing clearly visible and uniform openings with a relatively high open area. This allows for excellent airflow and liquid flow performance.
● Dutch weave, however, combines warp and weft wires of different diameters to create an extremely dense mesh with openings that may be difficult to distinguish with the naked eye. As a result, it is widely used in high-precision liquid filtration, gas filtration, and pressure filtration applications.
In addition, plain weave is a well-established manufacturing process with high production efficiency and a wide range of available specifications. It is suitable for a broad variety of applications, from coarse screening to general industrial filtration. Owing to its balanced performance, reliability, and cost-effectiveness, plain weave remains the preferred weaving method for many industries, including food processing, chemical processing, mining, pharmaceuticals, environmental protection, and industrial filtration.
The main specifications of plain weave stainless steel wire mesh include Mesh Count, Wire Diameter, Aperture, Width, and Length. When selecting Plain Weave Stainless Steel Wire Mesh, understanding its specifications is essential for choosing the right product for your application. Different specifications determine the mesh's filtration accuracy, mechanical strength, flow performance, and suitability for various working environments.
Typical Specifications of Plain Weave Stainless Steel Wire Mesh | |
| Parameter | Typical Specification |
| Material | SS201, SS202, SS304, SS304L, SS316, SS316L, SS310S, SS321, Duplex 2205, Super Duplex 2507 |
| Weave Type | Plain Weave |
| Mesh Count | 1–635 mesh |
| Wire Diameter | 0.02–4.00 mm |
| Aperture Size | 0.02–23.37 mm |
| Open Area | Approximately 25%–70% (depending on mesh count and wire diameter) |
| Roll Width | 0.5 m, 1.0 m, 1.22 m, 1.5 m, 2.0 m, Custom Width |
| Roll Length | 30 m Standard, Custom Length Available |
| Surface Finish | Bright Annealed (BA), Pickled, Electropolished (Optional) |
| Edge Type | Raw Edge, Trimmed Edge, Welded Edge (Fabricated Products) |
| Manufacturing Standard | ASTM E2016, ASTM E11, ISO 9044, ISO 4783 |
| Supply Form | Rolls, Sheets, Discs, Cut-to-Size Panels, Filter Tubes, Filter Elements |
| Customization | Mesh Count, Wire Diameter, Width, Length, Material Grade, Fabricated Components |
| Most Common Plain Weave Stainless Steel Wire Mesh Specifications | |||
| Mesh Count | Wire Diameter (mm) | Aperture (mm) | Open Area (%) |
| 4 × 4 | 1.20 | 5.15 | 65.8 |
| 8 × 8 | 0.80 | 2.38 | 56.3 |
| 10 × 10 | 0.60 | 1.94 | 58.3 |
| 12 × 12 | 0.50 | 1.62 | 58.5 |
| 14 × 14 | 0.45 | 1.36 | 56.3 |
| 16 × 16 | 0.40 | 1.19 | 56.2 |
| 20 × 20 | 0.40 | 0.87 | 46.9 |
| 24 × 24 | 0.35 | 0.71 | 44.9 |
| 30 × 30 | 0.30 | 0.55 | 42.1 |
| 40 × 40 | 0.23 | 0.41 | 41.7 |
| 50 × 50 | 0.20 | 0.31 | 38.2 |
| 60 × 60 | 0.19 | 0.23 | 31.3 |
| 80 × 80 | 0.12 | 0.20 | 40.0 |
| 100 × 100 | 0.10 | 0.154 | 36.8 |
| 120 × 120 | 0.08 | 0.132 | 38.9 |
| 150 × 150 | 0.065 | 0.104 | 37.7 |
| 200 × 200 | 0.053 | 0.074 | 33.9 |
| 250 × 250 | 0.040 | 0.062 | 37.2 |
| 300 × 300 | 0.038 | 0.047 | 30.8 |
| 325 × 325 | 0.035 | 0.043 | 30.2 |
| 400 × 400 | 0.028 | 0.036 | 31.9 |
Mesh count refers to the number of openings per linear inch (25.4 mm) of the wire mesh and is one of the most important indicators of mesh density. For example, 20 mesh means there are 20 openings per inch, while 100 mesh means there are 100 openings per inch. In general, a higher mesh count results in smaller openings and higher filtration precision, whereas a lower mesh count provides larger openings and higher flow capacity, making it more suitable for coarse screening and general filtration applications.
Wire diameter refers to the thickness of the stainless steel wire used to weave the mesh. It is typically measured in millimeters (mm) or inches (in). Wire diameter directly affects the mechanical strength, aperture size, and open area of the wire mesh. With the same mesh count, a thicker wire produces smaller openings and greater mechanical strength but reduces the open area and flow capacity. Conversely, a thinner wire provides a larger open area and higher flow rate while offering lower mechanical strength.
Aperture is the actual opening between adjacent warp and weft wires and is one of the key parameters that determines filtration performance. A smaller aperture can retain finer particles and is suitable for precision filtration, while a larger aperture allows higher flow rates and is commonly used for particle screening, ventilation, and general filtration.
Width refers to the overall width of the wire mesh roll or sheet. Common standard widths include:
● 0.5 m、1.0 m、1.2 m、1.5 m、Custom widths available
Length refers to the longitudinal dimension of each wire mesh roll or sheet.
Common roll lengths include:
● 10 m、30 m、50 m、100 m
Plain Weave Stainless Steel Wire Mesh is commonly manufactured from 304, 304L, 316, 316L, and other special stainless steel grades. Different materials provide different levels of corrosion resistance, temperature resistance, mechanical strength, and cost. Among them, SS304 and SS316 are the most widely used grades, while higher-alloy materials are selected for more demanding working environments.
| Material Grade | Main Characteristics | Corrosion Resistance | Relative Cost | Typical Applications |
| SS304 | Good corrosion resistance, excellent strength, economical and versatile | ★★★★☆ | Low | General filtration, food processing, air filtration, screening |
| SS304L | Low carbon version of 304, better welding performance | ★★★★☆ | Low-Medium | Welded filter parts, chemical and food equipment |
| SS316 | Contains molybdenum, better resistance to chlorides and chemicals | ★★★★★ | Medium-High | Marine filtration, chemical industry, pharmaceutical filtration |
| SS316L | Low carbon 316 with higher corrosion resistance and cleanliness | ★★★★★ | High | Medical, pharmaceutical, high-purity filtration |
| SS310S | Excellent high-temperature oxidation resistance | ★★★★☆ | High | Furnace filtration, heat treatment applications |
| SS321 | Titanium stabilized, suitable for high-temperature environments | ★★★★☆ | High | Petrochemical, heat-resistant applications |
| Duplex 2205 | High strength and excellent stress corrosion resistance | ★★★★★ | Very High | Offshore, oil & gas, severe chemical environments |
Plain Weave Stainless Steel Wire Mesh achieves filtration, screening, and separation through its precisely controlled mesh openings, wire diameter, and woven structure. The uniform square apertures allow materials of different sizes to pass through or be retained, creating an effective separation process.
During filtration, the mesh acts as a physical barrier that captures unwanted particles while allowing liquids or gases to flow through. In screening applications, the accurate aperture size separates materials according to particle dimensions. For industrial separation processes, the combination of stainless steel strength, corrosion resistance, and consistent opening accuracy ensures stable performance under demanding operating conditions.
The filtration and separation efficiency of plain weave stainless steel mesh mainly depends on:
● Mesh Count – determines the number of openings per inch and filtration precision.
● Aperture Size – controls the size of particles that can pass through.
● Wire Diameter – affects strength, durability, and open area.
● Stainless Steel Grade – determines corrosion resistance and service life.
Mesh opening size is one of the most important factors affecting the performance of Plain Weave Stainless Steel Wire Mesh. It directly determines filtration accuracy, particle retention capability, flow rate, and application suitability. A smaller aperture provides finer filtration and better particle separation, while a larger opening allows higher flow capacity with lower pressure resistance.
In plain weave stainless steel mesh, the opening size is determined by the relationship between mesh count and wire diameter. Selecting the correct aperture ensures the mesh can effectively remove unwanted particles while maintaining the required liquid or air flow.
Key Effects of Mesh Opening Size:
● Smaller openings capture finer particles.
● Larger openings are suitable for coarse screening and separation.
● Larger apertures provide higher airflow and liquid flow.
● Smaller apertures may increase filtration efficiency but reduce flow capacity.
● The correct opening size ensures accurate classification of materials by particle size.
● Fine filtration → High mesh count, smaller aperture.
● General screening → Medium mesh count.
● Heavy-duty separation → Larger aperture with thicker wire.
Choosing the correct aperture size is essential for achieving the desired filtration and separation performance of Plain Weave Stainless Steel Wire Mesh. The aperture should be selected based on the specific application requirements, including the size of particles to be retained, required flow capacity, filtration accuracy, and operating conditions.
Key Factors for Aperture Selection
1. Particle Size and Filtration Accuracy
The aperture size should be selected based on the size of particles that need to be retained or separated.
● Large Aperture → Suitable for coarse screening, grading, and bulk material separation.
● Medium Aperture → Ideal for general industrial filtration and screening applications.
● Small Aperture → Used for precision filtration and fine particle separation.
2. Flow Rate Requirements
● The opening size directly affects the flow capacity of stainless steel mesh.
● Larger openings provide higher open area and better airflow or liquid flow.
● Smaller openings improve filtration efficiency but may increase resistance.
3. Wire Diameter and Mechanical Strength
● For applications involving high pressure, heavy loads, or abrasive materials, a thicker wire diameter is recommended to improve structural strength and extend service life.
4. Operating Environment
● The working conditions should also be considered when selecting mesh specifications, including:
● Corrosive chemicals → Choose SS316 or SS316L stainless steel.
● General industrial environments → SS304 is usually sufficient.
● High-temperature applications → Consider heat-resistant stainless steel grades such as SS310S.
The opening size is mainly calculated based on the relationship between mesh count and wire diameter. In general, the higher the mesh count, the more openings there are per inch and the smaller the aperture. Conversely, a lower mesh count results in larger openings.
For standard plain weave stainless steel wire mesh, the approximate aperture can be calculated as:
Aperture (mm) = 25.4 ÷ Mesh Count − Wire Diameter (mm)
Where:
● Aperture (mm) = Opening size between wires
● Mesh Count = Number of openings per linear inch
● Wire Diameter (mm) = Diameter of the woven wire
Selecting the right Plain Weave Stainless Steel Wire Mesh starts with understanding your application requirements. The ideal specification depends on a combination of mesh count, aperture size, wire diameter, stainless steel grade, operating environment, and filtration accuracy. By matching these parameters to your working conditions, you can achieve the optimal balance between filtration efficiency, mechanical strength, corrosion resistance, service life, and overall cost.
Key Factors to Consider
Application
● industrial filtration
● food processing
● chemical processing
● pharmaceutical manufacturing
● mining
● air filtration
● water treatment
● particle screening
Material Grade
● SS304
● SS304L
● SS316
● SS316L
● based on corrosion resistance, hygiene requirements, and operating temperature.
Mesh Count
● Determine the required filtration or screening precision according to the particle size.
Aperture Size
● Choose an opening size that balances particle retention with flow capacity.
Wire Diameter
● Consider the required mechanical strength, wear resistance, and open area.
Flow Rate & Open Area
● Ensure the mesh provides sufficient airflow or liquid flow while maintaining filtration efficiency.
Operating Environment
● moisture
● chemicals
● saltwater exposure
● high temperature
● abrasive materials
Cost vs. Performance
● Select the most cost-effective specification that meets performance requirements without unnecessary over-specification.
Customization Requirements
● Confirm whether custom mesh sizes, roll widths, sheet dimensions, or fabricated filter components are required for your application.
With its stable performance and balanced advantages, plain weave stainless steel wire mesh is widely used in different filtration and screening equipment, including:
● Liquid filtration systems
● Gas filtration systems
● Powder screening equipment
● Water treatment filtration systems
● Food processing filtration equipment
● Pharmaceutical filtration systems
● Petrochemical filtration systems
● Environmental protection filtration equipment
Different mesh counts, wire diameters, and stainless steel grades can be selected according to specific operating conditions to meet different filtration accuracy and flow requirements.
Plain Weave Stainless Steel Wire Mesh can be used not only as a raw woven material but also processed into a wide variety of finished products to meet different equipment and application requirements. According to different application requirements, the most common processing forms of plain weave stainless steel wire mesh include wire mesh rolls, cut-to-size mesh sheets, filter discs, stamped and formed wire mesh, and custom cutting services.
Wire mesh rolls are the most common supply form of plain weave stainless steel wire mesh.
● Common standard widths include 0.5 m, 1.0 m, 1.2 m, and 1.5 m
● Common standard roll lengths are 10 m, 30 m, 50 m, and 100 m
Cut-to-size mesh sheets are produced by cutting wire mesh rolls into flat sheets according to customer specifications. This processing method minimizes on-site cutting while improving installation efficiency and dimensional accuracy. Mesh sheets can be manufactured in square, rectangular, or custom shapes and may include additional processing such as flattening and deburring.
Filter discs are manufactured by cutting plain weave stainless steel wire mesh into circular or other customized shapes. They can be supplied as single-layer or multi-layer structures depending on the filtration requirements. Depending on the application, filter discs can also be manufactured with stainless steel, aluminum, or copper edge frames to improve structural strength and sealing performance.
Plain weave stainless steel wire mesh can be processed through stamping, bending, deep drawing, and edge rolling to manufacture a variety of custom-shaped filtration components and industrial parts.
Typical products
● filter cylinders
● filter caps
● filter support meshes
● protective covers
● strainers
● various stamped components
To meet different installation and manufacturing requirements, plain weave stainless steel wire mesh can be supplied with a variety of custom cutting services.
Available processing options include:
● Standard length cutting
● Laser cutting
● Rectangular
● circular
● custom-shaped cutting
● Precision dimension cutting
● Deburring
In addition to the processing methods listed above, plain weave stainless steel wire mesh can also undergo various secondary fabrication processes, including:
• Spot welding and TIG welding
• Multi-layer laminated filter mesh
• Edge-framed filter discs
• Folding and edge rolling
• Filter cylinders, filter baskets, and filter elements
• Support mesh fabrication
• Custom-shaped products
These fabricated products are widely used in filtration systems, environmental protection equipment, chemical processing plants, food processing machinery, pharmaceutical equipment, and automated production lines.
In industrial filtration systems, the stability, durability, and filtration efficiency of filter materials directly affect equipment performance and product quality. Whether used for liquid filtration, gas filtration, or particle screening, plain weave stainless steel wire mesh provides consistent filtration performance and adapts well to complex industrial environments.
Due to its uniform mesh structure, excellent mechanical strength, and superior corrosion resistance, Plain Weave Stainless Steel Wire Mesh has become one of the most commonly used and reliable filtration materials in various industrial applications.
This tightly interwoven structure provides excellent dimensional stability and mechanical strength, allowing the mesh to withstand continuous operation without significant deformation or loss of aperture accuracy.
Its balanced weave also creates uniform, square mesh openings that ensure precise particle separation, reliable filtration accuracy, and consistent flow distribution across the entire mesh surface.
In addition, the smooth and even surface minimizes flow turbulence and reduces the risk of clogging, enabling liquids, gases, and fine particles to pass through the mesh more efficiently while maintaining stable filtration performance over extended periods of operation.
Industrial filtration systems often operate under challenging conditions, including high temperatures, high pressures, corrosive media, and continuous operation. These environments require filtration materials with excellent reliability and durability.
Plain weave stainless steel wire mesh can be manufactured using different stainless steel grades such as 304, 316, and 316L, offering excellent corrosion resistance, high-temperature resistance, and mechanical strength. It can maintain stable performance in acidic, alkaline, humid, and high-temperature environments.
Compared with disposable filtration materials, plain weave stainless steel wire mesh offers excellent wear resistance and corrosion resistance. With proper cleaning and maintenance, it can be reused multiple times.
Common cleaning methods include high-pressure water cleaning, ultrasonic cleaning, chemical cleaning, and steam cleaning. These methods effectively remove accumulated contaminants from the mesh surface and restore filtration performance.
Due to its long service life and low maintenance requirements, stainless steel wire mesh reduces the frequency of filter replacement, minimizes equipment downtime, and lowers overall operating costs.
Plain weave stainless steel wire mesh has become a preferred material in industrial filtration not only because of its stable filtration performance but also because it provides an excellent balance of durability, cost-effectiveness, and adaptability.
Its uniform mesh structure ensures reliable filtration results, while its reusable characteristics help reduce long-term maintenance costs. Meanwhile, its excellent corrosion resistance and mechanical strength allow it to perform reliably in various challenging working environments.
For industrial filtration systems that require long-term stable operation, plain weave stainless steel wire mesh provides an ideal balance between filtration efficiency, service life, and overall cost, making it a trusted filtration solution for many industries.
