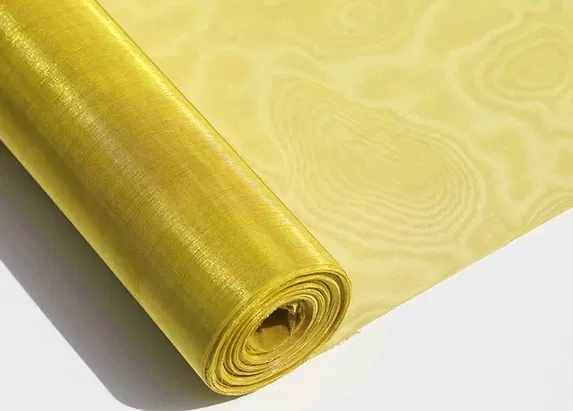

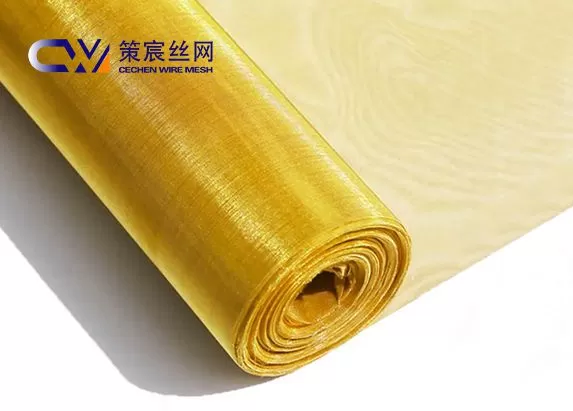

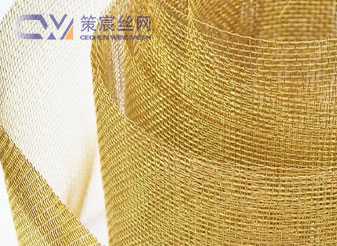

Brass Wire Mesh
Brass wire mesh, also known as brass woven wire mesh or brass metal mesh, is a high-performance woven material made from brass alloy wire, which is typically composed of copper and zinc.
It offers excellent corrosion resistance, good electrical conductivity, and strong durability. Because of these properties, it is widely used in filtration, screening, separation, electromagnetic shielding, decoration, and various industrial applications.
Hebei Cechen New Material Co., Ltd. is a professional manufacturer of brass wire mesh. We produce and supply woven brass mesh in a wide range of mesh counts, wire diameters, and roll widths, aiming to comprehensively meet the diverse requirements of various industrial and commercial applications. No matter what type of brass metal mesh you need, we can customize it precisely according to your needs. At the same time, we can also provide deep processing of brass mesh to meet your various needs.
 |  |  |
Our brass wire mesh is manufactured using premium copper-zinc alloy wire, offering excellent corrosion resistance, stable structure, and long service life. We provide a full range of specifications including H65, H70, and H80 brass materials to meet different application requirements.
Material: 65, 70, 80 Brass wire (Cu-Zn alloy)
Mesh: 2 - 200 mesh
Diameter: 0.05mm - 2mm

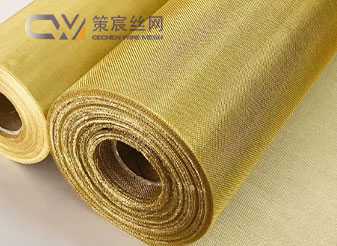

Brass Screen Mesh Roll Width: 0.5m - 2m
Brass Wire Cloth Roll Length: 10m - 100m or customized
Weaving Method: Plain Weave, Twill Weave and Dutch Weave
|  |  |

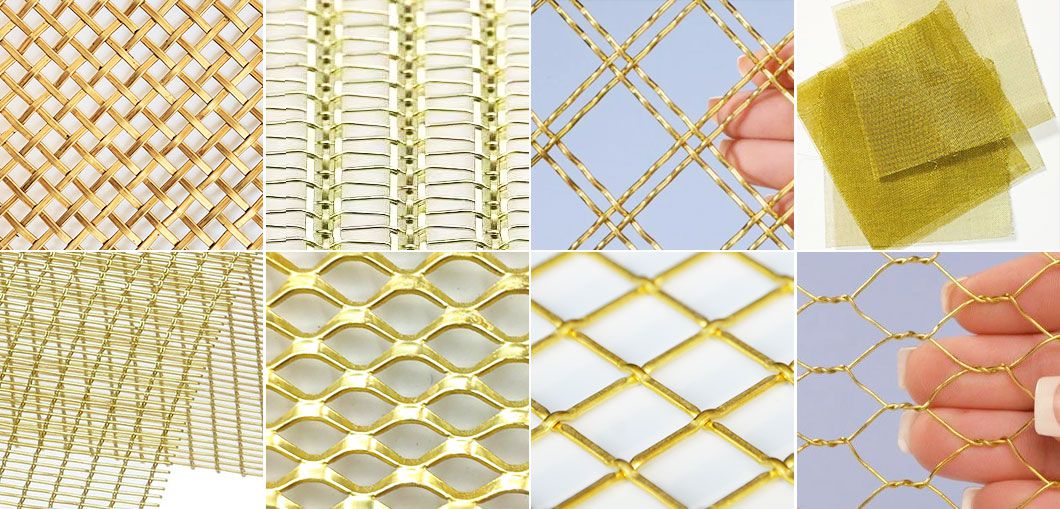

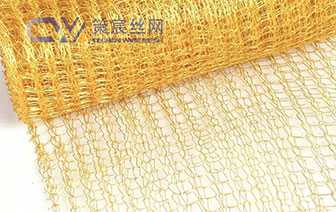

| Brass Woven Mesh | Brass Knitted Mesh | Brass Crimped Mesh |
|  |  |

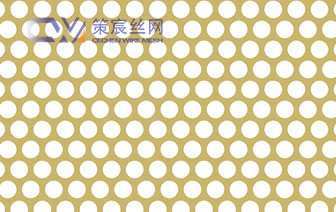

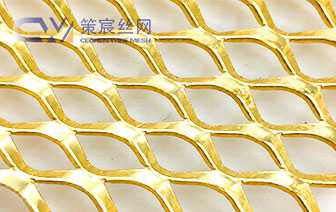

| Brass Expanded Metal Mesh | Brass Perforated Sheets | Brass Decorative Mesh |
|  |  |

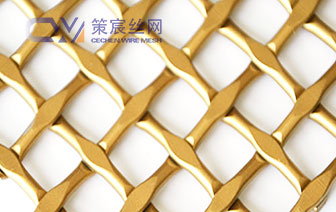

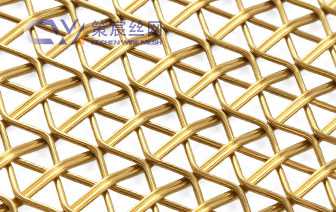

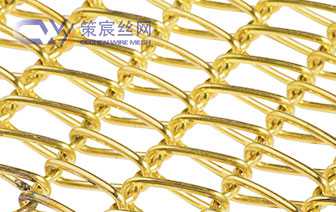

| Brass Decorative Mesh | Brass Decorative Mesh | Brass Decorative Mesh |
The zinc content in brass wire mesh plays an important role in improving its performance. It increases abrasion resistance and tensile strength, while also making the mesh harder compared to pure copper wire mesh. As a result, brass wire mesh is more suitable for demanding filtration and separation applications.
● Excellent corrosion resistance in air, water, and industrial environments
● Good electrical and thermal conductivity
● High tensile strength and wear resistance
● Non-magnetic properties
● Fine and uniform mesh structure for precise filtration
● Attractive golden appearance for decorative applications
● Long service life with stable performance
Brass Metal Mesh Composition | |||
| Grade | Copper (Cu) | Zinc (Zn) | Typical Applications |
| H65 Brass | ≈65% | ≈35% | Filtration mesh, screening mesh, protective mesh, decorative mesh, general industrial applications |
| H70 Brass | ≈70% | ≈30% | Fine woven mesh, precision filtration, industrial separation, EMI shielding mesh, engineering applications |
| H80 Brass | ≈80% | ≈20% | Decorative mesh, fine filtration, EMI/RFI shielding, architectural mesh, specialized industrial applications |
 | | | |

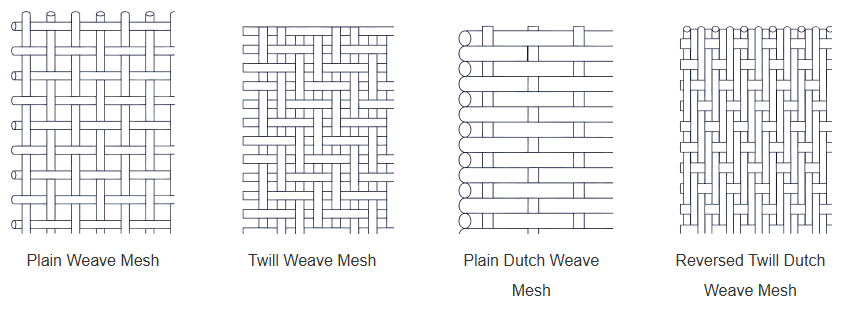

| Plain Weave | Twill Weave | Plain Dutch Weave | Twill Dutch Weave |
 |  |  |
| Brass Mesh for Filtration | Brass Mesh for Decorative | Brass Mesh for Electrical Components |
 |  |  |
| Brass Mesh for Security Screens | Brass Mesh for Gaskets and Seals | Brass Mesh for Crafts and Jewelry |
● Filtration: Brass wire mesh is used for filtering applications in industries like water filtration, oil filtration, and gas filtration due to its durability and resistance to corrosion.

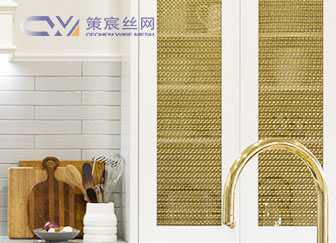

● Decorative Applications: Its golden color makes it popular in architectural and interior design, such as room dividers, partitions, and as a decorative feature in furniture.
● Electrical Components: Brass wire mesh is used in electrical screens, as it provides grounding and shielding from electromagnetic interference.
● Security Screens: It can be used in security screens for windows and doors, providing both protection and a decorative element.

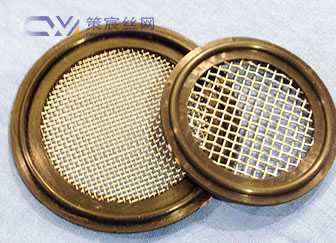

● Gaskets and Seals: In some industrial applications, brass wire mesh is used to reinforce gaskets and seals.

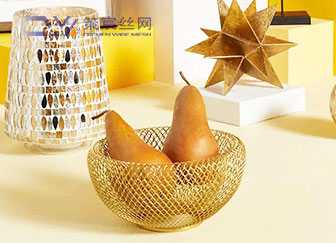

● Crafts and Jewelry: Brass wire mesh is sometimes used in jewelry-making and other arts and crafts due to its pliability and aesthetic qualities.
Our brass wire mesh is engineered for high precision, durability, and long-term industrial performance. As a professional manufacturer, we provide:
● Factory-direct supply with competitive pricing
● Strict quality control from raw material to finished product
● Stable mesh opening accuracy and uniform weaving
● Custom manufacturing based on drawings or specifications
● Fast production and global export service
● Technical support for application selection
We implement strict quality standards throughout production, and all products comply with international industrial standards.
 |  |  |

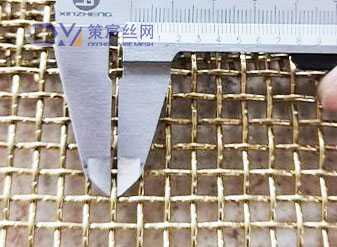

● Raw material chemical composition inspection
● Wire diameter tolerance testing
● Mesh count and opening accuracy inspection
● Tensile strength verification
● Surface flatness and weaving defect inspection
● Edge quality and roll consistency inspection
● ASTM E2016
● ISO 9044
● EN 10204 3.1
Each batch of Brass Wire Mesh undergoes strict quality control before shipment to ensure compliance with customer specifications and international industrial standards. Material Test Certificates (MTC), dimensional inspection reports, and third-party inspection services are available upon request.
1. What is the difference between brass wire mesh and copper wire mesh?
Brass wire mesh is made from a copper-zinc alloy, while copper wire mesh is made from pure copper. Brass mesh offers better strength and wear resistance, while copper mesh provides higher electrical conductivity and better corrosion resistance in certain environments.
2. Can brass wire mesh be used for high-temperature environments?
Yes, brass wire mesh can be used in moderate high-temperature environments, but it is not recommended for extreme heat conditions. For higher temperatures, stainless steel wire mesh is typically preferred.
3. How do I choose between H65, H70, and H80 brass wire mesh?
H65 is suitable for general industrial use, H70 is ideal for precision weaving and better strength requirements, and H80 is used where higher corrosion resistance and conductivity are needed.
4. Is brass wire mesh suitable for outdoor use?
Yes, brass wire mesh can be used outdoors. However, long-term exposure to humidity and rain may cause surface oxidation, which forms a protective patina layer.
5. What is the standard roll size of brass wire mesh?
Standard roll sizes usually range from 1m x 30m or 1.2m x 30m, but custom sizes can be produced based on customer requirements.
6. Can brass wire mesh be customized in terms of mesh count and wire diameter?
Yes, brass wire mesh can be fully customized, including mesh count, wire diameter, weave type, roll width, and material grade.
7. Is brass wire mesh magnetic?
No, brass wire mesh is non-magnetic due to its copper-zinc alloy composition.
8. How is brass wire mesh packaged for export?
It is typically wrapped with waterproof paper, plastic film, and packed in wooden cases or pallets to ensure safe international shipping.
