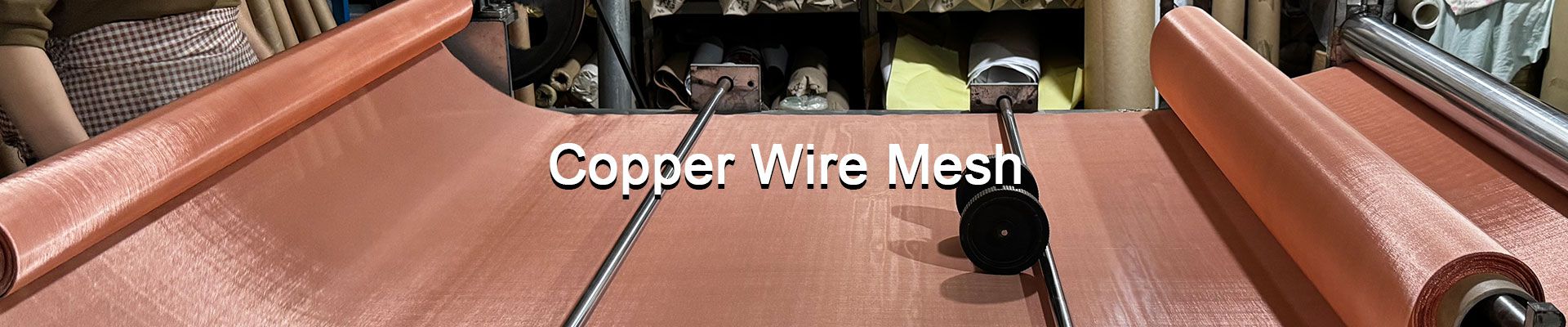

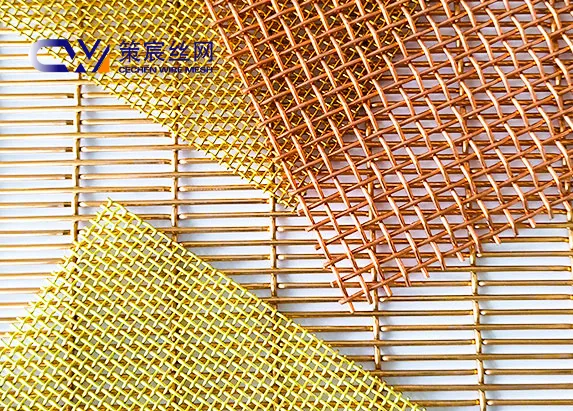

Copper Wire Mesh
Copper mesh is a mesh product made of high-quality copper wire through weaving, welding and other processes. Copper mesh has a variety of specifications and weaving methods, the most common ones are plain weave, twill weave, etc.
Copper wire mesh is widely used in EMI/RFI shielding, industrial filtration, battery technology, architectural decoration, and conductive applications due to its excellent electrical conductivity, thermal conductivity, corrosion resistance, and flexibility.
Our copper woven mesh products are manufactured using high-purity copper wire and strict quality control systems to ensure stable conductivity, precise opening accuracy, and long service life. As a professional copper wire mesh manufacturer and supplier in China, Hebei Cechen New Material Co., Ltd. provides high-precision woven copper mesh in rolls, sheets, discs, and custom fabricated forms. We support customized mesh count, wire diameter, opening size, width, and surface treatment.
● Material: Red Copper Mesh / Brass Mesh / Phosphor Bronze Mesh
● Copper Purity: ≥99.9%
● Weave Type: Plain Weave, Twill Weave, Dutch Weave
● Mesh Count: 1 Mesh – 600 Mesh
● Wire Diameter: 0.016mm – 5.0mm
● Opening Size: 0.03mm – 20mm
● Roll Width: 0.5m – 2m
● Roll Length: 10m – 100m
● Surface Treatment: Natural, Tin Plated, Nickel Plated
● Shape: Roll, Sheet, Disc, Custom Cutting
● Feature: Conductive, Corrosion Resistant, Flexible
● Standard: ASTM, DIN, ISO
● MOQ: Small Quantity Supported
Hebei Cechen New Material Co., Ltd. supports customization of various specifications of copper wire mesh to suit any application scenario. Contact us now and we will reply you immediately after receiving your message.

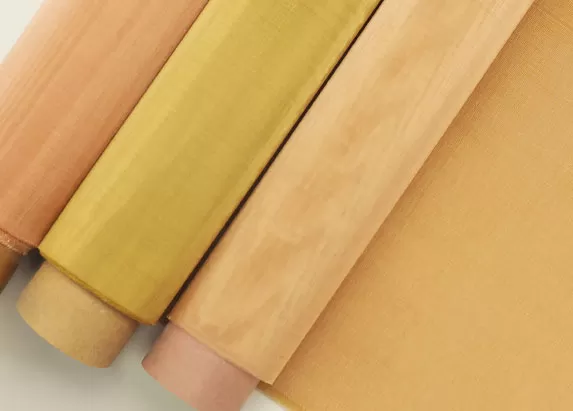

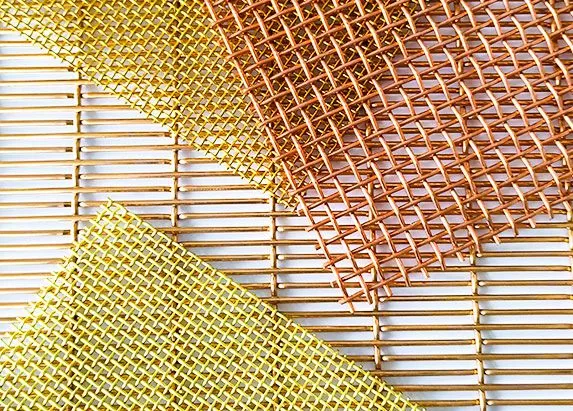

Copper Mesh is made from pure copper or high-copper alloys. Brass mesh, copper mesh, and phosphor bronze mesh are all types of metal mesh made from copper-based alloys. Each has unique properties and applications due to their specific compositions.
Red Copper Mesh vs Brass Mesh vs Phosphor Bronze Mesh Material Property Comparison | ||||
| Material | Conductivity | Corrosion Resistance | Strength | Main Application |
| Red Copper Mesh | Excellent | Good | Medium | EMI Shielding, Conductive Applications |
| Brass Mesh | Good | Good | Higher | Filtration, Decorative |
| Phosphor Bronze Mesh | Medium | Excellent | High | Precision Filtration, Industrial Screening |
 |  |  |

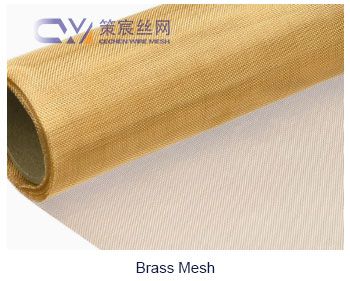

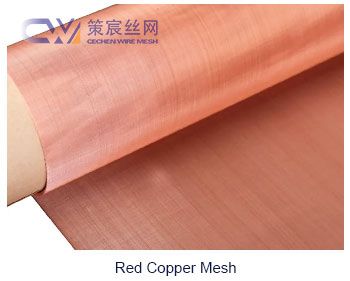

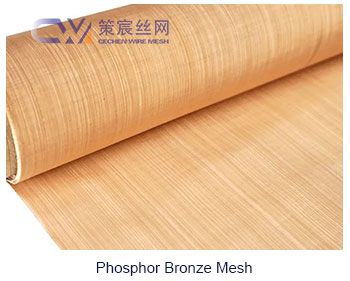

| Red Copper Mesh | Brass Mesh | Phosphor Bronze Mesh |
Red Copper Mesh vs Brass Mesh vs Phosphor Bronze Mesh Material Composition Comparison | ||||
| Material | Copper (Cu) | Zinc (Zn) | Tin (Sn) | Phosphorus (P) |
| Red Copper Mesh | ≥99.9% | ≤0.1% | — | — |
| Brass Mesh | 60%–70% | 30%–40% | — | — |
| Phosphor Bronze Mesh | 85%–95% | — | 4%–10% | 0.03%–0.35% |

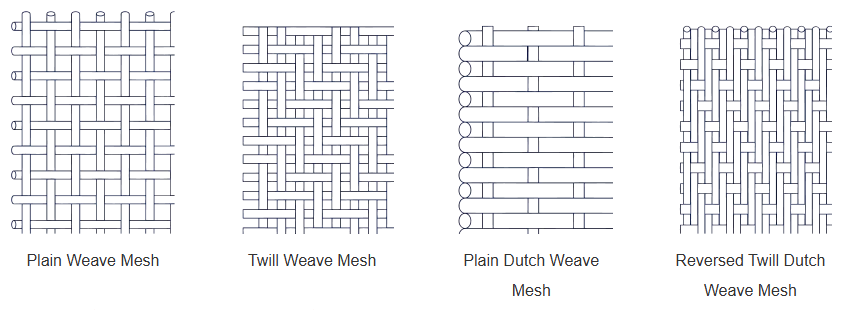

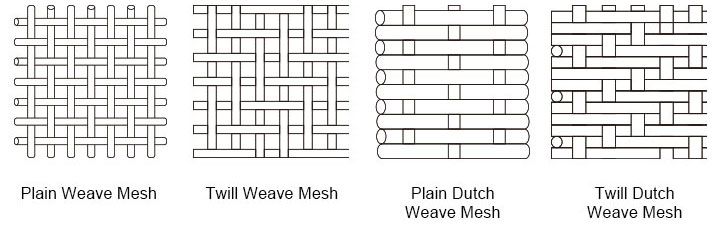

Copper Wire Mesh Available Weave Types
● Plain weave, twill weave, Dutch weave. The weaving method of the copper wire mesh affects its structural strength and filtering performance.
 |  |  |  |
| Plain Weave | Twill Weave | Plain Dutch Weave | Twill Dutch Weave |
Most common Suitable for filtering and EMI shielding | Higher strength Suitable for ultrafine filtration | High-precision filtration Suitable for liquid filtration | |

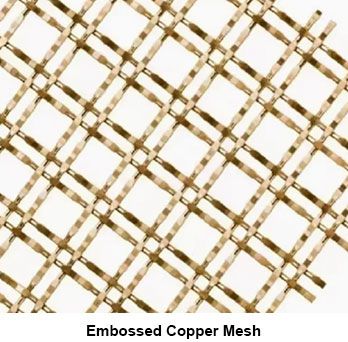

We are a professional copper wire mesh manufacturer and supplier in China, specializing in high-quality copper wire mesh products. Our product range includes pure copper wire mesh, decorative copper wire mesh, woven copper wire mesh, stretched copper wire mesh, perforated copper wire mesh, embossed copper wire mesh, copper wire mesh rolls, and copper wire mesh sheets.
We offer a full range of specifications, covering various mesh counts, wire diameters, mesh sizes, and specifications, and can customize products to meet specific project needs. Whether you require standard specifications or fully customized solutions, with our advanced technology and extensive production experience, we provide reliable copper wire mesh solutions to customers worldwide.
 |  |  |

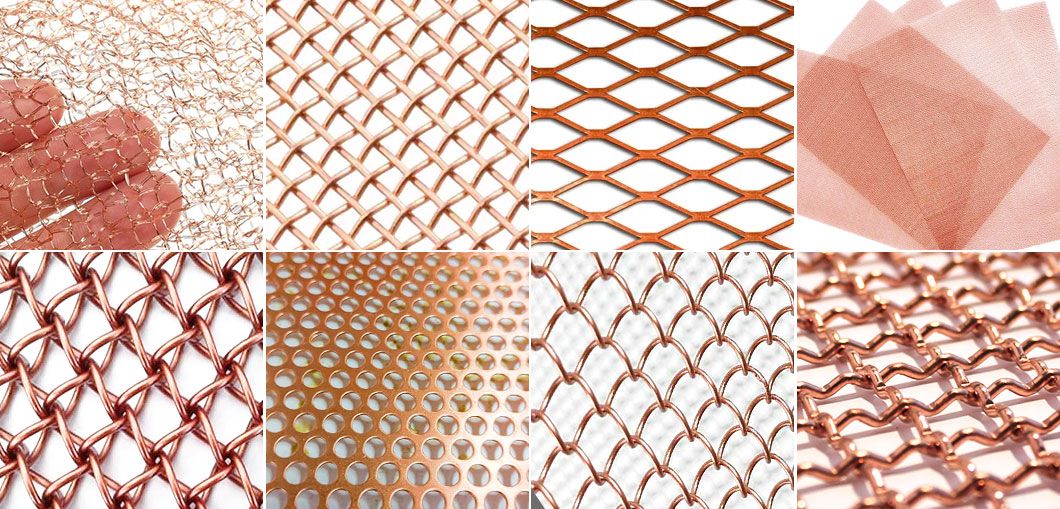

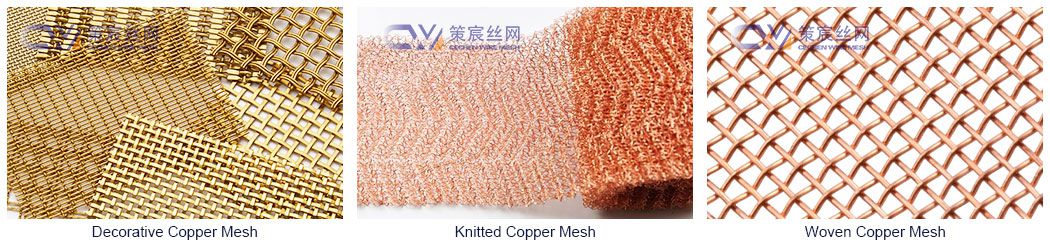

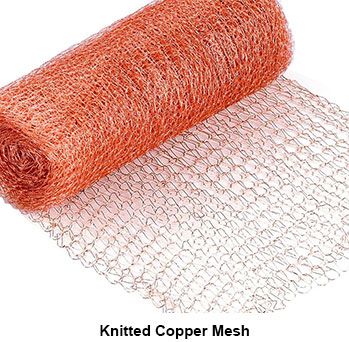

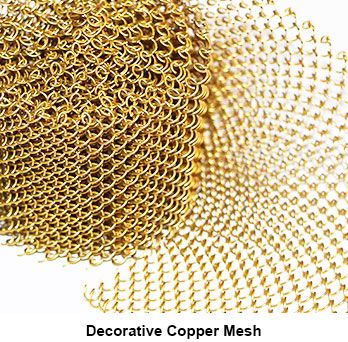

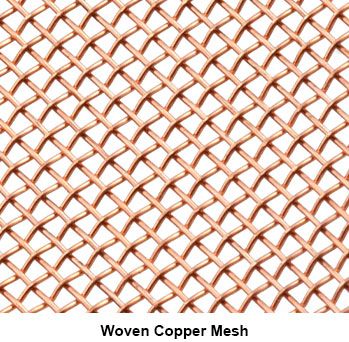

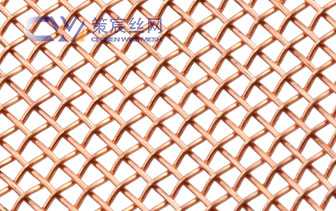

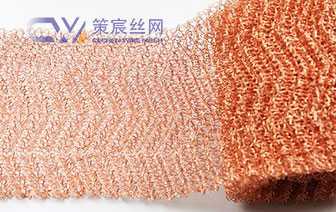

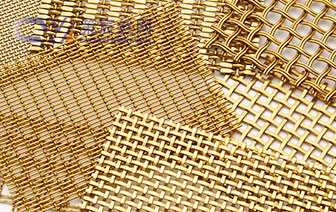

| Woven Copper Mesh | Knitted Copper Mesh | Decorative Copper Mesh |
 |  |  |

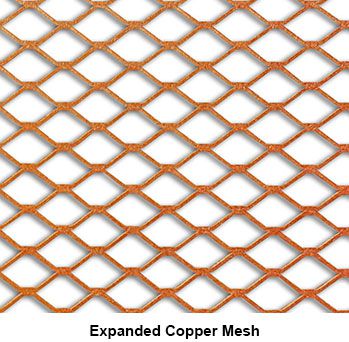

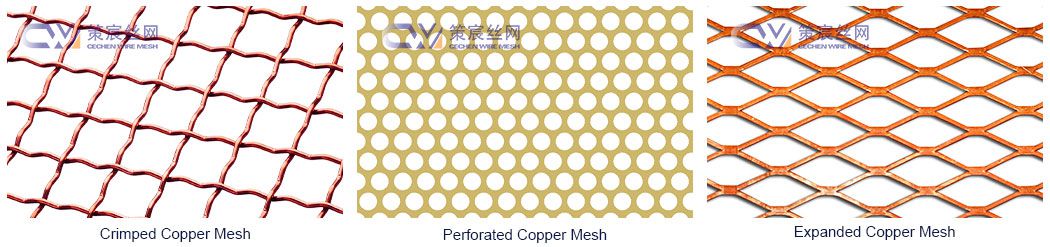

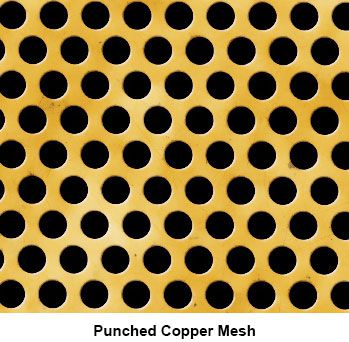

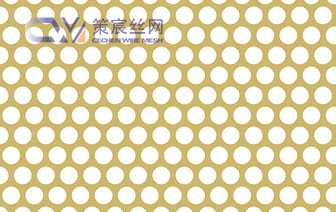

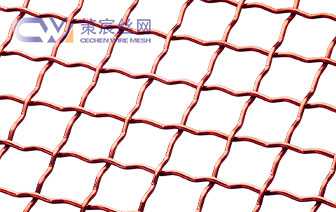

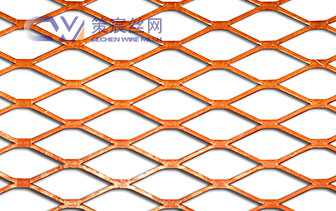

| Crimped Copper Mesh | Perforated Copper Mesh | Expanded Copper Mesh |
 |  |  |

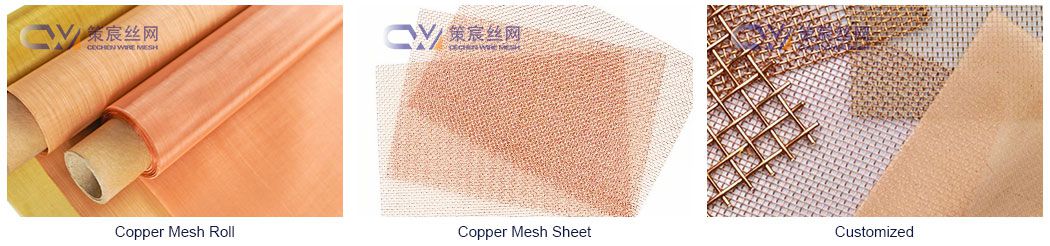

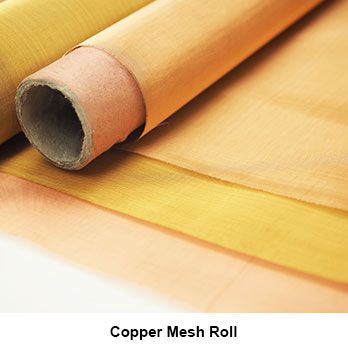

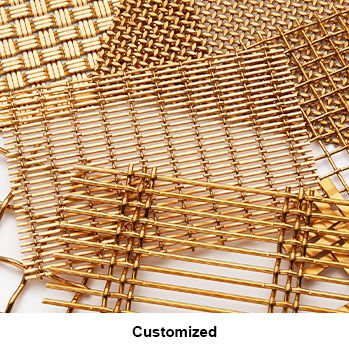

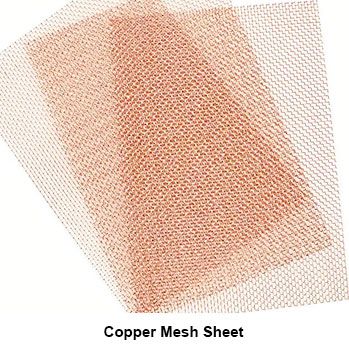

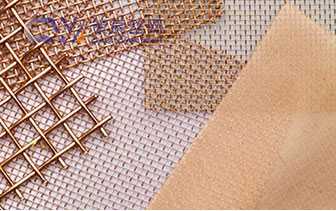

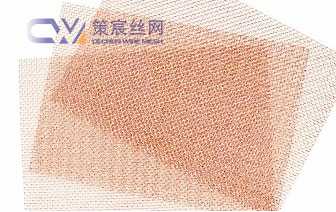

| Copper Mesh Roll | Copper Mesh Sheet | Customized Copper Mesh |
● Direct Manufacturer, Competitive Factory Price
● Strict Quality Control System
● Strong Customization Capability
● Stable Production Capacity & On-Time Delivery
● Wide Range of Stainless Steel Mesh Products
● Export Experience & International Standards
● Professional Technical Support
● Reliable Packaging & Shipping Solutions
● Long-Term Stable Supply Partner
● Bulk Order Advantages: Competitive pricing and fast delivery times for wholesale and bulk purchases.
Our copper wire mesh products are manufactured according to international ASTM, ISO, and DIN standards to ensure dimensional accuracy, mesh consistency, and reliable performance.
● ASTM E2016
● ASTM E437
● ISO 9044
● ISO 4783
● DIN 4192.
● High conductivity: Copper has the best conductivity of all metals and is suitable for electrical applications.
● Good corrosion resistance: Especially in dry environments, copper mesh has good oxidation resistance.
● Excellent processability: Copper wire mesh is easy to weld and weave, and can be customized in different sizes and shapes according to needs.
● Aesthetics: Copper has a beautiful color and a certain decorativeness, and is widely used in art and architecture.
Copper wire mesh is widely used in EMI and RFI shielding applications because of its superior electrical conductivity. It effectively blocks electromagnetic interference while maintaining ventilation and visibility, making it ideal for electronic equipment, communication systems, laboratories, and military facilities.

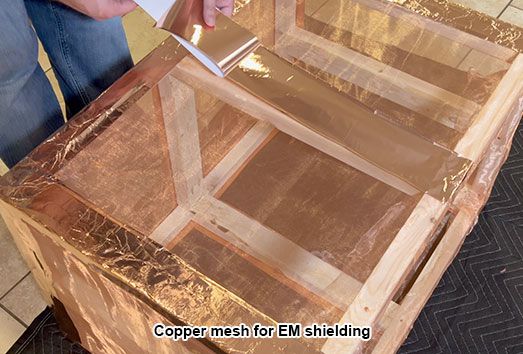

High-conductivity copper mesh is commonly used in Faraday cage construction to create electromagnetic shielding enclosures that protect sensitive equipment from external electromagnetic fields.
Copper woven mesh is increasingly used in lithium-ion battery production due to its excellent conductivity, dimensional stability, and corrosion resistance.
Copper mesh can be used as conductive support structures and filtration components in hydrogen energy and fuel cell systems.
 |  |

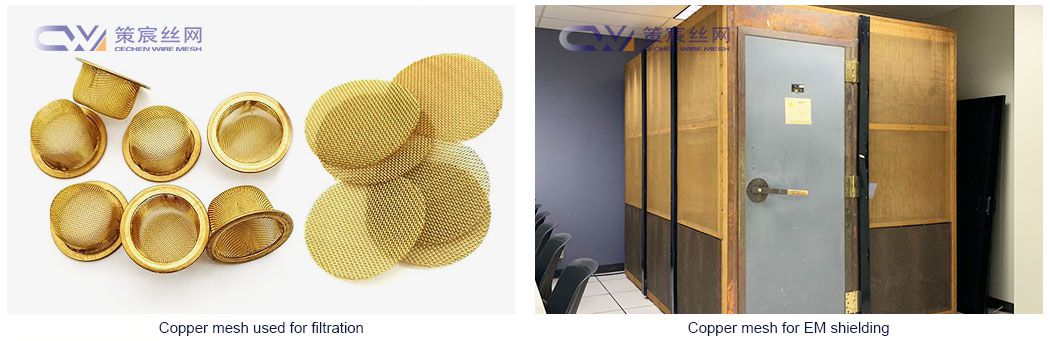

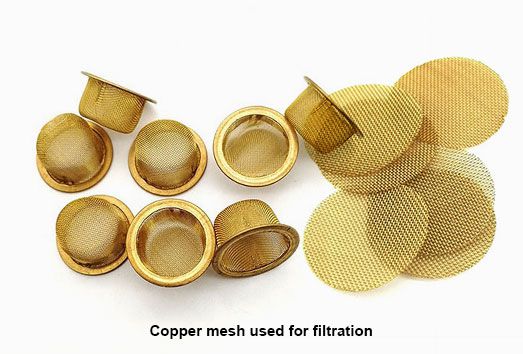

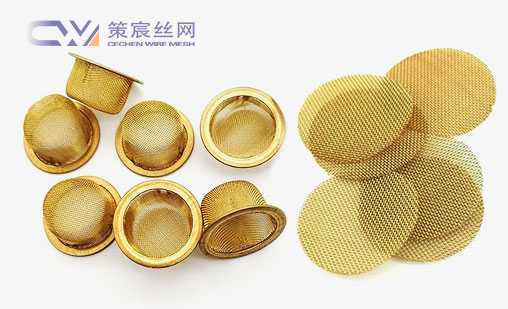

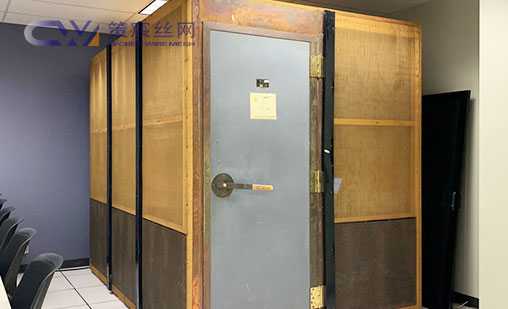

| copper mesh for faraday cage | Copper mesh for filtration |
 |  |

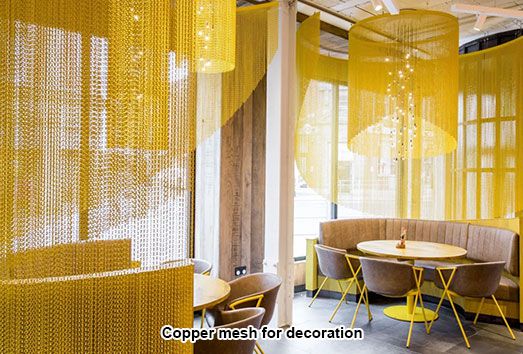

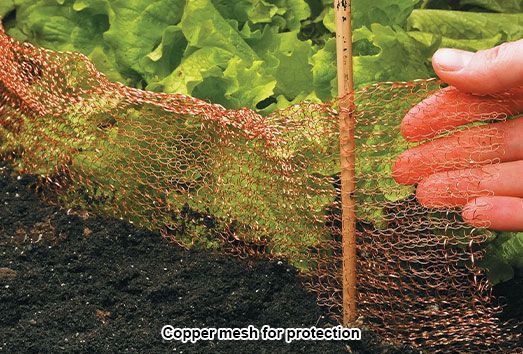

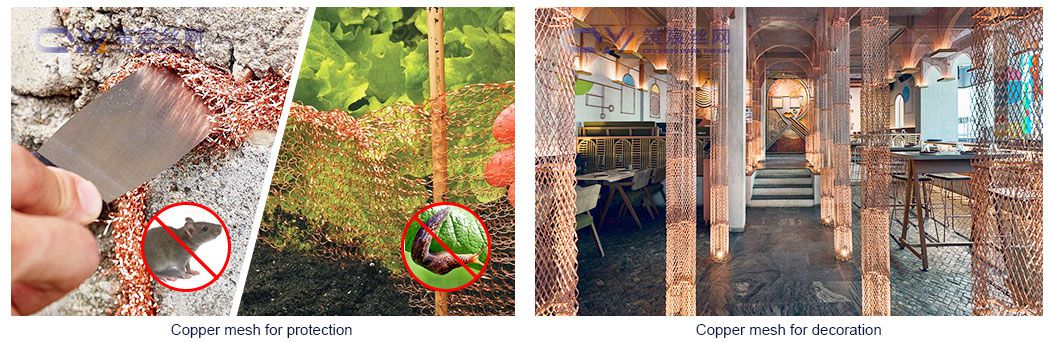

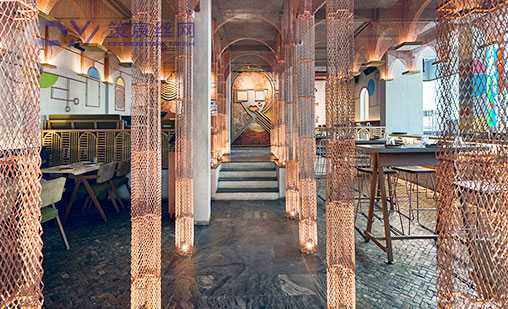

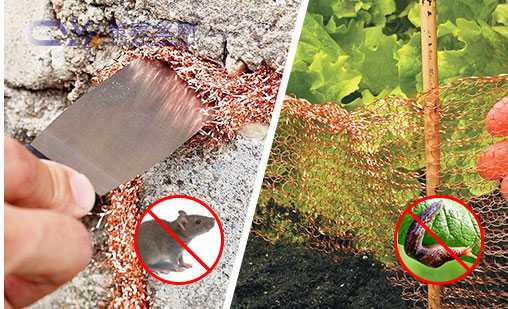

| Copper wire mesh used to control slugs and rodents | Copper mesh for decoration |
As a professional copper wire mesh manufacturer in China, we leverage high cost-performance and stable supply capabilities as our core competitiveness to provide a reliable procurement experience for global customers. We adhere to a factory-direct supply model to ensure highly competitive pricing and rely on ample inventory and fast delivery capabilities to meet urgent needs. All products are certified by SGS and ISO 9001 quality systems, ensuring stable and traceable quality.
We Support
● Custom mesh specifications
● OEM & ODM production
● Custom cutting and fabrication
● Small trial orders
● Bulk industrial orders
● Fast sample production
● Export packaging solutions
We support low minimum order quantities and free testing samples to facilitate product verification for our customers. Furthermore, we promise a rapid response within 12 hours and offer flexible payment methods, including T/T (30-50% prepayment), L/C, T/T+L/C, and PayPal, reducing procurement risks and communication costs throughout the process and providing customers with efficient and reliable copper wire mesh supply services.
 |  |  |

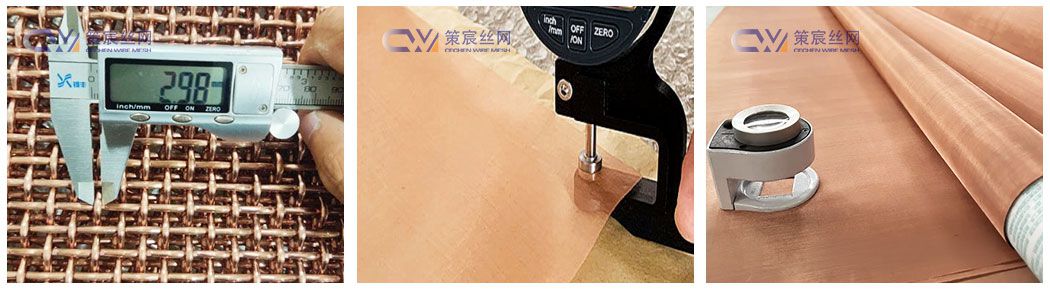

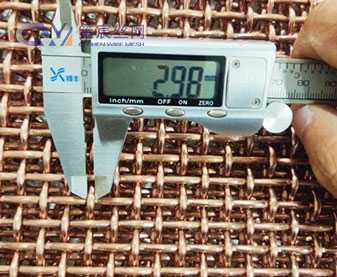

All copper wire mesh products are manufactured under strict ISO quality management systems. Each batch undergoes wire diameter testing, mesh opening inspection, surface quality inspection, and weaving accuracy verification to ensure stable product performance.
Is Copper Mesh Suitable for Grounding Systems?
Yes. Copper mesh is widely used in grounding and earthing systems because of its excellent electrical conductivity and low resistance. It can effectively dissipate electrical currents and reduce the risk of electrical faults. Copper mesh is commonly used in substations, lightning protection systems, telecommunications facilities, and electrical infrastructure projects where reliable grounding performance is required.
What Is the Most Popular Mesh Size for EMI Shielding?
The most commonly used copper mesh sizes for EMI and RFI shielding applications range from 40 mesh to 100 mesh. The ideal mesh size depends on the shielding frequency, airflow requirements, and installation environment. Fine copper mesh generally provides better shielding effectiveness against high-frequency electromagnetic interference while still allowing ventilation and visibility.
Can You Provide Custom-Cut Copper Mesh Sheets?
Yes. We offer custom fabrication services for copper wire mesh, including custom-cut sheets, rolls, discs, filter elements, screen packs, and fabricated components. Customers can specify mesh count, wire diameter, opening size, sheet dimensions, and edge treatment according to their project requirements.
What Is the Difference Between Copper Mesh and Tinned Copper Mesh?
Copper mesh is manufactured from pure copper wire and provides the highest electrical and thermal conductivity. Tinned copper mesh is coated with a thin layer of tin, which improves oxidation resistance, corrosion resistance, and solderability.
