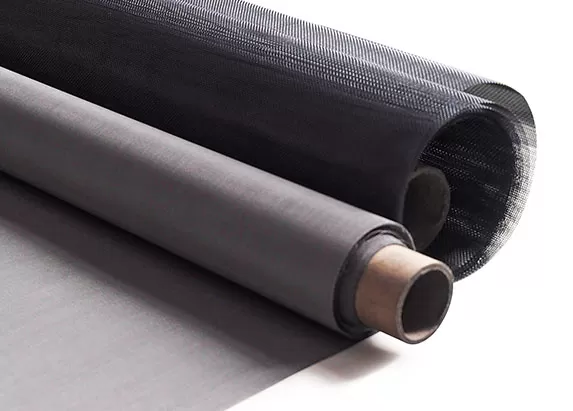

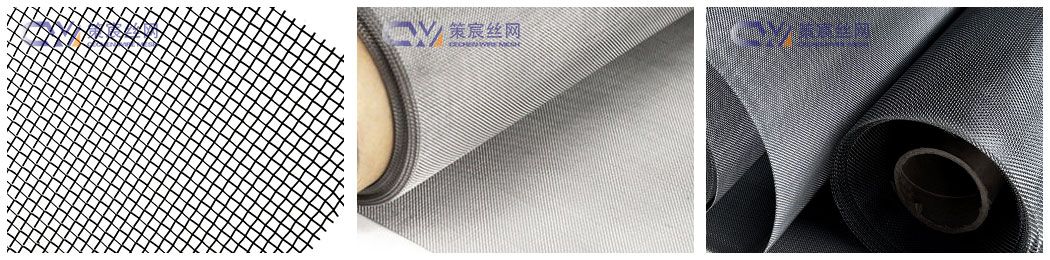

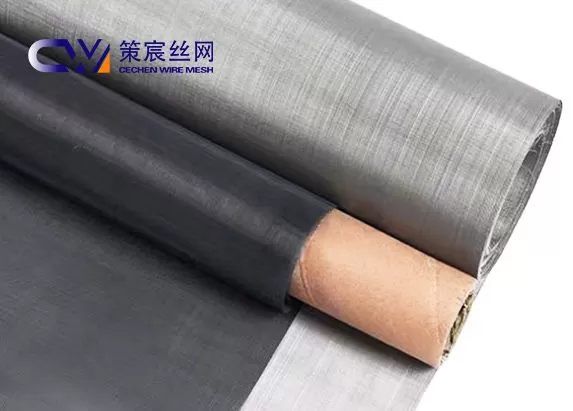

Titanium Wire Mesh
Titanium wire mesh is a high-performance metal mesh made of high-purity titanium (such as TA1, TA2, GR1, GR2). It has the characteristics of light weight, high strength, non-magnetic, non-toxic and excellent biocompatibility.
According to different processes, it can be divided into titanium woven mesh and titanium welded mesh, which are widely used in petrochemical filtration, aerospace equipment, marine engineering, electroplating systems, environmental protection facilities and medical equipment.
As a professional titanium wire mesh manufacturer, we ensure superior corrosion resistance in every mesh we produce. This durability is attributed to a dense, self-forming oxide layer on the titanium surface, which effectively protects against aggressive media such as seawater, wet chlorine, chlorine-based solutions, nitric acid, chromic acid, and various organic compounds. This natural barrier allows our titanium mesh products to maintain long-term stability and reliability even under harsh environmental conditions.
Cechen Wire Mesh supports customization of various specifications of titanium wire mesh to suit any application scenario. Contact us now and we will reply you immediately after receiving your message.

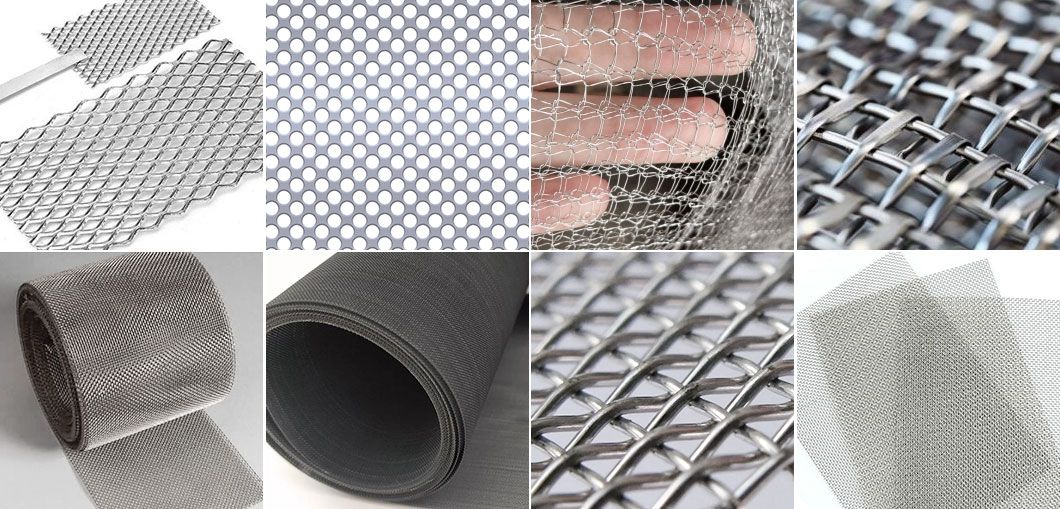

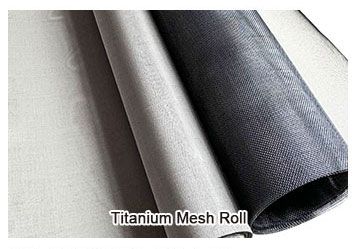

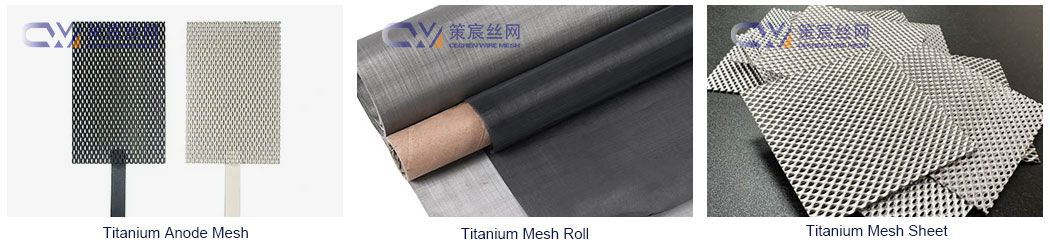

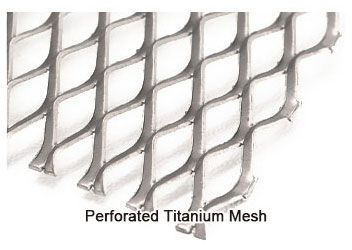

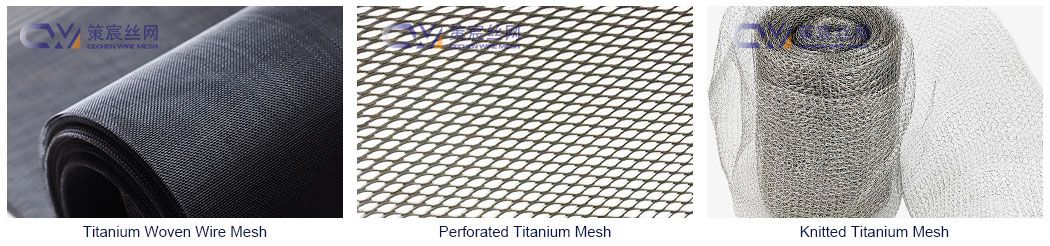

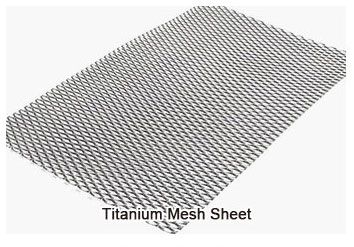

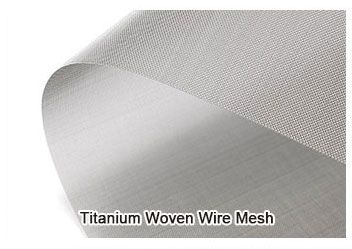

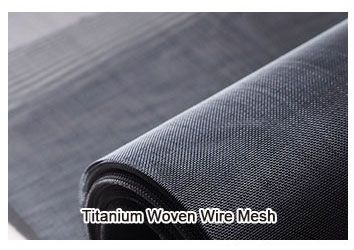

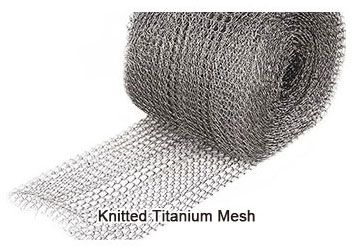

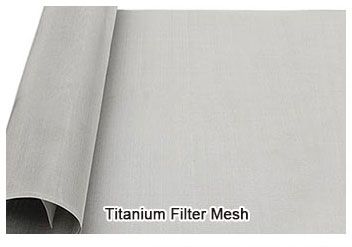

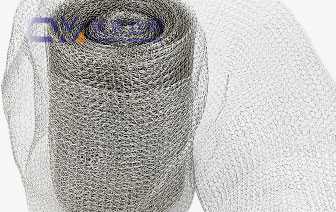

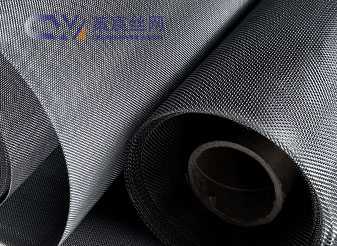

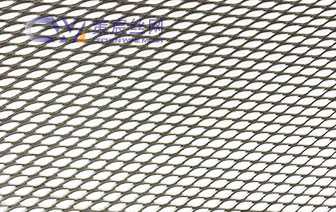

We focus on the production and supply of various titanium wire mesh products. Our products are diverse and can meet the needs of filtration, separation, conductivity, protection and structural support under different working conditions. Our main products include titanium woven mesh, perforated titanium mesh, knitted titanium mesh, anode titanium mesh, filter titanium mesh, titanium mesh sheet and titanium mesh roll, which are widely used in chemical, energy, aerospace, medical, electronics and environmental protection industries.

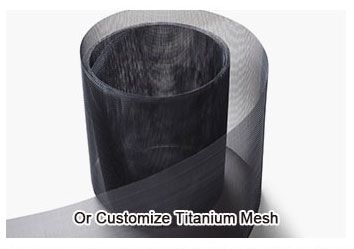

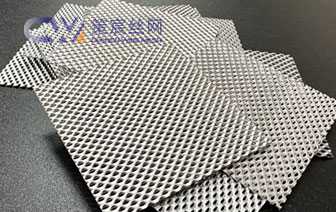

We also support customized services and can provide personalized titanium mesh solutions according to customers' specific requirements for size, mesh, structure and purpose to meet the needs of diverse industrial applications.
● Material grade: TA1, TA2 GR1, GR2,

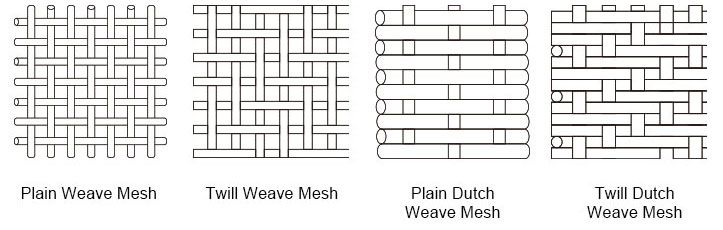

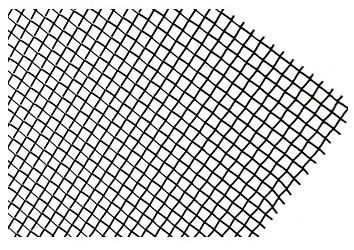

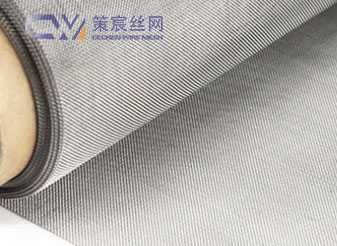

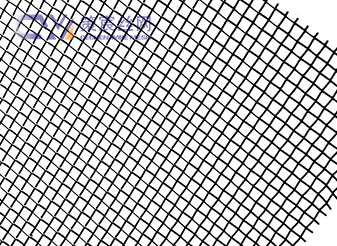

● Weaving type: plain weave, twill weave and dutch weave.
● Wire diameter: 0.002" - 0.035".
● Mesh size: 1 mesh - 635 mesh.
● Color: black or bright.
| Titanium Woven Wire Mesh Specifications | |||||
| Mesh count | Wire Dia | Width of Opening | Open area | ||
| Inches | mm | Inches | mm | % | |
| 1X1 | 0.157 | 4 | 0.84 | 21.4 | 71 |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
| 8X8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 |
| 10X10 | 0.039 | 1 | 0.06 | 1.54 | 36 |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
| 30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
| 50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 120X120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 |
| 150X150 | 0.026 | 0.066 | 0.0041 | 0.1041 | 37.4 |
| 180X180 | 0.023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
| 250X250 | 0.0016 | 0.406 | 0.0024 | 0.061 | 36 |
| 300X300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 |
| 400X400 | 0.001 | 0.0254 | 0.0015 | 0.037 | 36 |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 |
| 635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 |
Titanium Wire Mesh Features
● Excellent Corrosion Resistance
● Good thermal property
● High temperature resistance
● High Strength-to-Weight Ratio
● Outstanding High-Temperature Stability
● Biocompatibility and Non-Toxicity
● Electrical Conductivity with Chemical Inertness
● Long Service Life and Durability
● Reliable in Various Environments
● Flexible Customization Options
Titanium wire mesh is known for its excellent corrosion resistance, high strength, light weight and excellent biocompatibility, and has become the material of choice for many key industries. Titanium wire mesh can still operate reliably under extreme conditions, whether it is precision filtration or structural durability, titanium wire mesh can provide consistent and long-lasting performance.

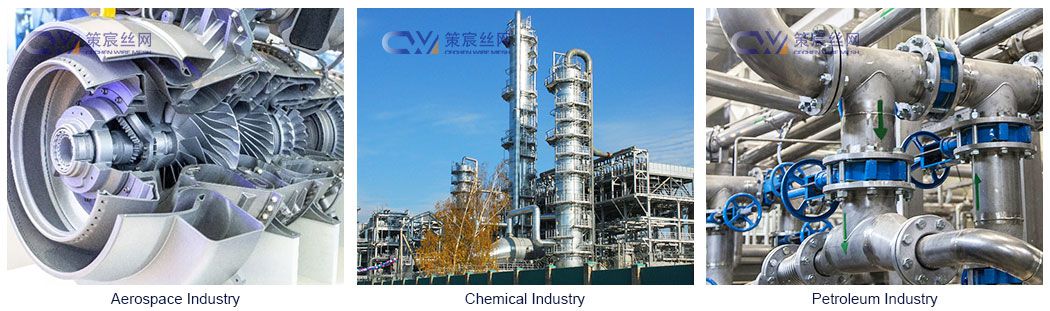

Applicable industries:
● Aerospace Industry
● Electronics and Energy Industry
● Shipbuilding
● Military industry

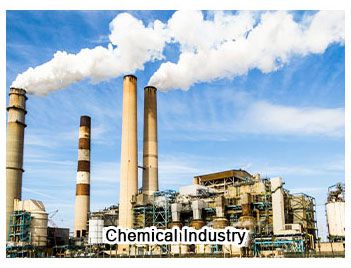

● Chemical industry
● Mechanical industry

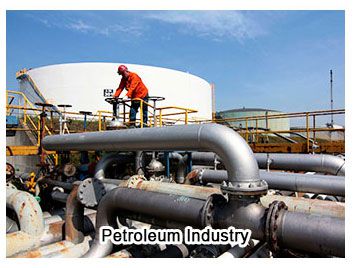

● Petroleum
● Pharmaceutics
● Medicine
● Satellite
● Environmental industry
● Electroplating industry
● Battery industry
● Surgery

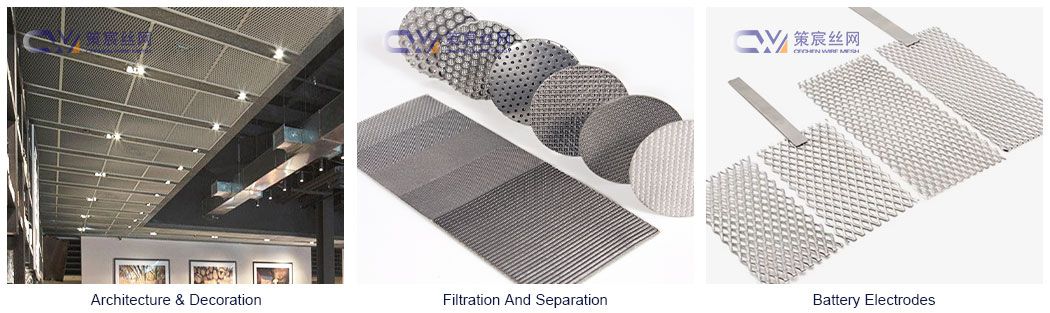

Specific use:

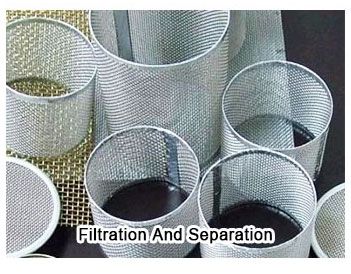

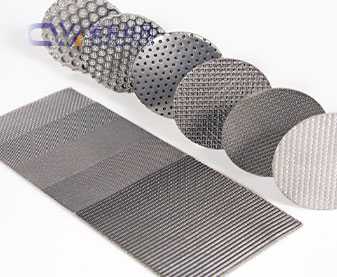

● Filtration and Separation
● Electrolysis Processes

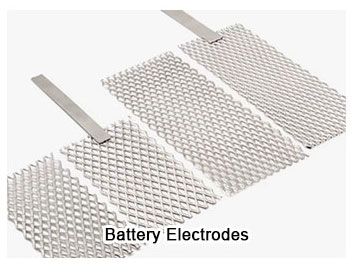

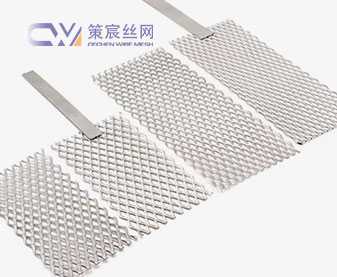

● Battery Electrodes
● Solar Panels
● Electromagnetic shielding
● Airframe and Engine Components
● Fuel and Hydraulic Systems
● Desalination Plants
● Wastewater Treatment
● Air Filtration
● Decorative Applications
● Heat Exchangers

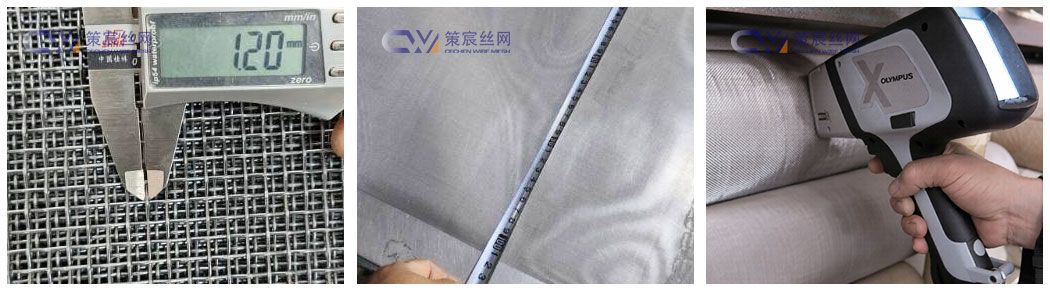

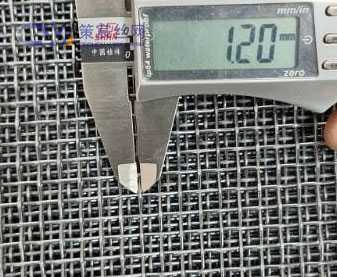

As a titanium wire mesh manufacturer, Cechen always adheres to quality-based and customer-oriented, and is committed to providing titanium wire mesh products with stable performance and precise structure for various industries. We have a complete production line and mature manufacturing process. From titanium wire drawing to weaving into mesh, each process is strictly controlled by experienced technicians.
The company has passed ISO 9001 quality management system certification, the production process is standardized and orderly, and the product quality is traceable and verifiable. In the selection of raw materials, we strictly use industrial-grade titanium materials such as TA1, TA2, GR1, GR2 that meet the standards to ensure that the products have excellent corrosion resistance, strength and service life.
● Very Competitive Price
● Adequate Stock & Fast Delivery
● Manufacturer/Factory Direct Supply
● With SGS/ISO 9001 Certification
● Low Minimum Order Quantity
● Free Test Samples
● Quick Response Within 12 Hours
● Payment Terms: T/T(30-50% in advance), L/C, T/T+L/C, Paypal
