Petrochemical Filter Screen/Oil Industry Filtration Mesh
In the process of oil and gas extraction, refining and transportation, the filtration system plays a decisive role in equipment life, oil quality and production efficiency. Stainless steel wire mesh has become the core material for oil industry filtration due to its high strength, corrosion resistance, high temperature and high pressure resistance. This article will explore in depth the application, technical advantages and industry solutions of stainless steel wire mesh in oil filtration.
The Filtration Environment of the Oil Industry is Extremely Harsh, and it Mainly Faces the Following Challenges
● Highly corrosive media: Crude oil contains corrosive components such as hydrogen sulfide (H₂S), carbon dioxide (CO₂), and brine
● High temperature and high pressure: Deep well screens need to withstand high temperatures above 200°C and pressures above 50MPa
● Particle impurities: Drilling fluid, sand and gravel, catalyst particles, etc. are prone to blockage
● Mechanical wear: High-speed fluid scouring can easily cause filter damage
Stainless steel wire mesh has become the preferred material for oil industry filtration systems due to its advantages such as corrosion resistance, high strength and long life.

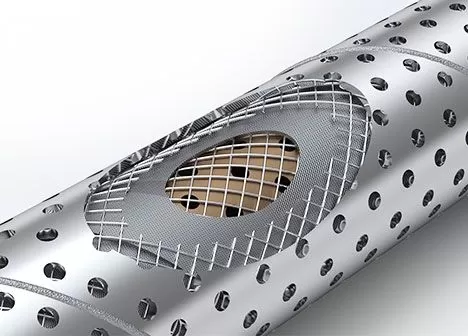

Sand Control Screen Mesh

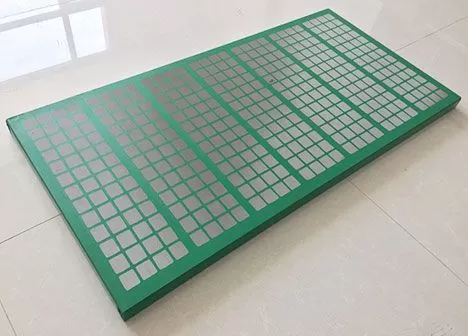

Shale Shaker Screen Mesh
Catalyst Filter Mesh

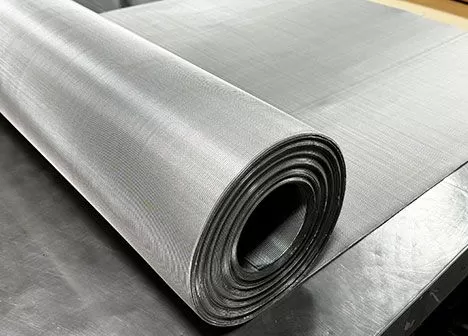

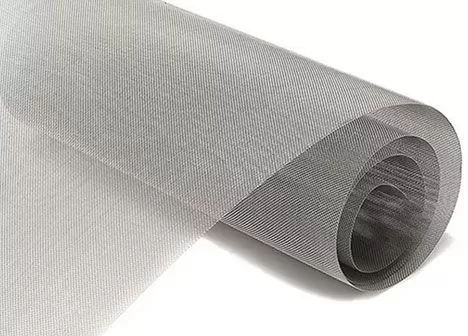

Oil Fine Filter Mesh

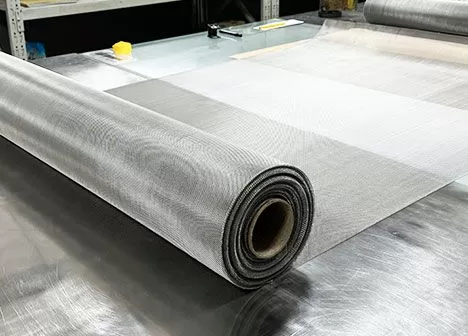

Pipeline Filter Mesh (Y-type/T-type filter)

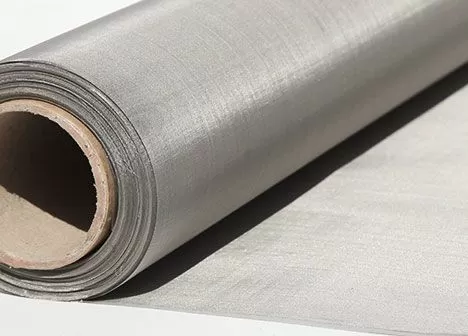

Fuel Nozzle Filter Mesh
Technical Advantages of Stainless Steel Wire Mesh
● Corrosion resistance: 316L material can resist H₂S, CO₂, and salt water corrosion, and its life is 5~10 times longer than ordinary carbon steel
● High temperature and high pressure resistance: It can withstand up to 850℃ high temperature and 80MPa pressure, suitable for deep wells and supercritical conditions
● High strength: Twill/plain dense weave, tensile strength of more than 1000MPa, strong deformation resistance
● Easy to clean: The surface is smooth, not easy to scale, and can be rinsed repeatedly.
● Customization: Different weaving methods (plain, twill, mat type), pore size (1μm~10mm) and shapes are available.
How to Choose a Suitable Stainless Steel Wire Mesh for Oil Filtration?
Select the material according to the corrosion environment
● General environment: 304 stainless steel
● High chloride ion/acid environment: 316L, 2205 duplex steel
● Ultra-high temperature environment: 310S, Inconel alloy
Select the weaving method according to the filtration accuracy
● Coarse filtration (>100μm): plain weave
● Precise filtration (1~100μm): dense mesh/sintered mesh
● Anti-clogging requirements: multi-layer composite structure
Select the structure according to pressure
● Low pressure: single-layer woven mesh
● High pressure: sintered metal mesh + support frame
Stainless steel wire mesh has become an ideal choice for oil industry filtration systems due to its excellent corrosion resistance, high temperature and high pressure resistance and long life. Whether it is oil extraction, refining or transportation, the reasonable selection of stainless steel filter mesh can greatly improve production efficiency and reduce maintenance costs.
We provide professional selection support, customized production and strict quality inspection to ensure that your filtration solution is foolproof!
Industry
Contact Us
Hello, welcome to submit any questions and suggestions. We will reply to you as soon as possible. Thank you for your support and help.
Related Products

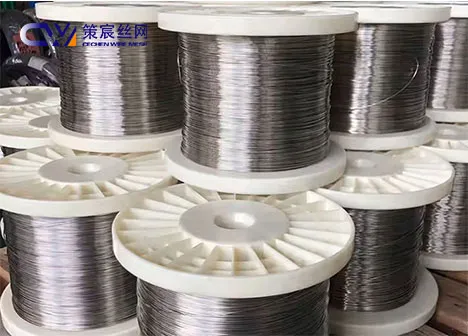

Our Stainless Steel Wire is designed specifically for use in the production of poly wire, which is commonly used in electric fencing for livestock, agriculture, and other containment systems. Manufactured with high-grade stainless steel, our wire offers superior conductivity, durability, and corrosion resistance in all types of environments.
